Datasheet> All Categories > logic> logic> AM2814PC

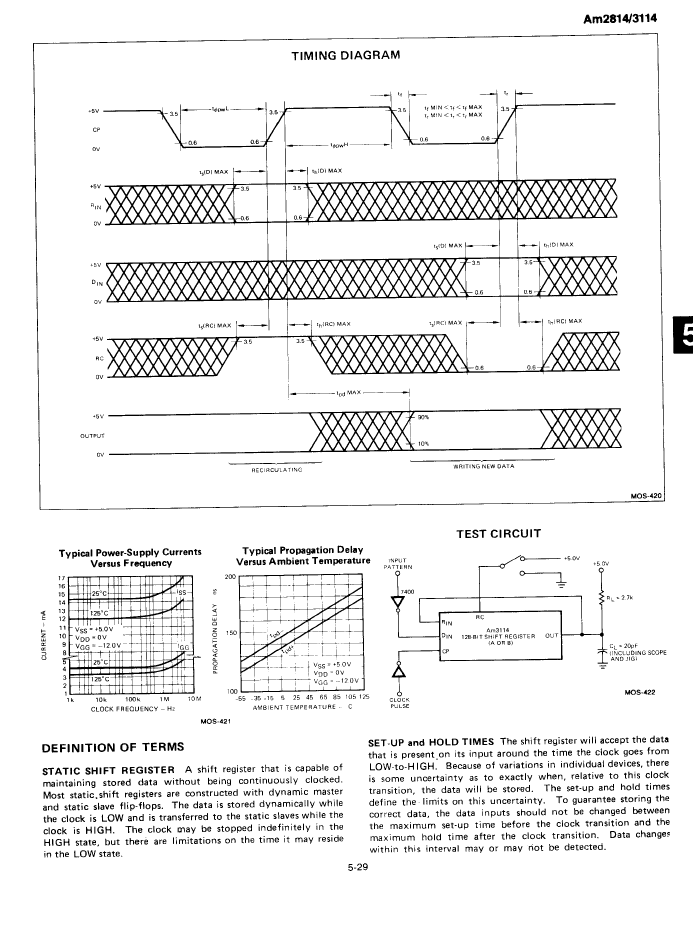

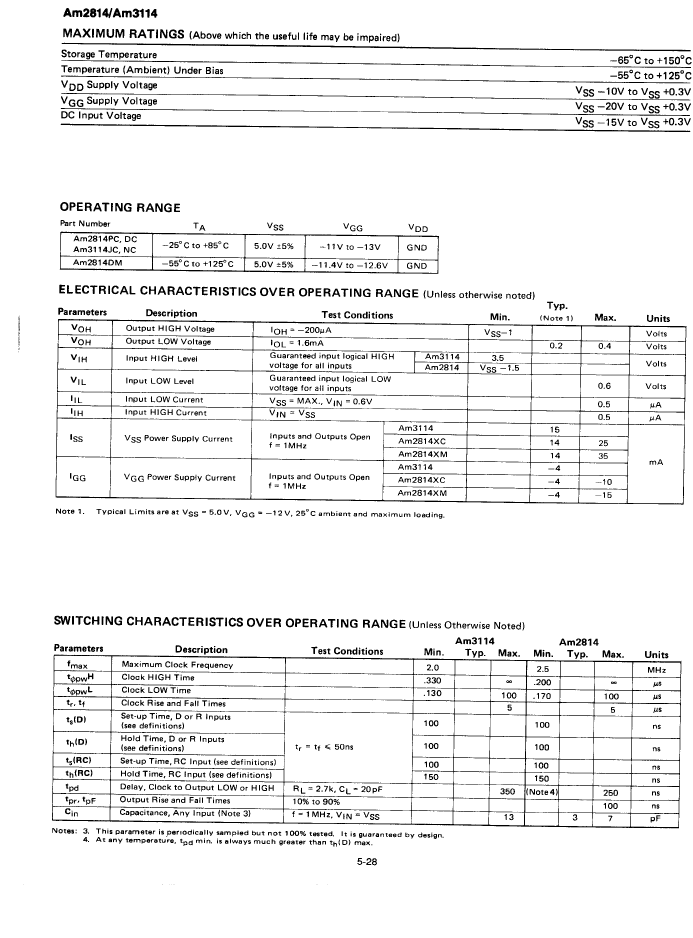

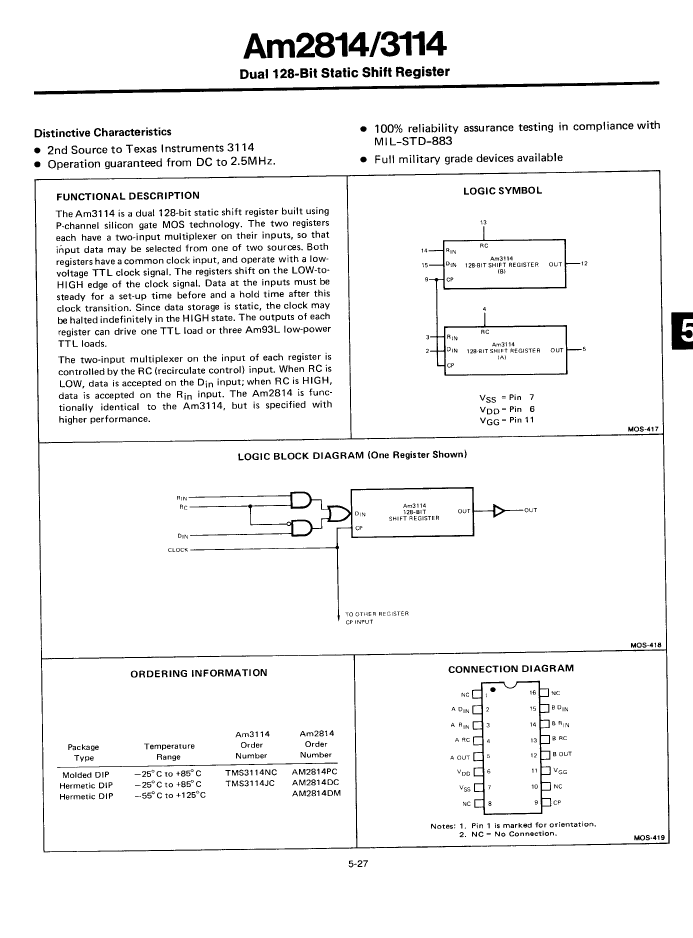

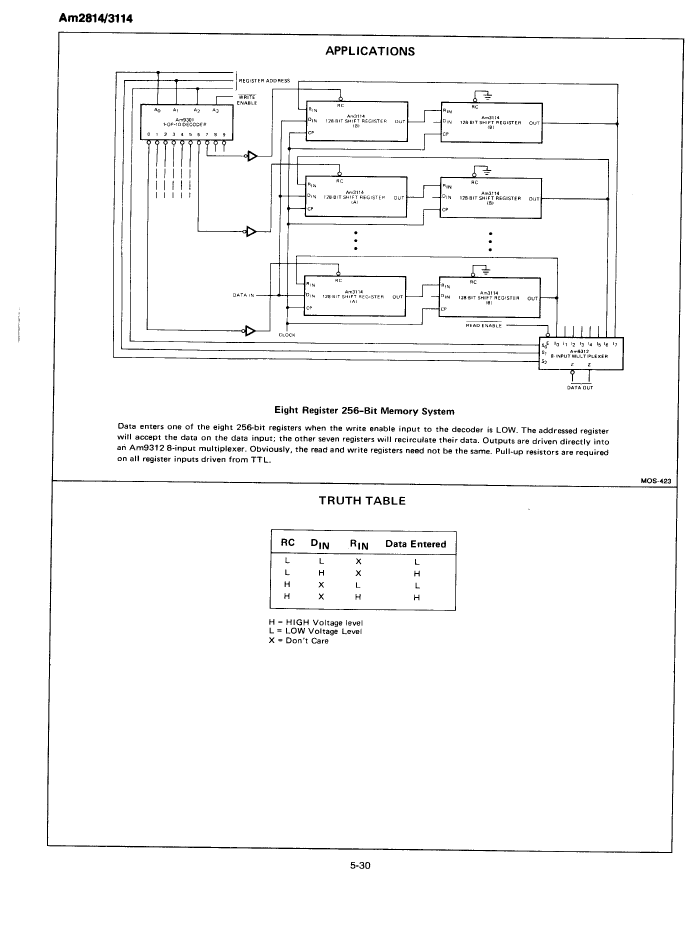

Preview

AM2814PC: DescriptionSerial In Serial Out, TTL/H/L Series, 128-Bit, Right Direction, True Output, PMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size144KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM2814PC Overview

Serial In Serial Out, TTL/H/L Series, 128-Bit, Right Direction, True Output, PMOS, PDIP16, PLASTIC, DIP-16

AM2814PC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Counting direction	RIGHT
series	TTL/H/L
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.304 mm
Load capacitance (CL)	20 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT
Number of digits	128
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	250 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	PMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	2.5 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AM2814PC Related Products

	AM2814PC	AM2814DC
Description	Serial In Serial Out, TTL/H/L Series, 128-Bit, Right Direction, True Output, PMOS, PDIP16, PLASTIC, DIP-16	Serial In Serial Out, TTL/H/L Series, 128-Bit, Right Direction, True Output, PMOS, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknown	unknown
Counting direction	RIGHT	RIGHT
series	TTL/H/L	TTL/H/L
JESD-30 code	R-PDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0
length	19.304 mm	20.32 mm
Load capacitance (CL)	20 pF	20 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Number of digits	128	128
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	250 ns	250 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	PMOS	PMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	2.5 MHz	2.5 MHz
Base Number Matches	1	1
