Datasheet> All Categories > logic> logic> AM1507T

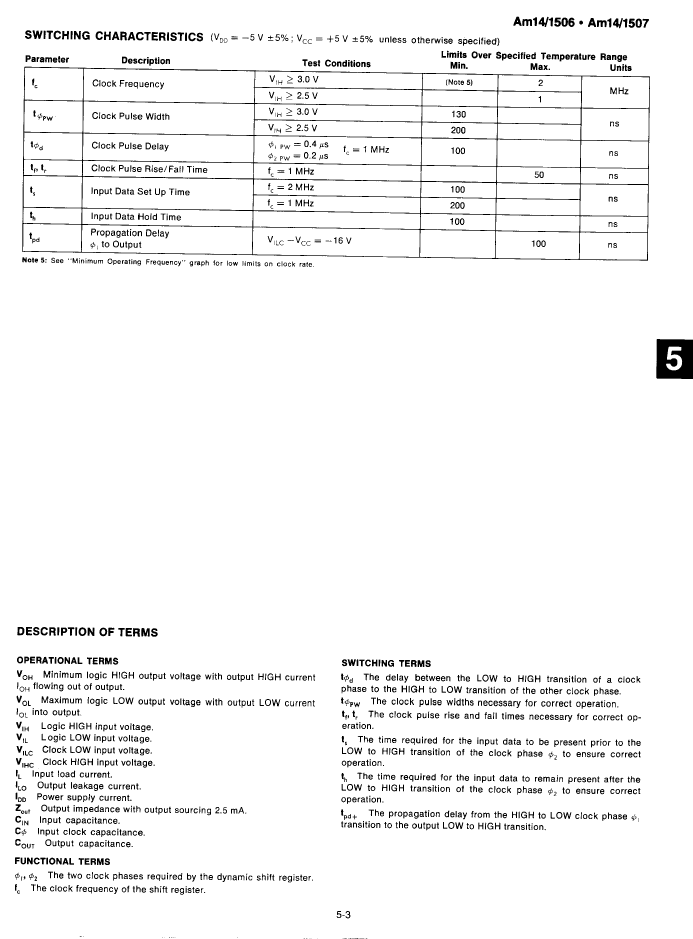

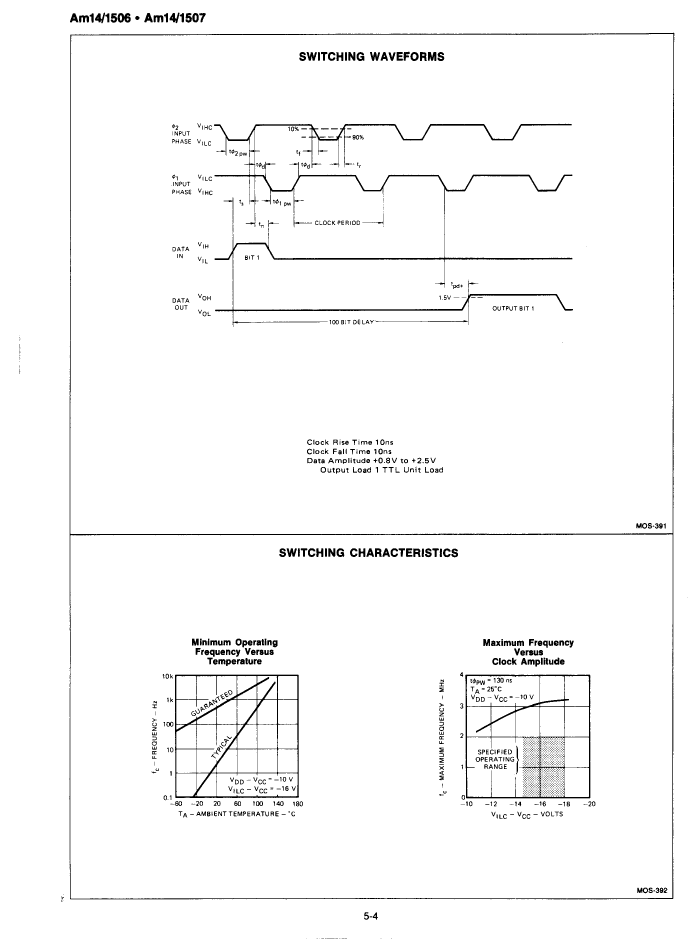

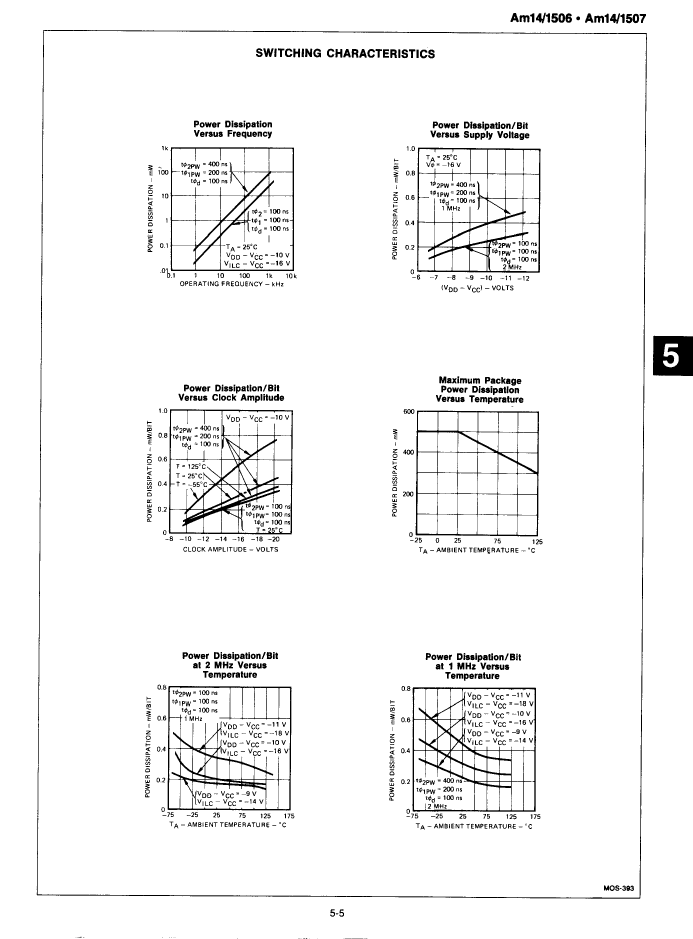

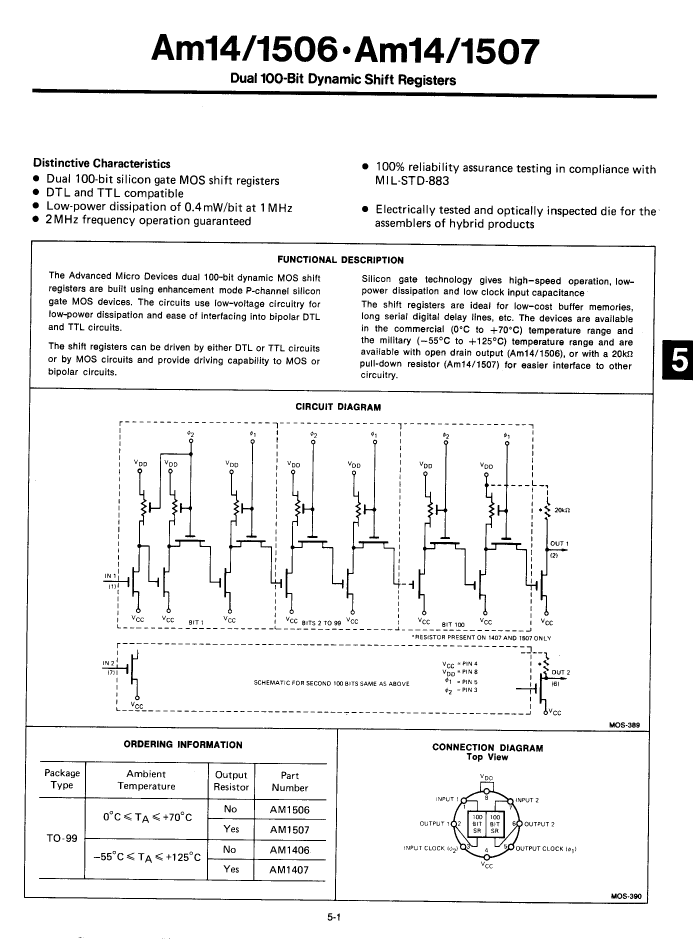

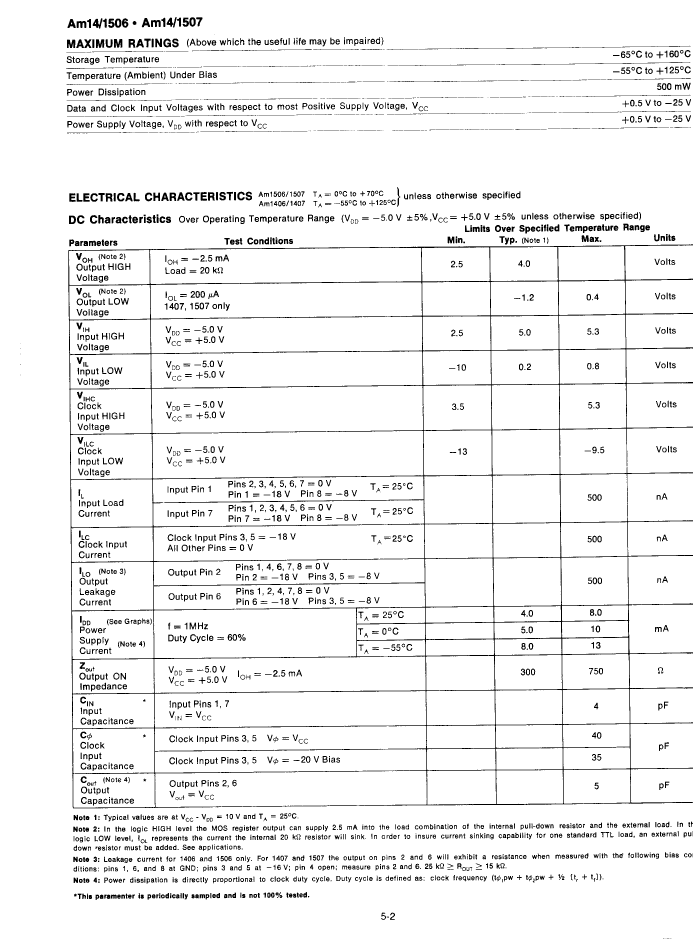

Preview

AM1507T: DescriptionShift Register, 100-Bit, MOS, MBCY8; Categorylogic logic; File Size322KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM1507T Overview

Shift Register, 100-Bit, MOS, MBCY8

AM1507T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	, CAN8,.2
Reach Compliance Code	unknown
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Number of digits	100
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

AM1507T Related Products

	AM1507T	AM1407B	AM1406B	AM1506TB	AM1506B	AM1506T	AM1507B	AM1507TB
Description	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8	Shift Register, 100-Bit, MOS, MBCY8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	unknown	unknown
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of digits	100	100	100	100	100	100	100	100
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	1	1	1	1	1
