AMD-K7550MTR51B datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AMD-K7550MTR51B

AMD-K7550MTR51B: DescriptionMicroprocessor, 64-Bit, 550MHz, CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，106 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AMD-K7550MTR51B Overview

Microprocessor, 64-Bit, 550MHz, CMOS

AMD-K7550MTR51B Parametric

Parameter Name	Attribute value
package instruction	, CARD242
Reach Compliance Code	compliant
ECCN code	3A991.A.2
bit size	64
boundary scan	YES
maximum clock frequency	550 MHz
External data bus width	64
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	X-XXMA-X
low power mode	YES
Number of terminals	242
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
Encapsulate equivalent code	CARD242
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
power supply	1.6,2.5,3.3 V
Certification status	Not Qualified
speed	550 MHz
Maximum supply voltage	1.65 V
Minimum supply voltage	1.55 V
Nominal supply voltage	1.6 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

Preview

Download Datasheet

View All

Preliminary Information

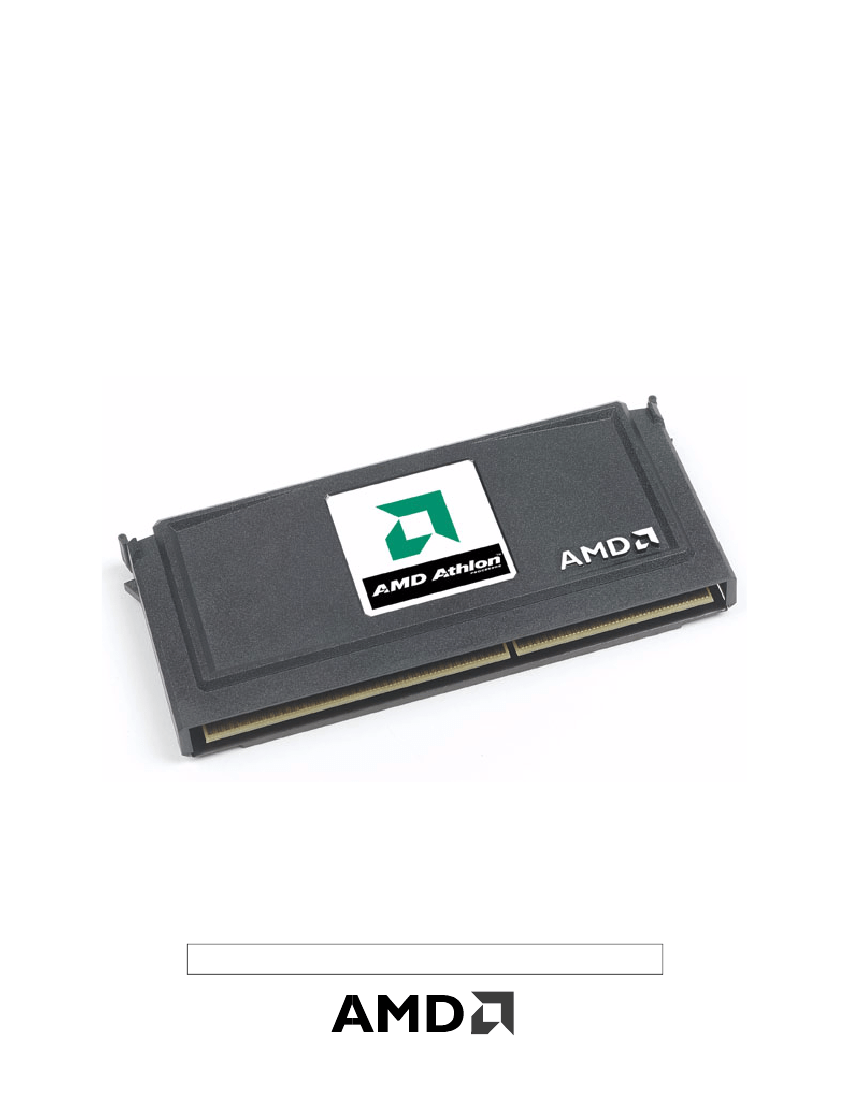

AMD Athlon

Processor

Data Sheet

Publication #

21016

Rev:

Issue Date:

December 1999

Preliminary Information

21016G/0—December 1999

AMD Athlon™ Processor Data Sheet

Contents

Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

About This Data Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Part One

AMD Athlon™ Processor Family

1.1

2.1

2.2

2.3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AMD Athlon™ Processor Microarchitecture Summary . . . . . 2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Signaling Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

AMD Athlon™ System Bus Signals . . . . . . . . . . . . . . . . . . . . . . 5

Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Logic Symbol Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1

Power Management States . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Full-On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Halt State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Stop Grant and Sleep States. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Probe State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connection and Disconnection Protocol . . . . . . . . . . . . . . . . 13

Connection Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connection State Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2

Thermal Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.1

6.2

6.3

6.4

6.5

6.6

The AMD Athlon™ System Bus . . . . . . . . . . . . . . . . . . . . . . . 23

Signal Groupings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Clock Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Voltage Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Frequency Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Decoupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

OD Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

CLKFWD Signal Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

SYSCLK, SYSCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Absolute Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.7

6.8

6.9

6.10

6.11

Contents

iii

Preliminary Information

AMD Athlon™ Processor Data Sheet

21016G/0—December 1999

Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.1

7.2

7.3

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Module Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

AMD Athlon™ Processor Card-Edge Signal Listing . . . . . . . 41

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Standard AMD Athlon™ Processor Products. . . . . . . . . . . . . . . . . . . 49

Part Two

AMD Athlon Processor Model 2

9.1

10.1

10.2

10.3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

AMD Athlon™ Processor Microarchitecture Summary . . . . 54

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Signaling Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

AMD Athlon™ System Bus Signals . . . . . . . . . . . . . . . . . . . . . 57

Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Logic Symbol Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Thermal Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

14.1

14.2

The AMD Athlon™ System Bus . . . . . . . . . . . . . . . . . . . . . . . 67

Signal Groupings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Clock Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

14.3 Voltage Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

14.4 Frequency Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

14.5 Decoupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

14.6 Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

14.7 Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

14.8 Absolute Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

14.9 Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

14.10 DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

14.11 AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

AMD Athlon™ Processor Card-Edge Signal Listing . . . . . . . 76

Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

15.1

15.2

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Standard AMD Athlon™ Processor Products. . . . . . . . . . . . . . . . . . . 83

Appendix A Conventions, Abbreviations, and References . . . . . . . . . . . . . . . . . . . . 85

Contents

AMD-K7550MTR51B Related Products

	AMD-K7550MTR51B	AMD-K7650MTR51B	AMD-K7600MTR51B	AMD-K7700MTR51B	AMD-K7750MTR52B
Description	Microprocessor, 64-Bit, 550MHz, CMOS	Microprocessor, 64-Bit, 650MHz, CMOS	Microprocessor, 64-Bit, 600MHz, CMOS	Microprocessor, 64-Bit, 700MHz, CMOS	Microprocessor, 64-Bit, 750MHz, CMOS
package instruction	, CARD242	, CARD242	, CARD242	, CARD242	,
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown
ECCN code	3A991.A.2	3A001.A.3	3A001.A.3	3A001.A.3	3A991.A.2
bit size	64	64	64	64	64
boundary scan	YES	YES	YES	YES	YES
maximum clock frequency	550 MHz	650 MHz	600 MHz	700 MHz	750 MHz
External data bus width	64	64	64	64	64
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES	YES	YES	YES
JESD-30 code	X-XXMA-X	X-XXMA-X	X-XXMA-X	X-XXMA-X	X-XXMA-X
low power mode	YES	YES	YES	YES	YES
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	550 MHz	650 MHz	600 MHz	700 MHz	750 MHz
Maximum supply voltage	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V
Minimum supply voltage	1.55 V	1.55 V	1.55 V	1.55 V	1.55 V
Nominal supply voltage	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Number of terminals	242	242	242	242	-
Encapsulate equivalent code	CARD242	CARD242	CARD242	CARD242	-
power supply	1.6,2.5,3.3 V	1.6,2.5,3.3 V	1.6,2.5,3.3 V	1.6,2.5,3.3 V	-
Maker	-	AMD	AMD	AMD	AMD
