ATW16V3-HTS-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATW16V3-HTS-10

ATW16V3-HTS-10: DescriptionBase Station/Broadcast Transmission Antenna, 174MHz Min, 216MHz Max, 16.93dB Gain; CategoryWireless rf/communication Radio frequency and microwave; File Size21KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric View All

ATW16V3-HTS-10 Overview

Base Station/Broadcast Transmission Antenna, 174MHz Min, 216MHz Max, 16.93dB Gain

ATW16V3-HTS-10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
Gain	16.93 dB
Omnidirectional	NO
Maximum operating frequency	216 MHz
Minimum operating frequency	174 MHz
polarization	LINEAR HORIZONTAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	100000 W
Maximum voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

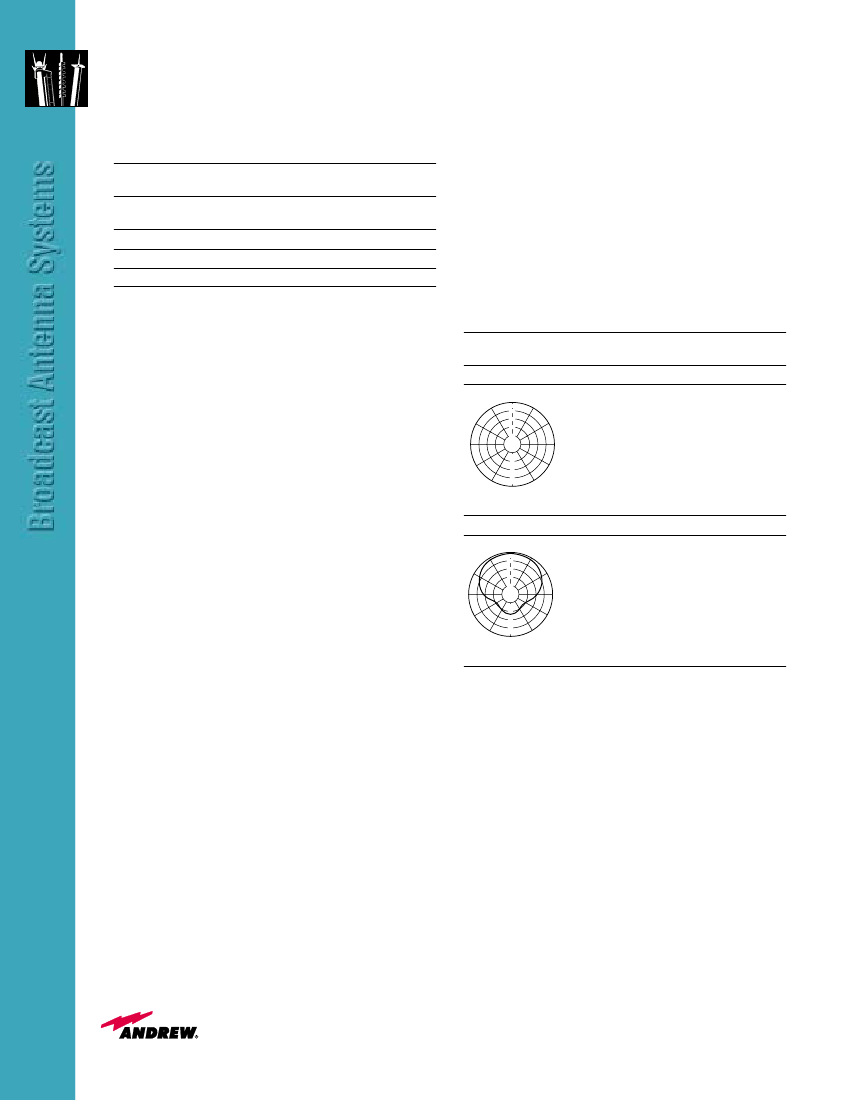

TRASAR

VHF-TV Transmitting Antennas

Specifications

Channel Range:

VSWR:

Deicing:

Input Power:

Input Type:

7-13, one 6 MHz channel

(174-216 MHz)

1.05 Visual +0.5 MHz 1.08 Color

Sub-Carrier 1.10 Remainder of Channel

Fiberglass Radome Enclosed

100 kW, Peak Visual +20% Aural

Specify 50 or 75 ohm 6-1/8" EIA

Azimuth Patterns

As shown in the table, omnidirectional and skull patterns

are standard. Cardioid patterns are also available.

Note that these are typical free space patterns and may

vary slightly depending on channel, structural design

criteria and tower mounting configuration.

Antenna Selection

Antennas are selected on the basis of:

•

Azimuth Pattern

•

Elevation gain 6, 9, 12 or 16 are typical

•

Beam tilt 0.75, 1.0 or 1.5° are typical

•

Horizontal, elliptical or circular polarization

•

Top or side mount

Standard Type Numbers are listed in the table. Specify

channel number and, for elliptically/circularly polarized

antennas, the desired power split. Other patterns, gains

and beam tilts are available on request.

Top-Mounted Antennas

Azimuth Pattern

Relative Field

Pol.

Peak Power

Gain

Standard

Type No.

Omnidirectional ±1 dB

Horiz. 6.00 (7.78 dBd)

Ellipt.

0.6

60°

300°

Horiz. 9.00 (9.54 dBd)

0.4

0.2

Ellipt.

270°

90°

Horiz. 12.00 (10.79 dBd)

Ellipt.

120°

240°

Horiz. 16.00 (12.04 dBd)

150°

210°

180°

Ellipt.

Directivity: 1.00 (0.00 dB)

330°

1.0

0.8

30°

ATW6V3-HTO- (*)

ATW6V3-ETO- (*)

ATW9V3-HTO- (*)

ATW9V3-ETO- (*)

ATW12V3-HTO- (*)

ATW12V3-ETO- (*)

ATW16V3-HTO- (*)

ATW16V3-ETO- (*)

Skull

Horiz.

Ellipt.

0.6

60°

300°

Horiz.

0.4

0.2

Ellipt.

90°

270°

Horiz.

120°

Ellipt.

240°

Horiz.

150°

210°

180°

Ellipt.

Directivity: 1.90 (2.79 dB)

330°

1.0

0.8

30°

Relative Field

11.40 (10.57 dBd)

17.10 (12.33 dBd)

22.80 (13.58 dBd)

30.40 (14.83 dBd)

ATW6V3-HTS-(*)

ATW6V3-ETS-(*)

ATW9V3-HTS-(*)

ATW9V3-ETS-(*)

ATW12V3-HTS-(*)

ATW12V3-ETS-(*)

ATW16V3-HTS-(*)

ATW16V3-ETS-(*)

* Specify VHF-TV channel number.

** Horizontal and vertical gains depend on power split. Specify power split.

286

Customer Service Center - Call toll-free from: •

U.S.A., Canada and Mexico 1-800-255-1479
