ASPA1415: DescriptionMobile Station Antenna, 144MHz Min, 152MHz Max, 2.15dB Gain; CategoryWireless rf/communication Radio frequency and microwave; File Size80KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

ASPA1415 Overview

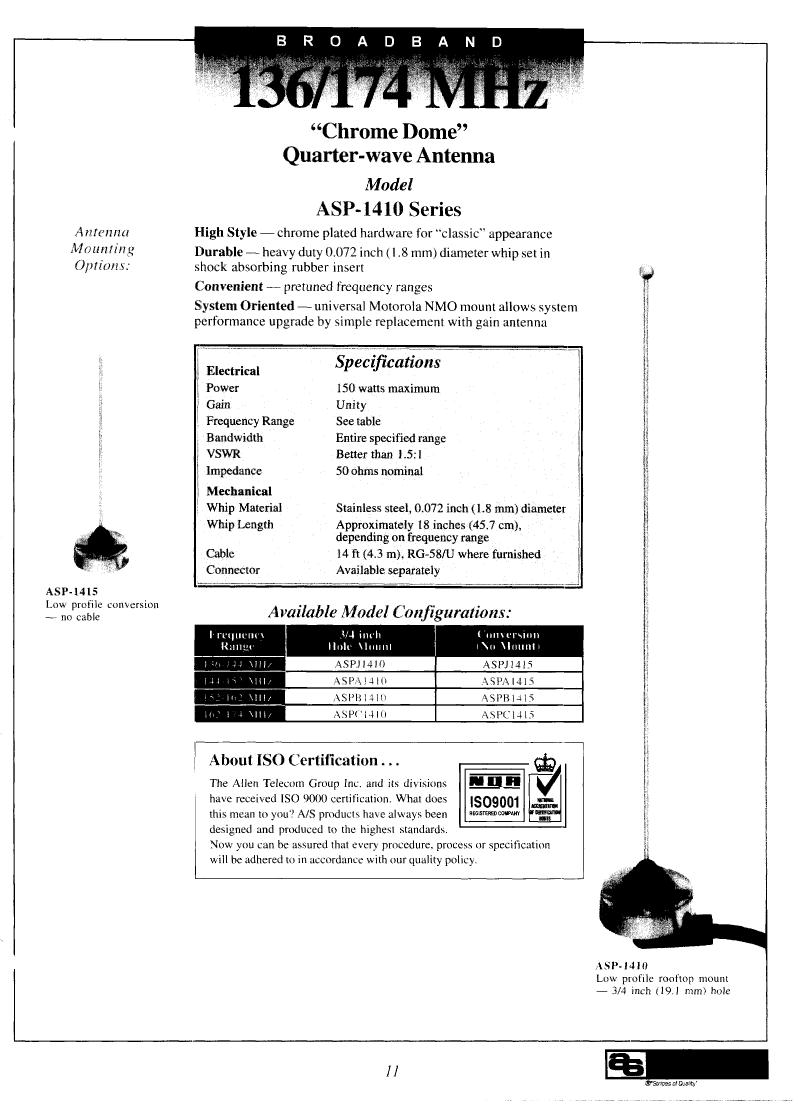

Mobile Station Antenna, 144MHz Min, 152MHz Max, 2.15dB Gain

ASPA1415 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	MULTIPOINT COMMUNICATION SYSTEM
bandwidth	8 MHz
Characteristic impedance	50 Ω
Gain	2.15 dB
Omnidirectional	YES
Maximum operating frequency	152 MHz
Minimum operating frequency	144 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	MOBILE STATION ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

ASPA1415 Related Products

	ASPA1415	ASPJ1415	ASPB1415	ASPC1415	ASPB1410	ASPA1410	ASPJ1410	ASPC1410
Description	Mobile Station Antenna, 144MHz Min, 152MHz Max, 2.15dB Gain	Mobile Station Antenna, 136MHz Min, 144MHz Max, 2.15dB Gain	Mobile Station Antenna, 152MHz Min, 162MHz Max, 2.15dB Gain	Mobile Station Antenna, 162MHz Min, 174MHz Max, 2.15dB Gain	Mobile Station Antenna, 152MHz Min, 162MHz Max, 2.15dB Gain	Mobile Station Antenna, 144MHz Min, 152MHz Max, 2.15dB Gain	Mobile Station Antenna, 136MHz Min, 144MHz Max, 2.15dB Gain	Mobile Station Antenna, 162MHz Min, 174MHz Max, 2.15dB Gain
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM
bandwidth	8 MHz	8 MHz	10 MHz	12 MHz	10 MHz	8 MHz	8 MHz	12 MHz
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Gain	2.15 dB	2.15 dB	2.15 dB	2.15 dB	2.15 dB	2.15 dB	2.15 dB	2.15 dB
Omnidirectional	YES	YES	YES	YES	YES	YES	YES	YES
Maximum operating frequency	152 MHz	144 MHz	162 MHz	174 MHz	162 MHz	152 MHz	144 MHz	174 MHz
Minimum operating frequency	144 MHz	136 MHz	152 MHz	162 MHz	152 MHz	144 MHz	136 MHz	162 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA	MOBILE STATION ANTENNA
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Maker	-	-	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
