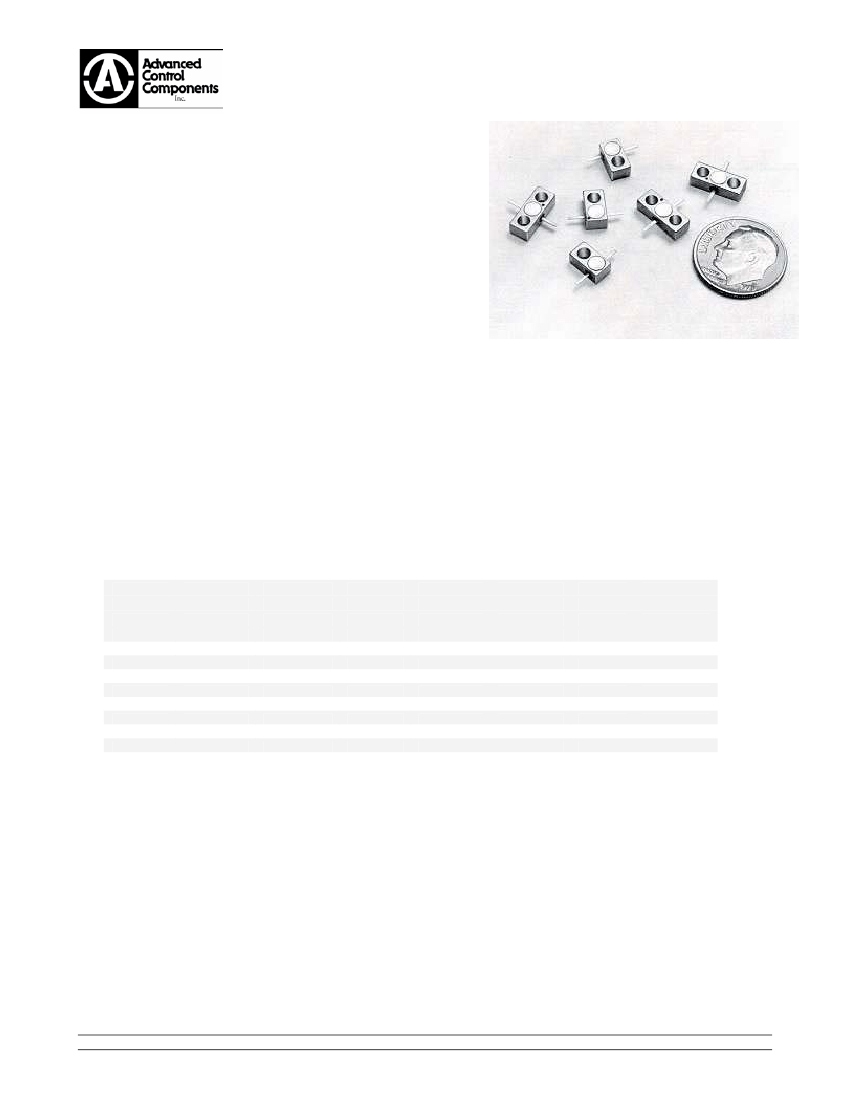

BOLT CHANNEL SCHOTTKY DETECTORS
Static protection and easy mounting are important features of these high
sensitivity detectors. They offer excellent octave or broadband RF performance
and rugged construction for harsh environments. The static protection virtually
eliminates damage due to handling or from video transients. The Bolt Channel
package allows for very simple and reliable screw-on mounting. The modified
package saves additional space by eliminating one thru hole. The standard
output polarity is positive. Negative output versions are available with slightly
lower sensitivity.
Each detector model contains:
•
DC return
•
RF bypass capacitor
•
Detector diode
•
Video protection diode
Features:
•
Microstrip or Stripline Compatible
•
Static Protection
•
High Sensitivity
•
Small Size
•
Easy Mounting
Applications:
•
Transmitter Monitoring
•
Radar Equipment
•
Missile Guidance Systems
•
Input to Low-Noise Amplifiers
•
Broadband Or Narrowband ECM Receivers
•
Power and Signal Monitors
•
Doppler Radar and Beacon Receivers
•
Matched units available for Multi-channel Receivers, Amplitude Comparator Systems and Discriminators
Frequency
Range
(GHz)
0.95 - 1.25
1 - 1.5
2-6
2 - 12
2 - 18
8 - 18
12 - 18
17 - 18
Part (1)
Number
ACSM2036P
ACSM2155P
ACSM2030P
ACSM2032P
ACSM2031P
ACSM2033P
ACSM2034P
ACSM2139P
Minimum (5)
Sensitivity
K
(mV/mW)
2000
1700
2000
2000
1700
1700
1800
1700
Flatness
vs
Frequency
(+/-dB)
0.2
0.25
0.3
1.0
1.3
1.0
0.75
0.5
Typical (2)
TSS
(dBm)
-53
-52
-53
-52
-51
-51
-51
-51
Nominal (3)
Video
Capacitance
(pF)
20
75
12
12
12
12
12
9
Standard
Case
Styles
M51
M51
M51
M51
M51
M51
M51
M51
Optional
Case
Styles
M50
M50
M50
M50
M50
M50
M50
M50
NOTES:
1) Standard output polarity is positive. If negative output is required, substitute “N” for “P” in part number.
2) Tangential Signal Sensitivity (TSS) is a measure of low level sensitivity with respect to noise. It is measured using a video amplifier with
a 2MHz bandwidth and a 3dB noise figure.
3) Video capacitance is used for RF bypass. This value can be changed if required for video response time or other considerations.
Contact the factory if value other than those shown are needed.
4) Video protection is available on most models. This feature helps to prevent damage to the detector diode from incidents occurring at the
video port. Transient electromagnetic spikes, static contact, or voltage surges can easily damage a detector diode. A video protection
diode will clamp the voltage at a value less than the detector breakdown voltage. NOTE: Inclusion of this protection will cause the
output voltage to compress and clamp. This occurs at about +10dBm input to the detector. If operation above +10dBm is required then
the output protection should be modified or excluded. Adding a suffix “X” at the end of the model number will exclude the video
protection feature. Contact the factory for assistance.
5) Standard bias is 100uA.
6) Zero bias schottky versions are available for most of listed biased schottky models with only minor differences in specifications.
a. The zero bias schottky has an impedance of several thousand ohms.
b. Zero bias schottky detectors exhibit less sensitive TSS due to the high diode impedance (typically a 3dB reduction).
c. The temperature performance of the zero bias schottky is poor when operating at low input power levels. This difference
becomes small at high levels (above 0dBm input power). The part number of zero bias versions includes a “Z” following the
polarity indicator.
611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
ENVIRONMENTAL SPECIFICATIONS:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -65°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration : MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Maximum Input Power: +20dBm
SCREENING :
Standard Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
Optional High-Rel Screening (Ref MIL-PRF-38534):
Internal Visual per MIL-STD-883, Method 2017
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method 2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
0.411±.002
COLORED DOT
INPUT
0.252±.003
0.079±.002
0.280±.005
0.079±.002
COLORED DOT
INPUT
Ø0.096±.003 THRU
(2) PLCS.
Ø0.096±.003
THRU
0.160
0.080±.001
0.161±.001
0.080±.001
0.020 MAX.
(TO FLAT)
0.135±.010
(2) PLCS.
0.020 MAX.
(TO FLAT)
0.135±.010
(2) PLCS.
0.004 X 0.020
MIN. (2) PLCS.
0.205±.003
0.004 X 0.020
MIN. (2) PLCS.
0.205±.003
0.126±.004
0.126±.004
0.062±.002
0.062±.002
CASE STYLE M50
CASE STYLE M51
Part Number Ordering Information:
Example: ACSM2033PZM51X20
ACSM2033: Bolt Channel Schottky Detector, 8 - 18GHz
P: Positive output polarity
Z: Zero bias version (omit for biased version)
M51: Package type
X: No video protection (omit for inclusion of video protection)
20: 20pF custom output capacitance (omit for standard value)
SMBC-0205
611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
