AP9A116-12BC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> AP9A116-12BC

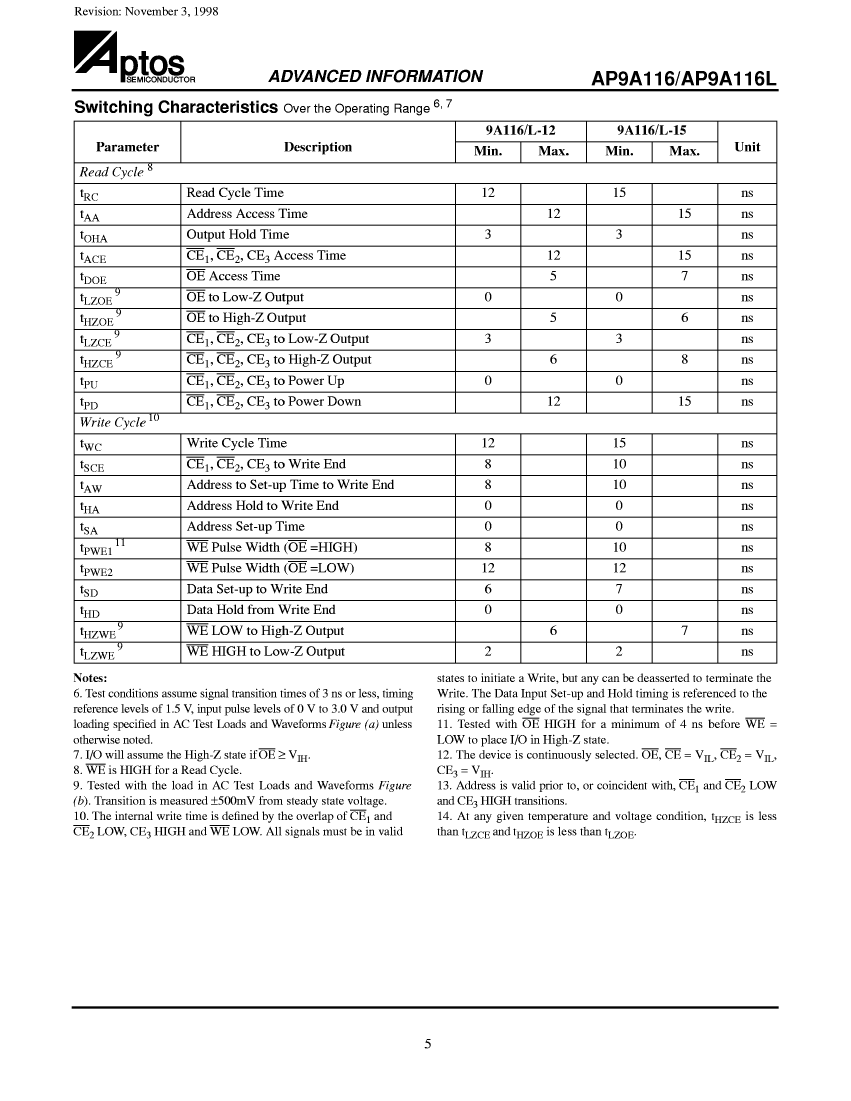

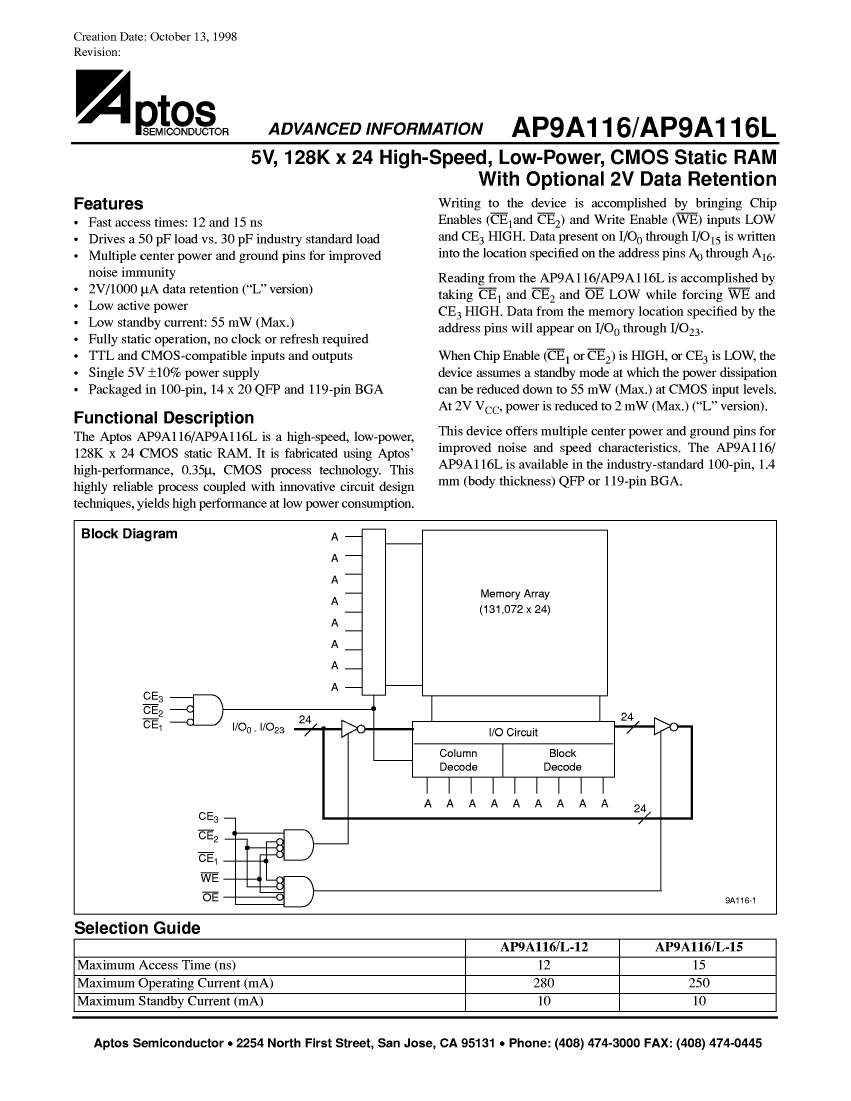

Preview

AP9A116-12BC: DescriptionStandard SRAM, 128KX24, 12ns, CMOS, PBGA119; Categorystorage storage; File Size275KB，9 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

AP9A116-12BC Overview

Standard SRAM, 128KX24, 12ns, CMOS, PBGA119

AP9A116-12BC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	12 ns
JESD-30 code	R-PBGA-B119
memory density	3145728 bit
Memory IC Type	STANDARD SRAM
memory width	24
Number of functions	1
Number of terminals	119
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX24
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal location	BOTTOM
Base Number Matches	1

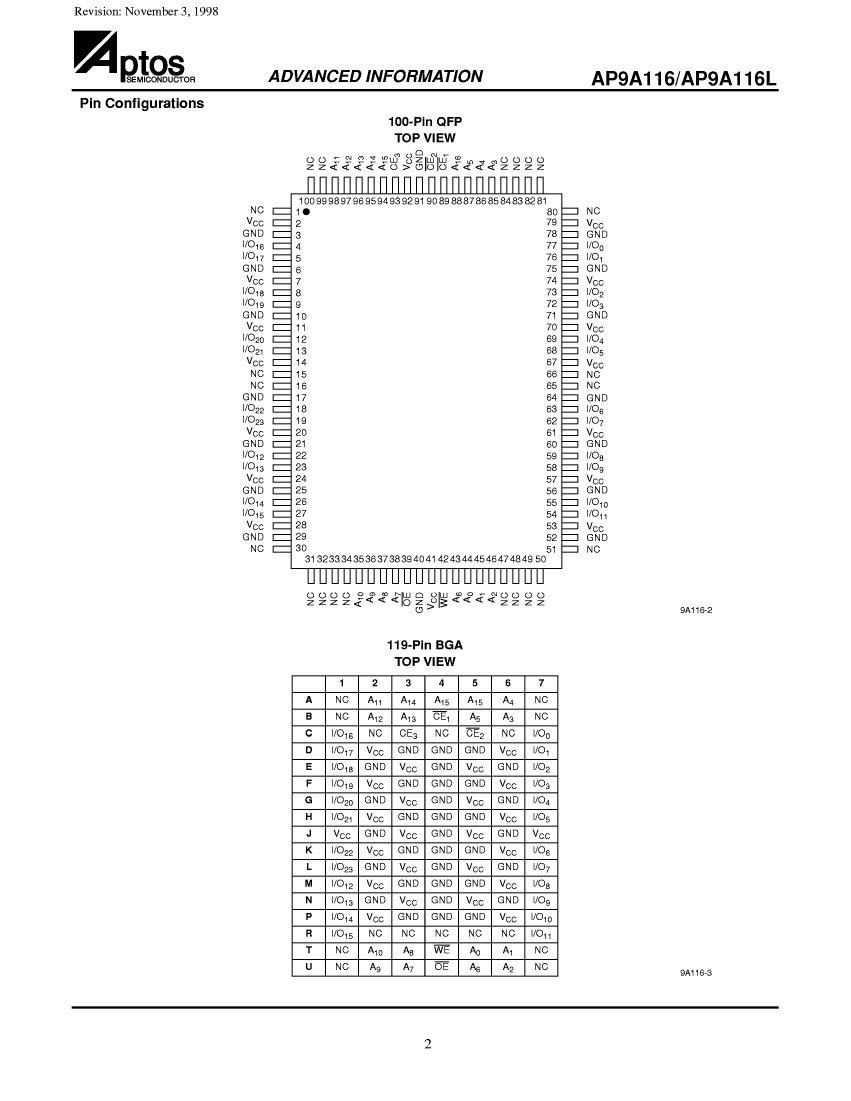

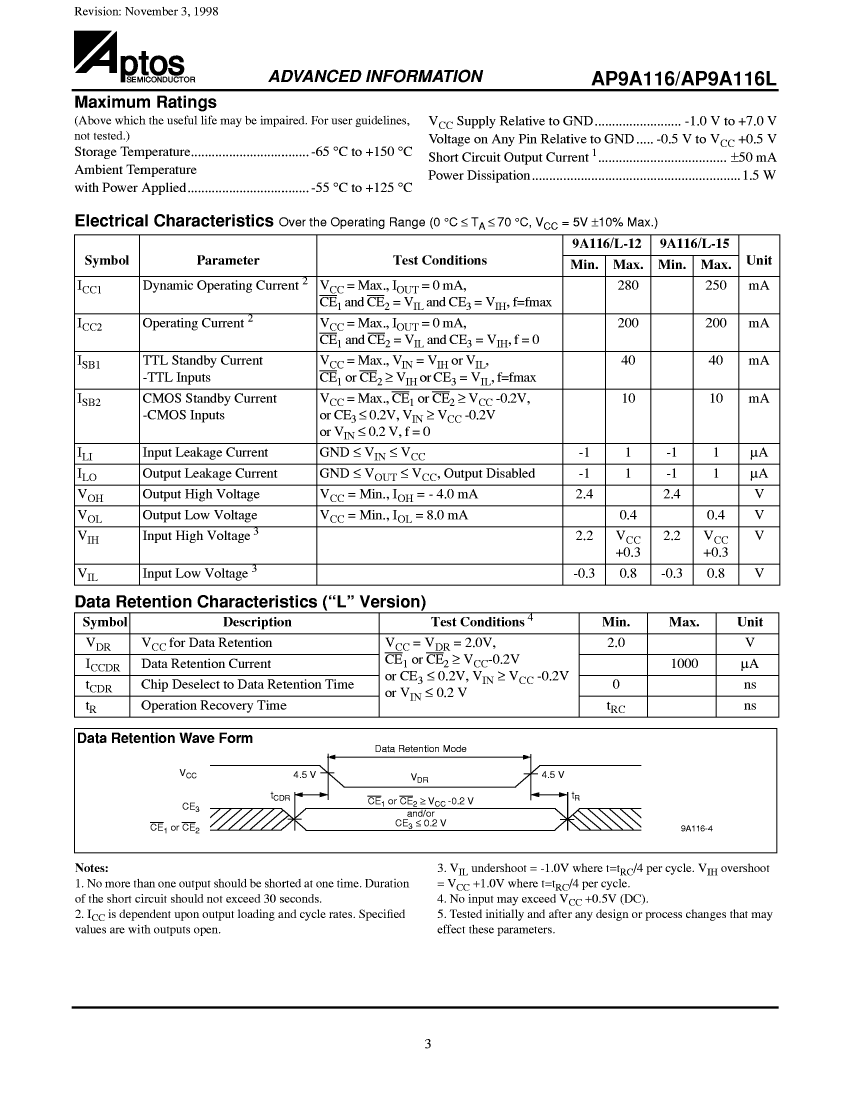

Preview

Download Datasheet

View All

AP9A116-12BC Related Products

	AP9A116-12BC	AP9A116L-12BC	AP9A116L-15BC	AP9A116L-12QC	AP9A116L-15QC	AP9A116-15QC	AP9A116-12QC	AP9A116-15BC
Description	Standard SRAM, 128KX24, 12ns, CMOS, PBGA119	Standard SRAM, 128KX24, 12ns, CMOS, PBGA119	Standard SRAM, 128KX24, 15ns, CMOS, PBGA119	Standard SRAM, 128KX24, 12ns, CMOS, PQFP100	Standard SRAM, 128KX24, 15ns, CMOS, PQFP100	Standard SRAM, 128KX24, 15ns, CMOS, PQFP100	Standard SRAM, 128KX24, 12ns, CMOS, PQFP100	Standard SRAM, 128KX24, 15ns, CMOS, PBGA119
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	12 ns	12 ns	15 ns	12 ns	15 ns	15 ns	12 ns	15 ns
JESD-30 code	R-PBGA-B119	R-PBGA-B119	R-PBGA-B119	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PBGA-B119
memory density	3145728 bit	3145728 bit	3145728 bit	3145728 bit	3145728 bit	3145728 bit	3145728 bit	3145728 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	24	24	24	24	24	24	24	24
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	119	119	119	100	100	100	100	119
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX24	128KX24	128KX24	128KX24	128KX24	128KX24	128KX24	128KX24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	FLATPACK	FLATPACK	FLATPACK	FLATPACK	GRID ARRAY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	BALL	BALL	BALL	GULL WING	GULL WING	GULL WING	GULL WING	BALL
Terminal location	BOTTOM	BOTTOM	BOTTOM	QUAD	QUAD	QUAD	QUAD	BOTTOM
Maker	-	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )
