ARD32012ZQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ARD32012ZQ

ARD32012ZQ: DescriptionRF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size620KB，14 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

ARD32012ZQ Overview

RF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT

ARD32012ZQ Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body height	39.5 mm
Body length or diameter	78 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.063 A
Coil power	750 mW
Coil resistance	190.48 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.1A@30VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (AC)	30 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	5000000 Cycle(s)
Maximum input power	120 W
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	ARD
Installation features	PANEL MOUNT
operating hours	20 ms
Maximum operating frequency	18000 MHz
Minimum operating frequency	12400 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX
Relay action	LATCHED
Relay function	SP6T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	SOLDER
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

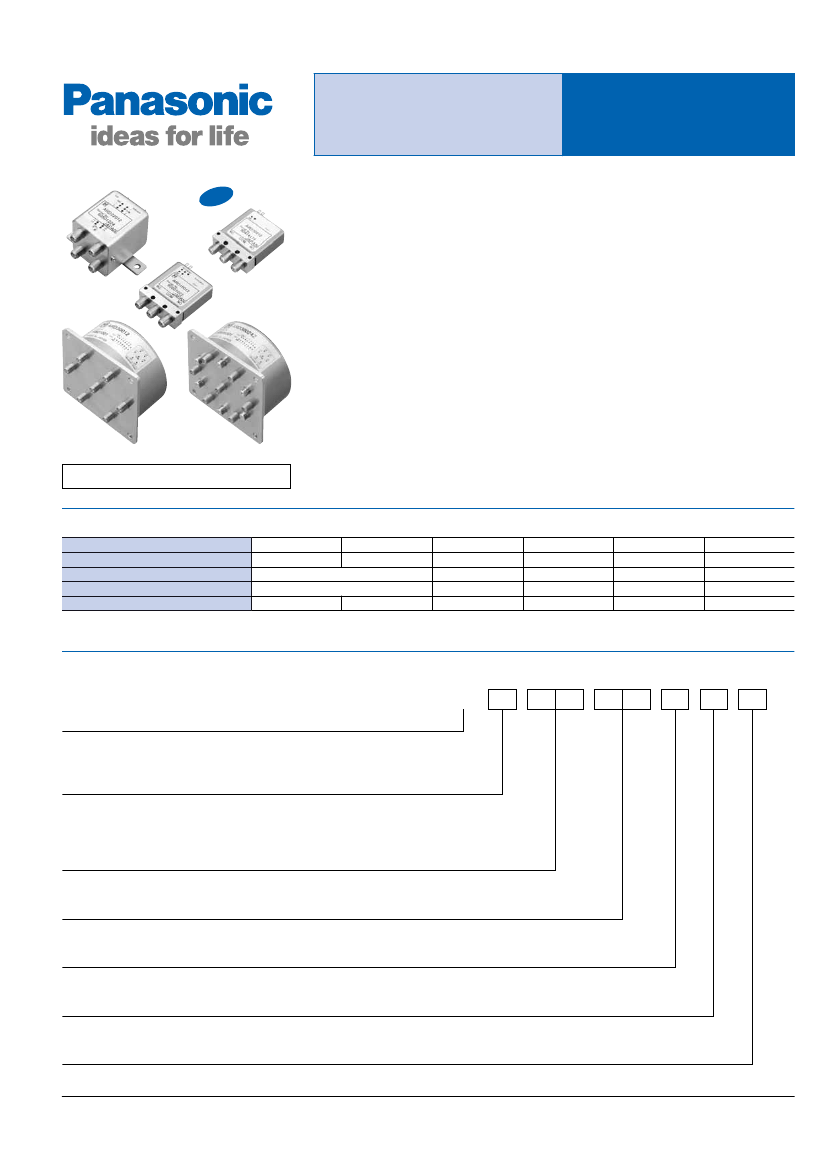

RD (ARD)

Addition of

6GHz High Reliability

RD Coaxial Switch (SPDT)

for Communications Market

New

RD COAXIAL

SWITCHES (ARD)

6. + COM type is available.

FEATURES

1. Excellent high frequency

characteristics (50Ω, to 26.5Ghz)

2. SPDT, Transfer and SP6T types are

available.

3. High sensitivity

Nominal operating power:

840 mW (SPDT/SP6T, Fail-safe type,

with indicator)

1,540 mW (Transfer, Fail-safe type, with

indicator)

*Without 24V type

TYPICAL APPLICATIONS

Wireless and mobile communication

• Cellular phone base station

• Ampliﬁer switching

Digital broadcasting

• Broadcasting relay station

• Broadcasting equipment

Measuring instrument

All types of inspection equipment

Please inquire beforehand if you are

thinking of using this product in

applications that involve low level load or

high frequency of switching.

6GHz type

Compliance with RoHS Directive

4. Long-lasting life: min. 5

5. With termination type is added.

(SP6T)

Thanks to the addition of termination,

steady high frequency characteristics can

be maintained when contacts are either

open or closed and this contributes to

increase system reliability.

HIGH FREQUENCY CHARACTERISTICS (Impedance 50Ω)

Frequency

V.S.W.R. (max.)

V.S.W.R. (SP6T With termination) (max.)

Insertion loss (dB. max.)

Isolation (dB. min.)

to 1 GHz

1.1

1.20

0.2

1 to 4 GHz

1.15

4 to 8 GHz*

1.25

1.40

0.3

8 to 12.4 GHz

1.35

1.50

0.4

12.4 to 18 GHz

1.5

—

0.5

18 to 26.5 GHz*

1.7

—

0.8

Notes: *1 The 6GHz type only has the above characteristics up to 6GHz.

*2 18 to 26.5GHz characteristics can be applied 26.5GHz type only (SPDT, Transfer)

ORDERING INFORMATION

ARD

RD coaxial switches

Frequency

1: to 18GHz (SPDT)

2: to 18GHz (Transfer)

3: to 13GHz (SP6T)

5: to 26.5GHz (SPDT)

6: to 26.5GHz (Transfer)

7: to 6GHz (SPDT)

02: Fail-safe (without indicator)

22: Latching (without indicator)

53: Latching with TTL driver (SPDT)

(with self cut-off function) (without indicator)

12: 12

24: 24

Operating function

00: Fail-safe (with indicator)

20: Latching (with indicator)

51: Latching with TTL driver (SPDT, Transfer)

(with self cut-off function) (with indicator)

Nominal operating voltage, V DC

4H: 4.5 (Fail-safe, Latching type only)

05: 5 (Latching with TTL driver type only)

Operation terminal

Nil: Solder terminal

C: Connector cable (SPDT type only)

Termination (SP6T type only)

Nil: No termination

Z: With termination

HF data attached

Nil: No HF test data attached

Q: HF test data attached

Note: Sealed types also available, please consult us (SPDT only)

ARD32012ZQ Related Products

	ARD32012ZQ	ARD3204HZQ	ARD3204HZ	ARD32012Z	ARD30024Z	ARD30024ZQ	ARD3004HZ	ARD3004HZQ	ARD32024ZQ	ARD32024Z
Description	RF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Latched, 0.157A (Coil), 4.5VDC (Coil), 700mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Latched, 0.157A (Coil), 4.5VDC (Coil), 700mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Latched, 0.063A (Coil), 12VDC (Coil), 750mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Failsafe, 0.04A (Coil), 24VDC (Coil), 970mW (Coil), 0.1A (Contact), 30VDC (Contact), 13000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Failsafe, 0.04A (Coil), 24VDC (Coil), 970mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Failsafe, 0.187A (Coil), 4.5VDC (Coil), 840mW (Coil), 0.1A (Contact), 30VDC (Contact), 13000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Failsafe, 0.187A (Coil), 4.5VDC (Coil), 840mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Latched, 0.038A (Coil), 24VDC (Coil), 900mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT	RF Coaxial Relay, SP6T, Latched, 0.038A (Coil), 24VDC (Coil), 900mW (Coil), 0.1A (Contact), 30VDC (Contact), 18000MHz, 120W (RF Input), DC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body height	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm	39.5 mm
Body length or diameter	78 mm	78 mm	78 mm	78 mm	78 mm	78 mm	78 mm	78 mm	78 mm	78 mm
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Maximum coil current (DC)	0.063 A	0.157 A	0.157 A	0.063 A	0.04 A	0.04 A	0.187 A	0.187 A	0.038 A	0.038 A
Coil power	750 mW	700 mW	700 mW	750 mW	970 mW	970 mW	840 mW	840 mW	900 mW	900 mW
Coil resistance	190.48 Ω	28.66 Ω	28.66 Ω	190.48 Ω	600 Ω	600 Ω	24.1 Ω	28.88 Ω	631.58 Ω	631.58 Ω
Maximum coil voltage (DC)	12 V	4.5 V	4.5 V	12 V	24 V	24 V	4.5 V	4.5 V	24 V	24 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC	.1A@30VAC
Maximum contact current (AC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC
Maximum contact voltage (AC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)	5000000 Cycle(s)
Maximum input power	120 W	120 W	120 W	120 W	120 W	120 W	120 W	120 W	120 W	120 W
Maximum insertion loss	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.4 dB	0.5 dB	0.4 dB	0.5 dB	0.5 dB	0.5 dB
Maximum isolation	60 dB	60 dB	60 dB	60 dB	65 dB	60 dB	65 dB	60 dB	60 dB	60 dB
Manufacturer's serial number	ARD	ARD	ARD	ARD	ARD	ARD	ARD	ARD	ARD	ARD
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
operating hours	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	18000 MHz	13000 MHz	18000 MHz	13000 MHz	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	12400 MHz	12400 MHz	12400 MHz	12400 MHz	8000 MHz	12400 MHz	8000 MHz	12400 MHz	12400 MHz	12400 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
Relay action	LATCHED	LATCHED	LATCHED	LATCHED	FAILSAFE	FAILSAFE	FAILSAFE	FAILSAFE	LATCHED	LATCHED
Relay function	SP6T	SP6T	SP6T	SP6T	SP6T	SP6T	SP6T	SP6T	SP6T	SP6T
Relay type	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
switching time	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Maker	-	Panasonic	Panasonic	-	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
