ADTL-ED7983/2+: DescriptionRF Transformer, 1MHz Min, 3100MHz Max; CategoryPower management transformer; File Size95KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ADTL-ED7983/2+ Overview

RF Transformer, 1MHz Min, 3100MHz Max

ADTL-ED7983/2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OHMS RATIO IS 1.3
maximum cutoff frequency	3100 MHz
minimum cutoff frequency	1 MHz
high	2.845 mm
JESD-609 code	e3
length	7.874 mm
Manufacturer's serial number	ADTL-ED7983/2
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	L7.874XB5.588XH2.845 (mm)
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Transformer type	RF TRANSFORMER
width	5.588 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

RF Transformer

Impedance Ratio : 1.3

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

ADTL-ED7983/2

Please click "Back", and then click "Contact Us" for Applications support.

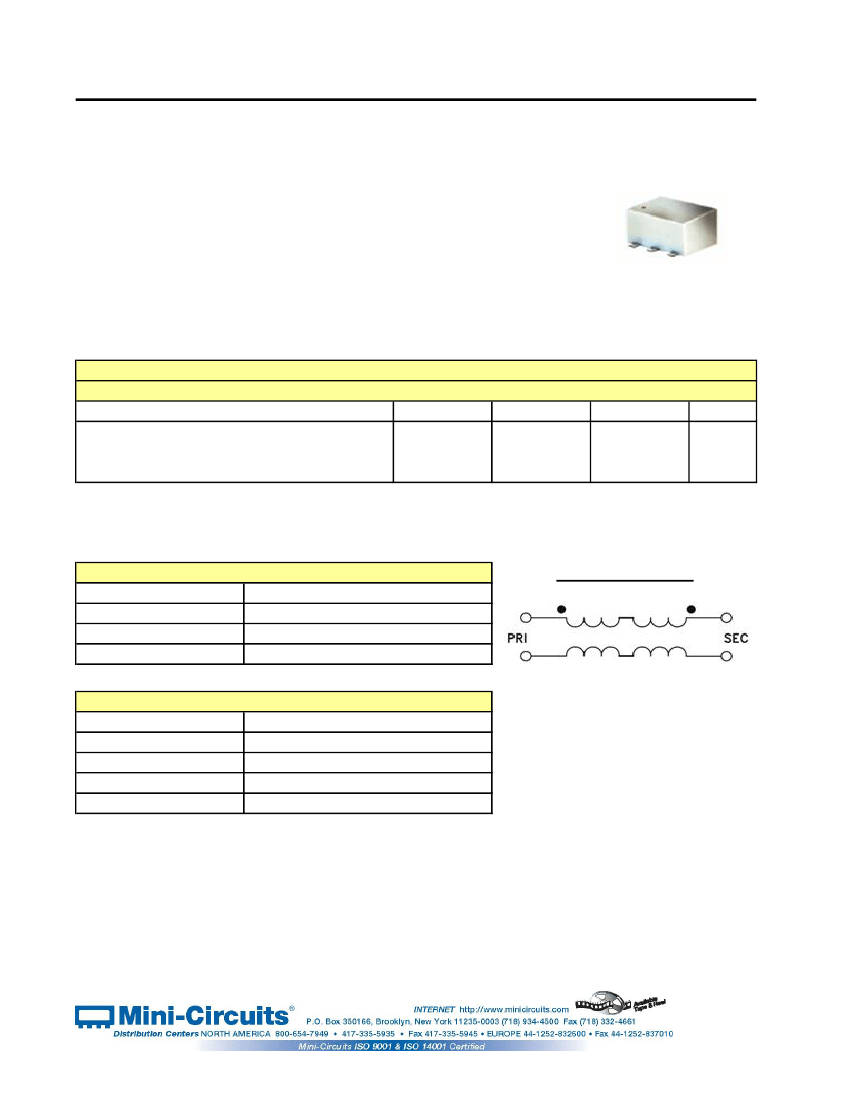

CASE STYLE : CD542

ELECTRICAL SPECIFICATIONS 75Ω @ +25°C

Parameter

Frequency

Insertion Loss *

Min.

1

3 dB Bandwidth

2 dB Bandwidth

1 dB Bandwidth

Typ.

1 - 3100

1.5 - 1750

2 - 1300

Max.

3100

Units

MHz

Note:

* Insertion Loss is referenced to mid-band loss, 0.24dB typ.

MAXIMUM RATINGS

-20°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

0.25 W

RF Power

30 mA

DC Current

PIN CONNECTIONS

PRIMARY DOT

PRIMARY

SECONDARY DOT

SECONDARY

NOT USED

1

3

6

4

2,5

Configuration : G

REV. X1

ADTL-ED7983/2

060808

Page 1 of 1

ADTL-ED7983/2+ Related Products

	ADTL-ED7983/2+	ADTL-ED7983/2
Description	RF Transformer, 1MHz Min, 3100MHz Max	RF Transformer, 1MHz Min, 3100MHz Max
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	OHMS RATIO IS 1.3	OHMS RATIO IS 1.3
maximum cutoff frequency	3100 MHz	3100 MHz
minimum cutoff frequency	1 MHz	1 MHz
high	2.845 mm	2.845 mm
JESD-609 code	e3	e0
length	7.874 mm	7.874 mm
Manufacturer's serial number	ADTL-ED7983/2	ADTL-ED7983/2
Installation features	SURFACE MOUNT	SURFACE MOUNT
method of packing	TAPE & REEL	TAPE & REEL
physical size	L7.874XB5.588XH2.845 (mm)	7.874mm X 5.588mm X 2.845mm
surface mount	YES	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Transformer type	RF TRANSFORMER	RF TRANSFORMER
width	5.588 mm	5.588 mm
Base Number Matches	1	1
