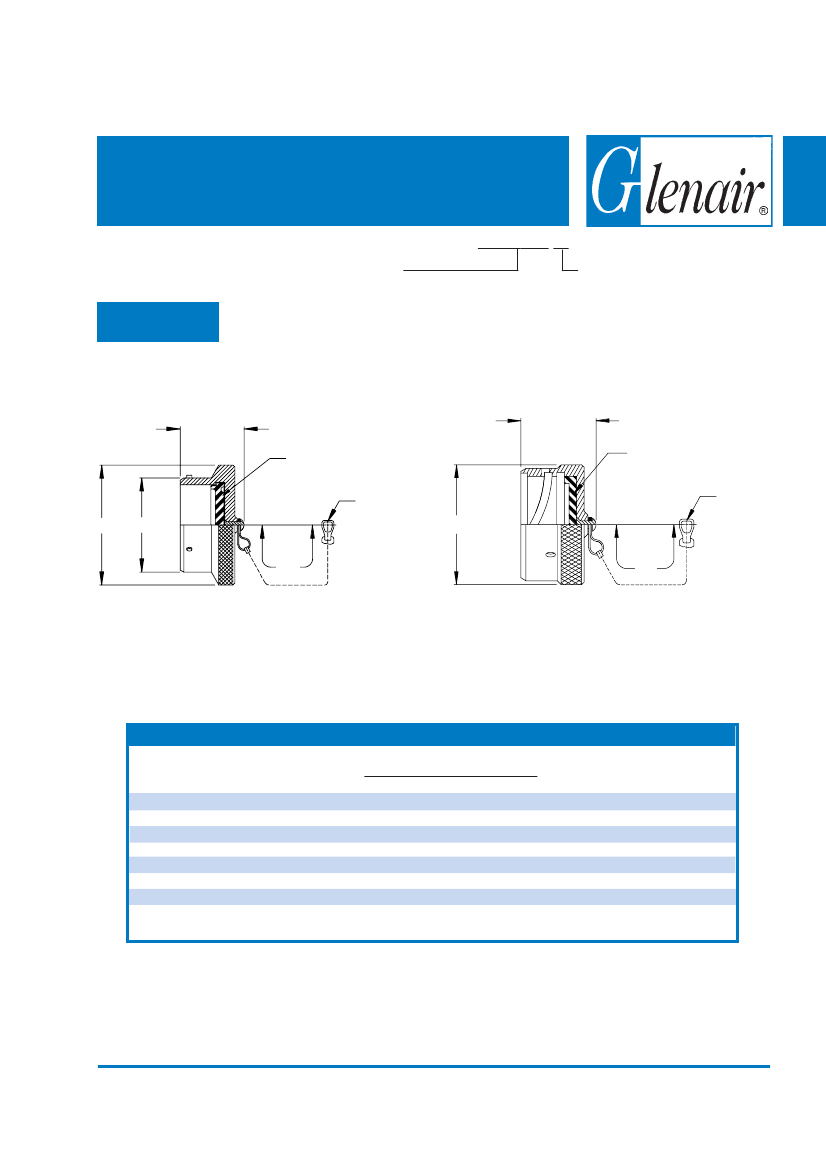

M81511/17, M81511/18, and M81511/29
Protective Covers
M81511/17-16
MIL-C-81511
Basic Part No.
M81511/17 = Plug Cover Series 2
M81511/18 = Receptacle Cover
Series 1 and 2
M81511/29 = Plug Cover Series 1
Shell Size
Inactive for
New Design
H
Gasket
Dia
.161/156
(4.1/4.0)
J
.885 (22.5)
Max
Gasket
Dia
.161/156
(4.1/4.0)
J
F
G
K
M81511/29 Plug Cover - Series 1
M81511/17 Plug Cover - Series 2
M81511/18 Receptacle Cover
Series 1 and 2
TABLE I
G Dia
H Max
F Dia
+.000 (0.0)
Shell
Max
-.006 (0.2)
Size
M81511/29
M81511/17
.845 (21.5)
.553 (14.0) 1.125 (28.6) .985 (25.0)
08
.970 (24.6)
.678 (17.2) 1.125 (28.6) .985 (25.0)
10
1.220 (31.0)
.928 (23.6) 1.125 (28.6) .985 (25.0)
14
1.345 (34.2) 1.054 (26.8) 1.125 (28.6) .985 (25.0)
16
1.470 (37.3) 1.178 (29.9) 1.125 (28.6) .985 (25.0)
18
1.595 (40.5) 1.303 (33.1) 1.125 (28.6)
20*
1.720 (43.7) 1.428 (36.3) 1.125 (28.6)
22*
1.845 (46.9) 1.553 (39.4) 1.125 (28.6)
24*
* Not Applicable for M81511/17 or M81511/18
J
± One Link
3.0 (76.2)
3.0 (76.2)
3.5 (88.9)
3.5 (88.9)
3.5 (88.9)
3.5 (88.9)
3.5 (88.9)
3.5 (88.9)
K Dia
Max
.844 (21.4)
.969 (24.6)
1.219 (31.0)
1.345 (34.2)
1.469 (37.3)
1.594 (40.5)
1.719 (43.7)
1.844 (46.8)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
66-9
