ASSFL-6.0000MHZ-R-D1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASSFL-6.0000MHZ-R-D1

ASSFL-6.0000MHZ-R-D1: DescriptionCMOS Output Clock Oscillator, 6MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASSFL-6.0000MHZ-R-D1 Overview

CMOS Output Clock Oscillator, 6MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASSFL-6.0000MHZ-R-D1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUCTION; BULK
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	ASSFL
Installation features	SURFACE MOUNT
Nominal operating frequency	6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	4 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

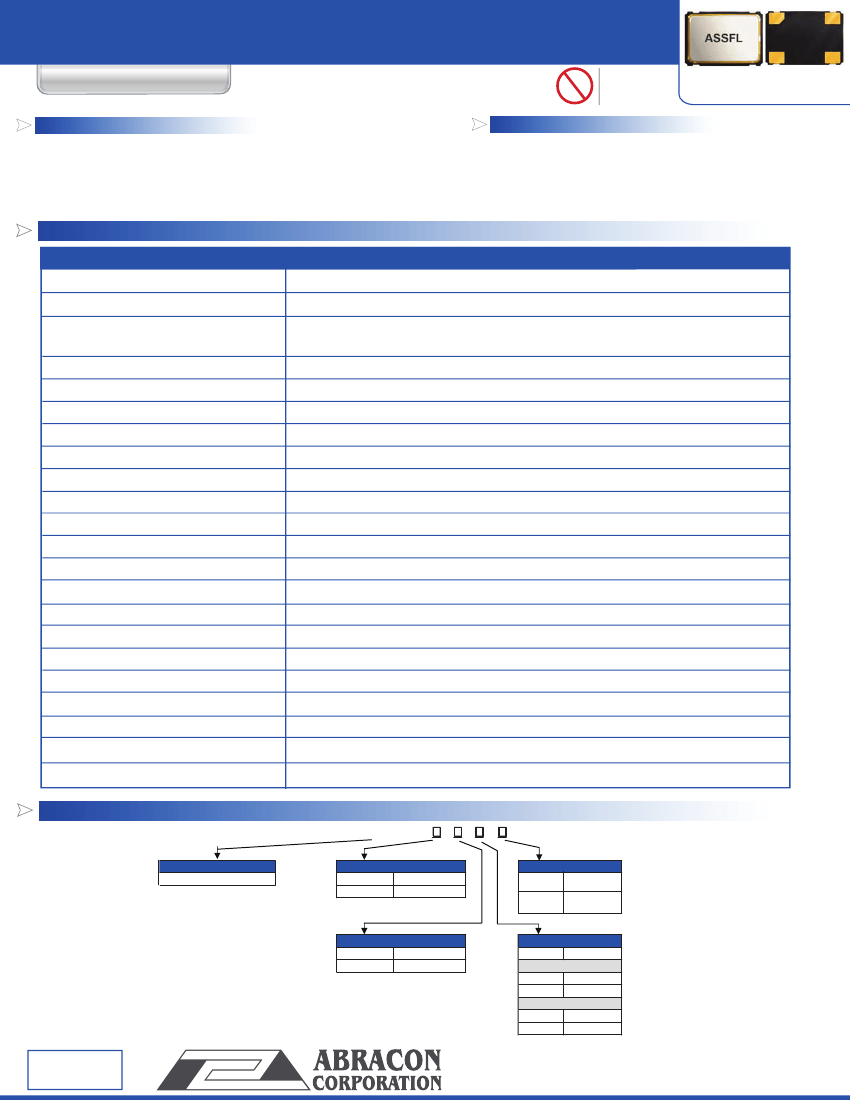

3.3V LOW EMI SMD SPREAD SPECTRUM CLOCK OSCILLATOR

ASSFL SERIES

FEATURES:

• Integrated spread spectrum technology

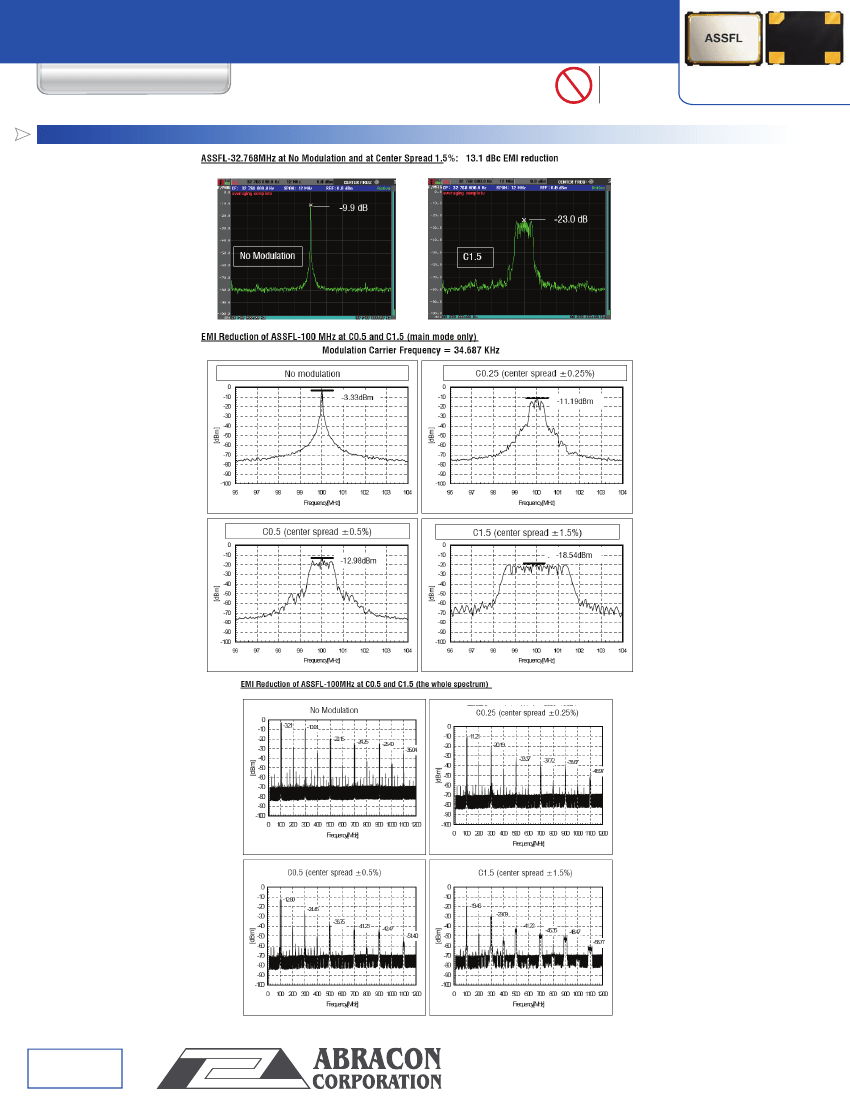

• EMI reduction up to 20dB

• Solve EMI failures as a drop in replacement for std. 5.0x3.2mm Osc.

• Cost effective EMI reduction

RoHS

Compliant

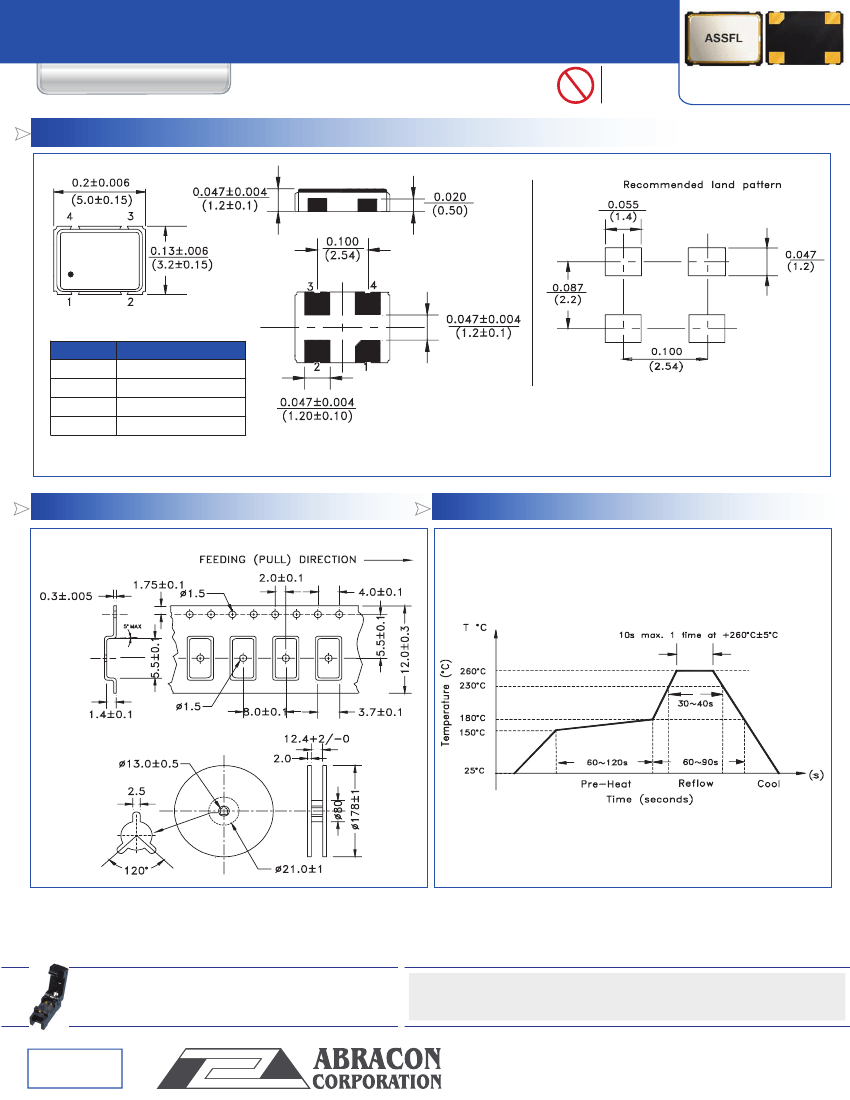

5.0 x 3.2 x 1.2mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Printers, Digital Copy Machines, Scanners,

Projectors, Modems, LAN, WAN, Navigation

Equipment, Automotive, Audio, Medical Electronics,

Hand-held readers, Industrial Automation

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Spread Type

EMI Reduction

(Reduction is applied to

entire the freq. spectrum)

6.000000MHz - 160.000000MHz

± 0.5% Center spread (see Table 1 for options)

- 7dBc min. 100MHz at C0.25, - 9dBc min. 100MHz at C0.5,

- 15dBc min. 100MHz at C1.5

With respect to the dB level when no modulation.

0°C to + 70°C (see options)

- 65°C to + 150°C

± 100 ppm (see options)

3.3 Vdc ± 5%

2ms typ, 5ms max.

2ms max.

4n sec. max. (10% Vdd <-> 90% Vdd)

15pF

20mA max.

50% ± 5% (CL = 15pF at 50% Vdd)

CMOS Square wave

±250ps typ; ±300ps max.

Ω

>2,000V (per MIL-STD-883, method 3015)

±5ppm per year max.; Ta=+25°C

2.0V min.; 3.2V typ (at 90% Vdd)

0.8V max. ; 0.2V typ (at 10% Vdd)

6.9KHz min.; 55.5KHz max; Frequency dependent call for details.

Output is high impedance when taken low. Output enable/disable time: 100ns max.

Operating Temperature

Storage Temperature

Frequency Stability

Supply Voltage (Vdd)

Start-up Time

Stabilization Time

Rise and Fall Time

Load

Current Consumption

Duty Cycle

Output Logic

Cycle to cycle Jitter

Output Impedance

Static Discharge Voltage

Aging

Output Voltage “High”; “1”

Output Voltage “Low”; “0”

Modulation carrier frequency

(Dither rate)

Pin 1 Function

OPTIONS AND PART IDENTIFICATION

(Left if standard)

XX.XXXX MHz

ASSFL - Frequency -

Frequency

Packaging

Blank

Bulk

Tape and Reel

(1000pcs)

Operating Temperature

0°C to + 70°C

Blank

-40°C to + 85°C

Please contact ABRACON for

special tighter stability.

Freq. Stability

±50ppm

Blank

±25ppm

SSBW

Option

(%)

Down Spread

-1%

-3%

Center Spread

C0.5

±0.5% (STD)

C1.5

±1.5%

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.15.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
