ASTX-11L-D-16.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASTX-11L-D-16.000MHZ

ASTX-11L-D-16.000MHZ: DescriptionSine Output Oscillator, 16MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size368KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTX-11L-D-16.000MHZ Overview

Sine Output Oscillator, 16MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASTX-11L-D-16.000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	BULK
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Manufacturer's serial number	ASTX-11L
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	2.52 V
Minimum supply voltage	2.28 V
Nominal supply voltage	2.4 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

LOW VOLTAGE SMD VOLTAGE & TEMPERATURE

CONTROLLED OSCILLATOR

ASTX-11L, ASVTX-11L

FEATURES:

• 3.2 x 2.5 x 0.9mm compact package

• Low current consumption

• Suitable for high-density SMT

• Vc function corresponds to PLL circuits

• IR reflow possible

RoHS

Compliant

APPLICATIONS:

• Cellular and cordless phones

• Standard OSC for exact equipment

• Mobile communication equipment

• Portable radio equipment and music player.

• PLL

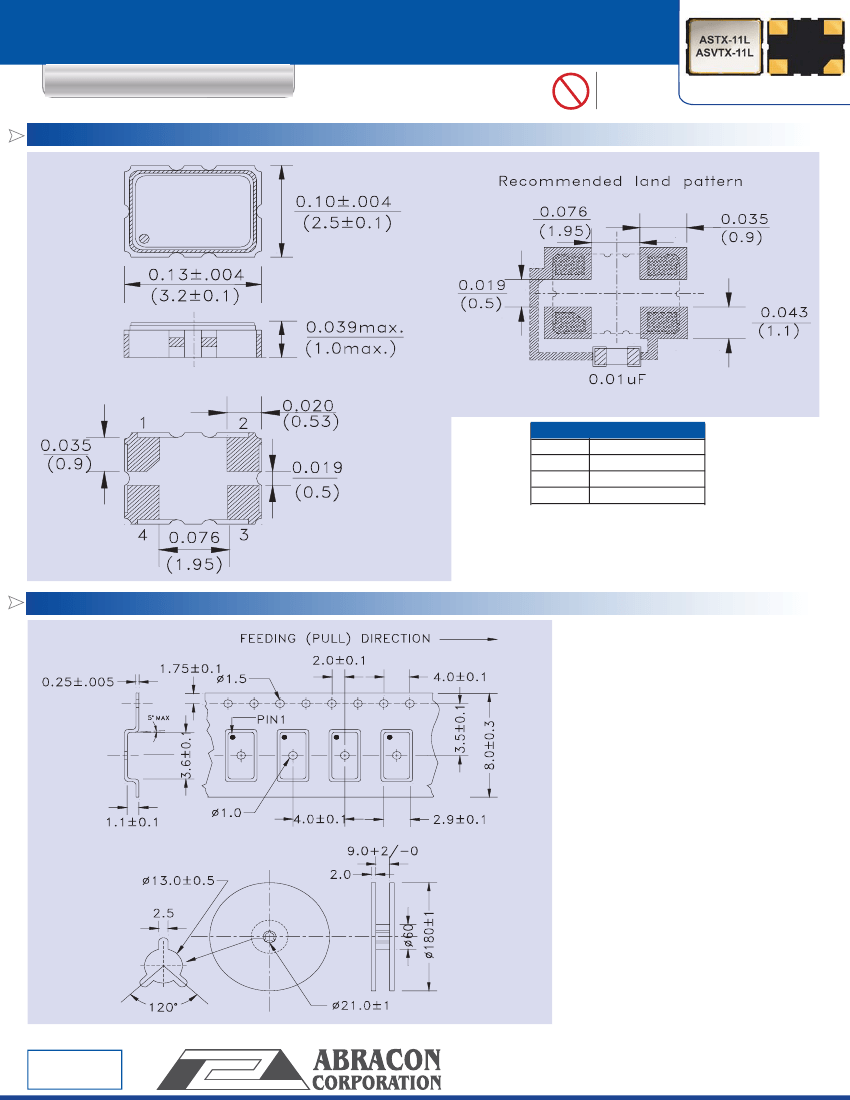

3.2 x 2.5 x 0.9mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Standard Frequencies (MHz)

Frequency Stability

∆f/f

Aging (first year at +25º C)

Operating Temperature

Storage Temperature

Supply Voltage (Vdd)

Frequency Adjustment Range

Supply Current (Icc)

Output Voltage

Output Load

Start-up Time

ASTX-11L Series or ASVTX-11L Series

13.0000 MHz to 52.0000 MHz

13.0, 16.0, 19.2, 23.104, 26.0, 32.0, 33.6, 38.4, 52.0

± 2.5 ppm (- 30 °C ~ + 75 °C)

1.0ppm

- 30° C to + 75° C

- 40° C to + 85° C

See options; 1.8V available in Q4 2008

±8ppm min./ (Vcont=Vdd/2±1.0V)

1.5mA Max/(~19.2MHz), 2.0mA Max/(~38.4MHz), 2.5mA Max/(~52MHz)

0.8 V p-p min.

10kΩ / 10 pF

5ms max. (~16.0MHz)

3.5ms max. (>16.0MHz)

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASTX-11L/ASVTX-11L -

- Frequency -

Vdd (V)

3.0±5%

2.8±5%

2.75±5%

2.4±5%

Frequency

XX.XXX MHz

Blank

Packaging

Bulk

Tape and Reel

1,000pcs

Please contact ABRACON if parts are intended for life dependent applications.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 03.11.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
