ACOS-40.0000MHZ-F-H-G-TY datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ACOS-40.0000MHZ-F-H-G-TY

ACOS-40.0000MHZ-F-H-G-TY: DescriptionSine Output Oscillator, 40MHz Nom, ROHS COMPLIANT, GULLWING, DIP-14/4; CategoryPassive components oscillator; File Size803KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ACOS-40.0000MHZ-F-H-G-TY Overview

Sine Output Oscillator, 40MHz Nom, ROHS COMPLIANT, GULLWING, DIP-14/4

ACOS-40.0000MHZ-F-H-G-TY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TRAY
Frequency Adjustment - Mechanical	NO
frequency stability	35%
Manufacturer's serial number	ACOS
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
physical size	20.2mm x 12.6mm x 5.08mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

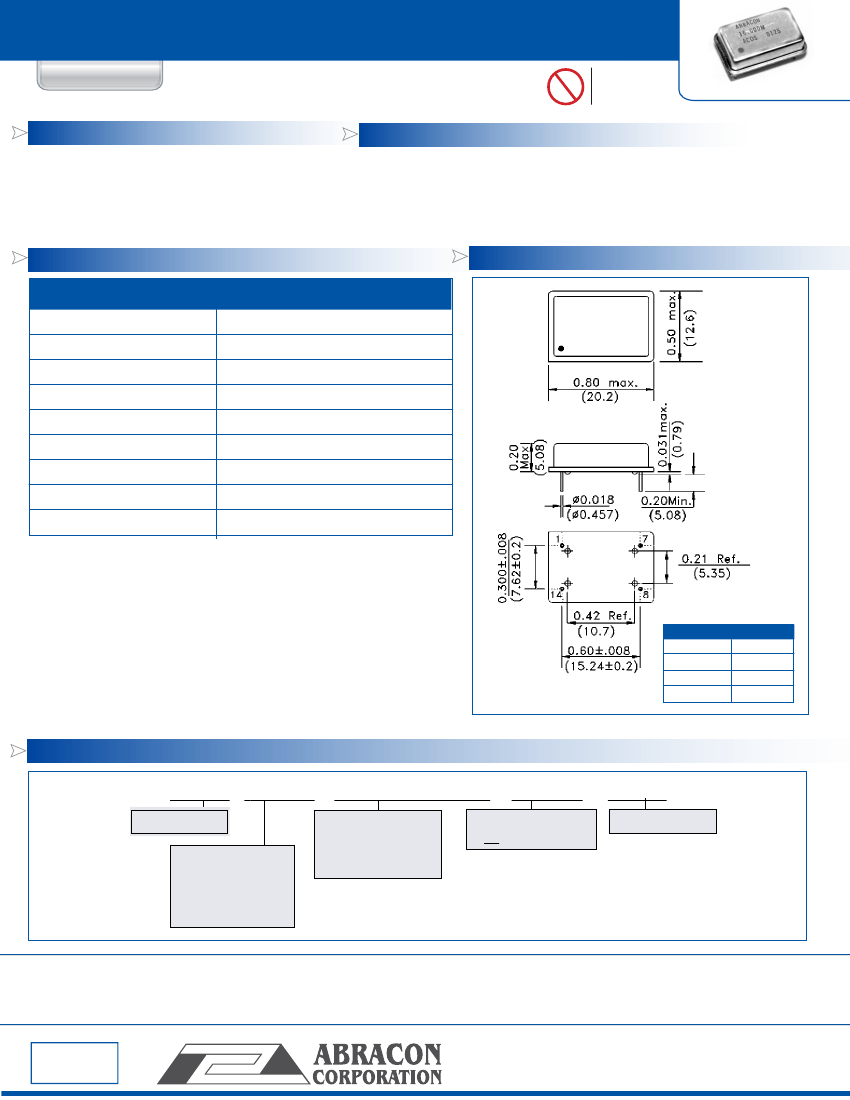

5Vdc • SINE OUTPUT, FULL-SIZE DIP

CRYSTAL CLOCK OSCILLATORS

ACOS

RoHS

Compliant

FEATUERS:

• Sine wave output.

• Wide Frequency Range.

• Low harmonic distortion.

20 x12.6 x 5.08 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Provide clock signals for microprocessors and digital circuits.

• High Output drive capability applications.

• Great for low EMI applications.

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Frequency Stability

Supply Voltage

Output load

Output power

Harmonics

Aging

8MHz - 40MHz

0°C to +70°C (see options)

-55°C to +125°C

±100ppm max. (See Options)

5.0Vdc ±10%

50W

0dBm min.

-25dBc min.

±5ppm/yr. max.

OUTLINE DIMENSIONS:

Please see environmental, and mechanical specifications, see appendix C. Group 1.

Marking, see appendix B. Recommended handling, see appendix F.

Test circuits and waveform, see appendix B.

Application notes, see appendix A.

Value added, see appendix D.

Pin Number

Function

GND / Case

Output

Vcc

Dimensions: Inches (mm)

OPTIONS & PART IDENTIFICATION:

ACOS - Frequency - Temperature - Overall Frequency Stability - Value Added

Packaging

XX.XXXXMhz

-D for -10∞Cto + 60∞C

-E for -20∞Cto + 70∞C

-F for -30∞Cto + 70∞C

-N for -30∞Cto + 85∞C

-L for -40∞Cto + 85∞C

-R

-K

-H

-C

for ±

25ppm max

30ppm max

35ppm max

50ppm max

-G

Gull Wing

-QXX (Trimmed Leads)

-TY for Tray packing

ATTENTION:

Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated,

Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application

requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme

operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 10.23.10

30332 Esperanza, Rancho Santa Margarita, California

92688

tel 949-546-8000| fax 949-546-8001

www.abracon.com

Visit

www.abracon.com

for Terms & Conditions of Sale
