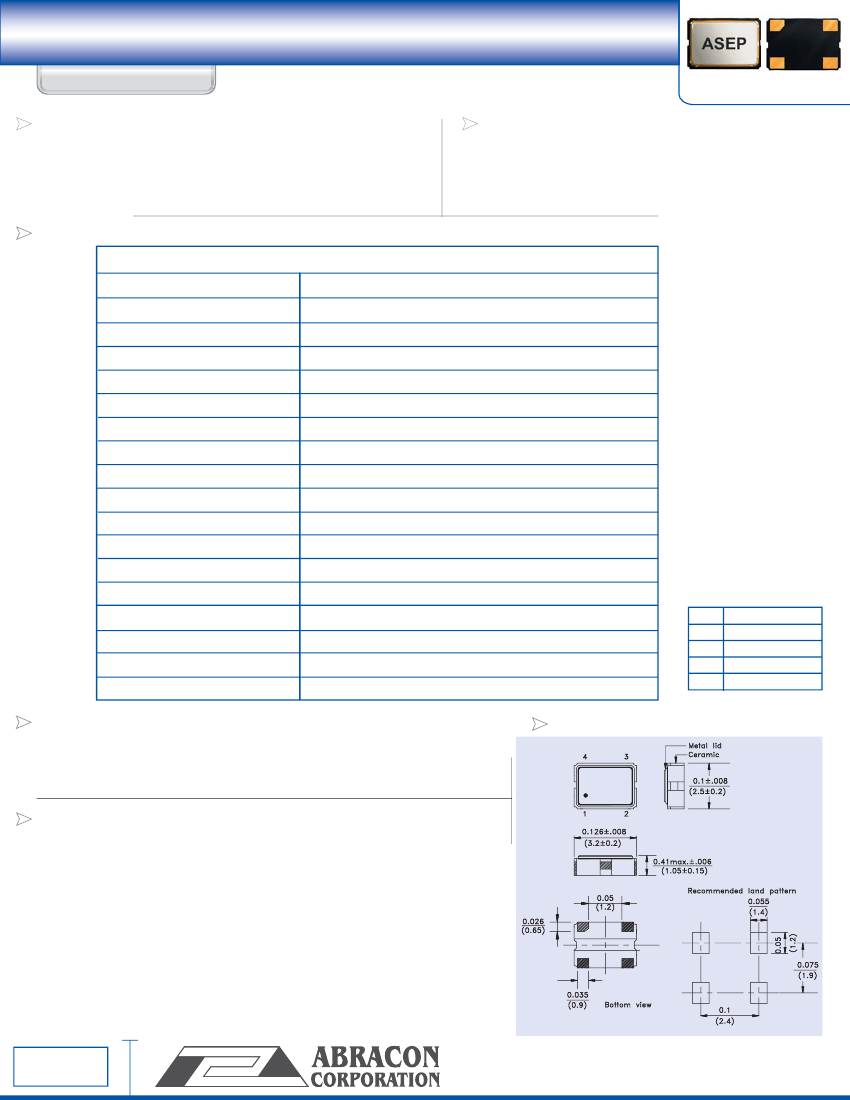

HCMOS/TTL SMD CRYSTAL CLOCK OSCILLATOR
ASEP SERIES
*RoHS COMPLIANT
3.2 x 2.5 x 1.05mm
| | | | | | | | | | | | | | |
FEATURES:
• Quick delivery within one to five days for small quantities
• Wide frequency range from 1MHz up to 125MHz
• Micro miniature size for high density applications
• -40 + 85C industrial operating temperature available
APPLICATIONS:
• Precision clock frequency for a wide range of
emerging technology applications.
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Supply Current
Disable Current
Stand-by Current
Symmetry
Output Load
Rise and Fall Time (Tr/Tf)
Output Voltage
Input (OE) Voltage
Start-up Time
Output Disable Time
Output Enable Time (OE)
Output Enable Time (ST)
Aging (first year)
1.000 MHz to 125.000 MHz
-20°C to + 70°C (see options)
- 55°C to + 125°C
± 50 ppm max. (see options)
5 Vdc ± 10%
45mA max.
30mA max.
50µA max. (see options)
40% ~ 60 % max. (see options)
15pF max. or 5 TTL max
4 ns max.
VOH = 0.9*Vdd min., VOL = 0.4*Vdd max.
VIH = 2.0V min., VIL = 0.8V max.
10mS max
100 ns max.
100 ns max.
10 ms max.
± 5ppm / year max
PIN
1
2
3
4
FUNCTION
OE or Stand-by
GND
Output
Vdd
MARKING:
- XX.XXX
- ASEP ZYX
(Frequency)
(Z: month A to L; Y: year 0 for 2000, 1 for 2001
X: Traceability code)
OUTLINE DRAWING:
OPTIONS AND PART IDENTIFICATION (Left blank if standard):
ASEP - Frequency - Temperature - Overall Frequency Stability -
Standby - Packaging
Frequency Stability options:
-
J
for ± 20 ppm max.
-
R
for ± 25 ppm max.
-
K
for ± 30 ppm max.
-
H
for ± 35 ppm max.
-
Z
for ± 100 ppm max.
Standby option:
-
B
for Standby
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev2.1-4/06
Temperature options:
-
D
for -10°C to +60°C
-
F
for -30°C to +70°C
-
N
for -30°C to +85°C
-
L
for -40°C to +85°C
Packaging option:
-
T
for Tape and Reel (1,000pcs/reel)
Dimensions: inch (mm)
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
