BD12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BD12

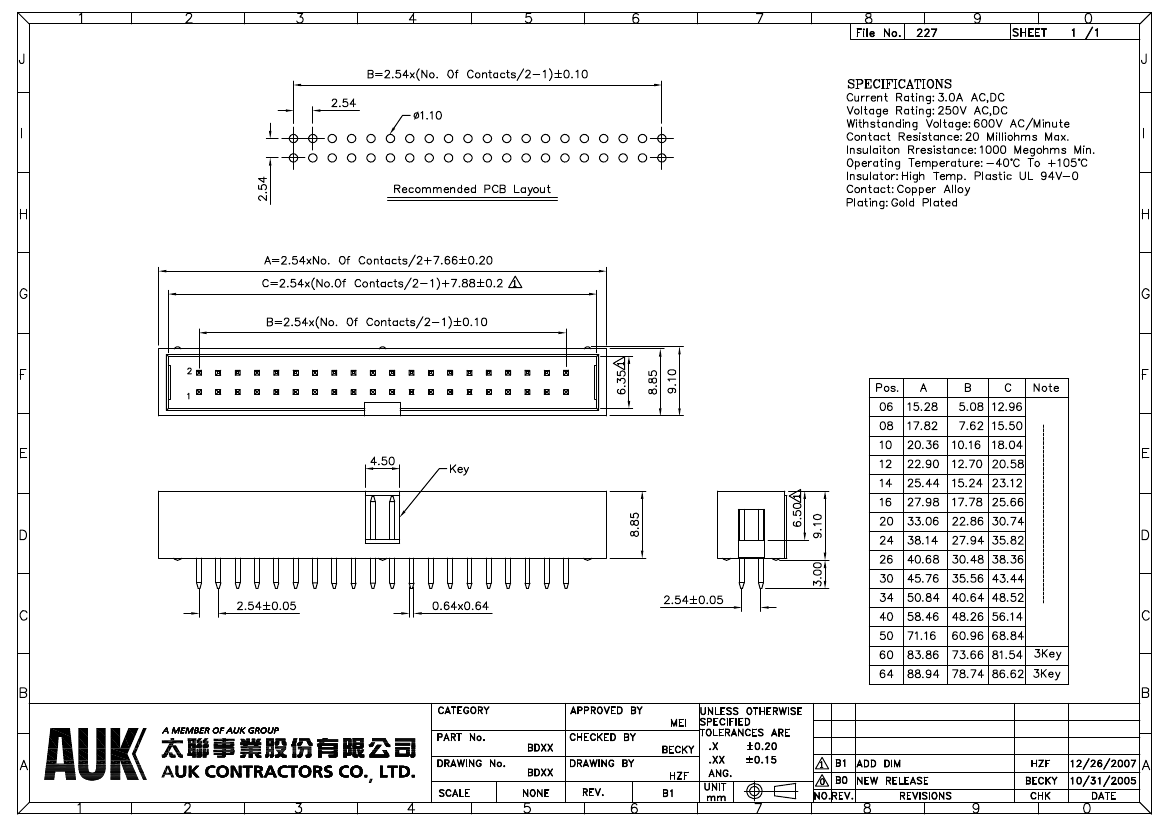

BD12: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

BD12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD12	-	-	View	Buy Now

BD12 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BD12 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.358 inch
subject depth	0.358 inch
body length	0.902 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BD
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

BD12 Related Products

	BD12	BD08	BD06	BD10	BD16	BD14	BD24
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
subject depth	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
body length	0.902 inch	0.702 inch	0.602 inch	0.802 inch	1.102 inch	1.002 inch	1.502 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	BD	BD	BD	BD	BD	BD	BD
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	8	6	10	16	14	24
