HGP.3E.650.YLLPV
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
0
0
0
1
0
0
0
3E
Female solder
68
0.00 - 0.00 mm
FFA.3E.650.YLAC11E
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
Special housing (see notes for details)
: 0 - 0 mm
PV : Watertight / Vacuum-tested
73.27 g
HGP*: Fixed receptacle, nut fixing, watertight or vacuum-tight
Performance
Configuration
Insulator
Rated Current
3E.650 : 1 Triax (50 Ohm)
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
15 Amps
Specifications
Contact Type: Solder
Vtest: 1200 V (AC), 1690 V (DC)
Impedance: 50 Ohm
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
VSWR: 1.01 + 0.27 * f/GHz
Cable type: Belden 9222,8215,8232A,HF-2426,Triax 8 Nokia,375 029 LEDE, Belden 9267
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -20°C / +80°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
R leak (He) (max): 0.0000001 mbar*l/s (if vacuum-tested)
Pressure: 30 bars
IP Rating: 68

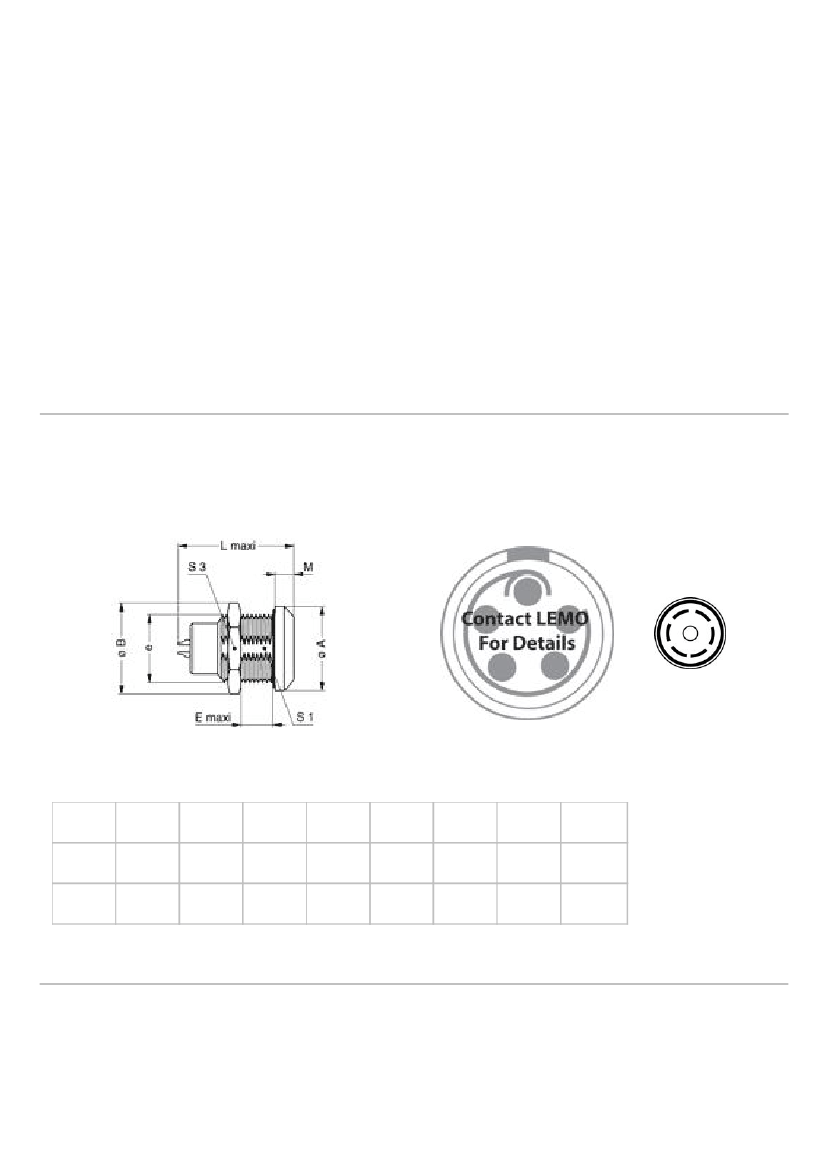

DRAWINGS
Draws
Dimensions
A
mm.
in.
31
1,22
B
34.5
1,36
E
15.5
0,61
L
39.5
1,56
M
6
0,24
S1
22.5
0,89
S3
30
1,18
e
M24x1.0
RECOMMENDED BY LEMO
