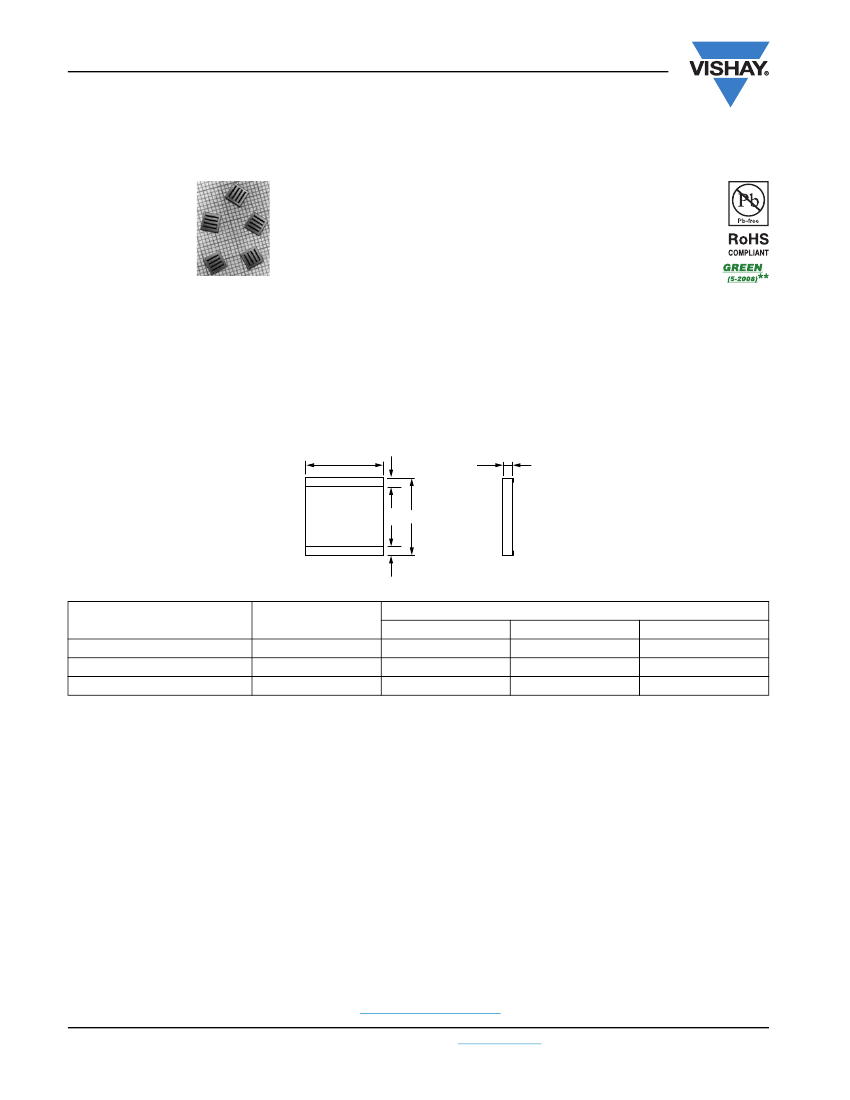

SA, SB, SC
Vishay Sfernice
Current Sensing Bondable
Chip Resistors
FEATURES
•
Low ohmic value down to 0.05
Ω
•
Tolerance down to 1 %
•
Stability 0.1 % < 2000 h at Pn at + 70 °C
•
Low noise < 35 dB
•
Low TCR 100 ppm/°C
•
Wire bondable
•
Compliant to RoHS directive 2002/95/0EC
This thin film chip resistor fits applications as force balance
scales, E beam deflection systems, switching power
supplies, etc... all rely on current sensors to feed back and
control the current.
Gold pads are compatible with thermosonic or ultrasonic
bonding of gold and aluminum wires.
DIMENSIONS
in millimeters
A
C
0.4
B
C
SERIES DISSIPATION
SA
SB
SC
POWER
0.5 W
2W
6W
DIMENSIONS
A
1.5
3
5
B
1.5
3
5
C
0.2
0.4
0.5
ELECTRICAL SPECIFICATIONS
Ohmic values and
associated tolerance:
0.05
Ω ≤
R < 0.2
Ω
± 5 %
0.2
Ω ≤
R < 0.5
Ω
± 2 %
0.5
Ω ≤
R < 1
Ω
± 1 %
higher values and higher
tolerances on request
MECHANICAL SPECIFICATIONS
Substrate:
Resistive element:
Glassivation:
Bonding pads:
Backside metallization:
Alumina
NiCr
Ta
2
O
5
Gold
On request Ni Au
Power dissipation at + 70 °C:
SA: 0.5 W
SB: 2 W
SC: 6 W
Temperature coefficient:
Noise:
± 100 ppm/°C
± 50 ppm/°C on request
- 35 dB maximum
ENVIRONMENTAL SPECIFICATIONS
Operating
temperature range:
Storage temperature:
- 55 °C to + 125 °C
- 55 °C to + 155 °C
Low ohmic value chip resistors are also available with
solderable or weldable wraparound terminations.
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
www.vishay.com
38
For technical questions, contact:
sfer@vishay.com
Document Number: 53013
Revision: 25-Aug-09
SA, SB, SC
Current Sensing Bondable
Chip Resistors
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: SAKU588G0124
Vishay Sfernice
S
GLOBAL MODEL
SA
SB
SC
A
K
U
TCR
5
8
8
VALUE
G
0
1
2
4
OPTION
Leave blank
if no option
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
K
= ± 100 ppm/°C
H
= ± 50 ppm/°C
on request
R
or
U
= Decimal
Historical Part Number example: S*A 100 U588 G R0124 e4
S*A
GLOBAL MODEL
SA
SB
SC
100
TCR
K
= ± 100 ppm/°C
H
= ± 50 ppm/°C
on request
U588
VALUE
R
or
U
= Decimal
G
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
R0124
OPTION
Leave blank
if no option
e4
RoHS
Document Number: 53013
Revision: 25-Aug-09
For technical questions, contact:
sfer@vishay.com
www.vishay.com
39
