ZTX712Q datasheet, PDF - EEWORLD Datasheet

ZTX712Q: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size43KB，2 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

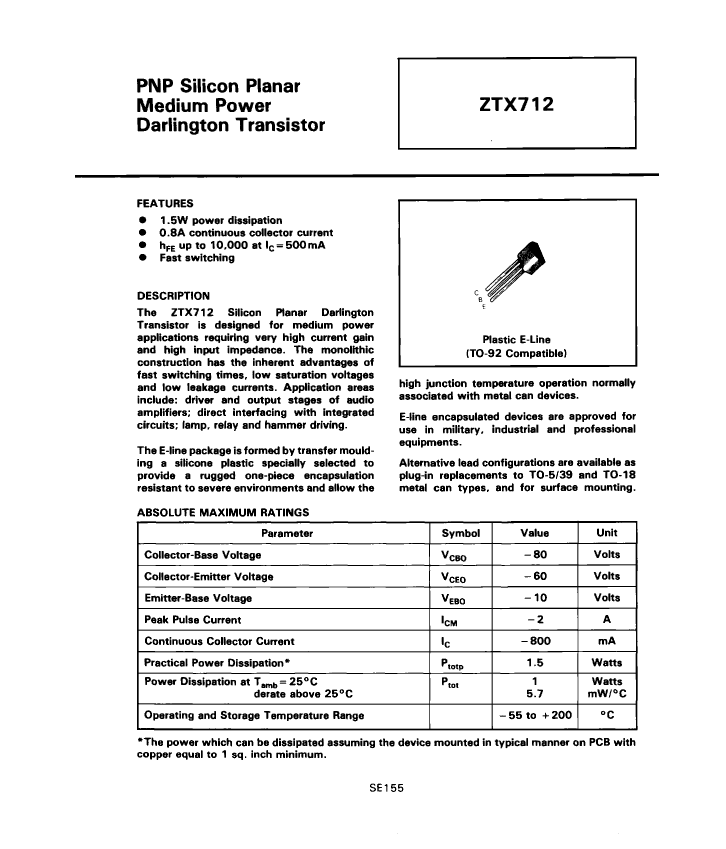

ZTX712Q Overview

Small Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

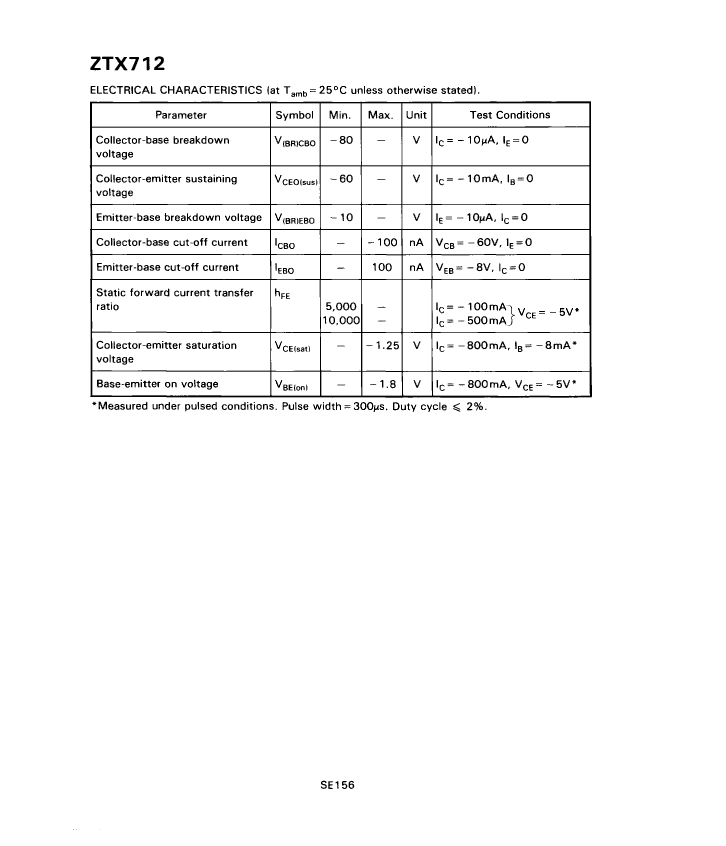

Parameter Name	Attribute value
Parts packaging code	TO-92
package instruction	IN-LINE, R-PSIP-W3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	10000
JESD-30 code	R-PSIP-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
