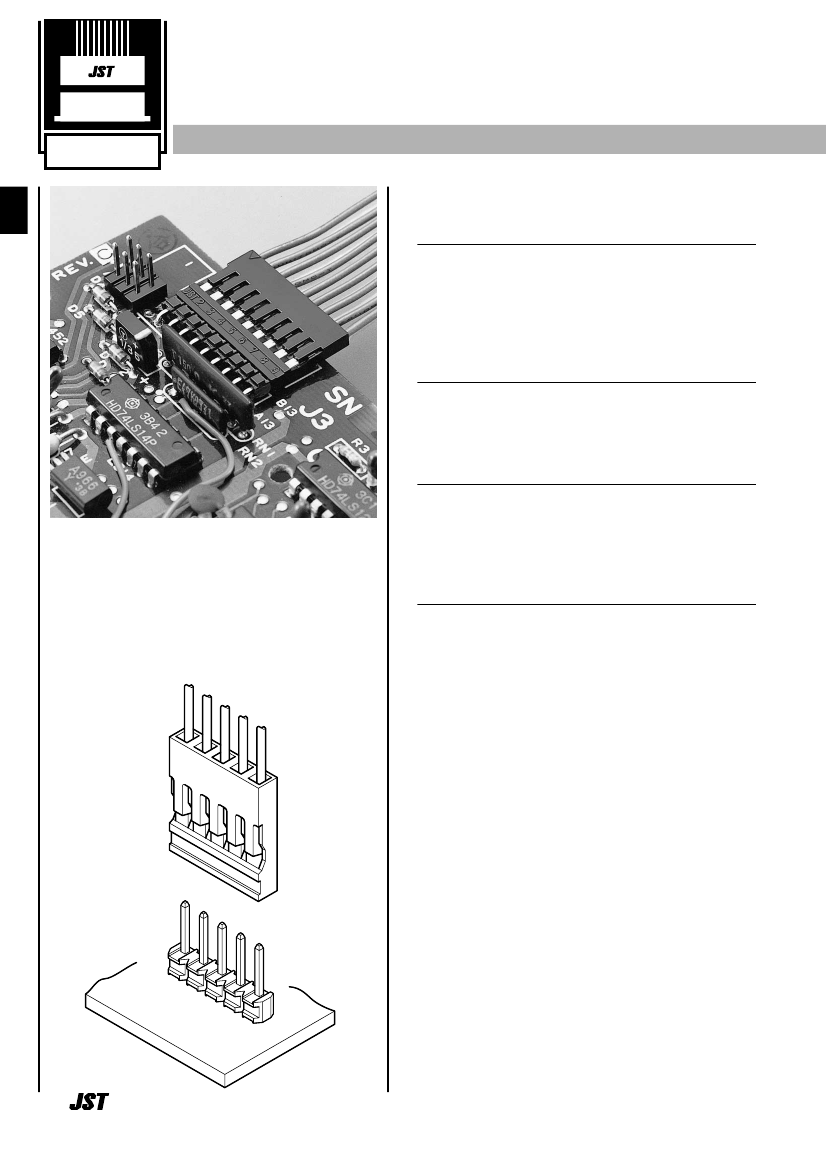

Crimp
RE
CONNECTOR HEADER
•
2.54mm
(.100") pitch
Disconnectable Crimp style connectors and headers
Features ––––––––––––––––––––––––
• Reliable, yet low in cost
Our unique, double-leaf spring contact withstands the stresses
caused by repeated mating and unmating and ensures a stable
high-pressure connection. The contacts and headers are
selectively gold-plated to reduce costs. Depending on the
application, fully tin-plated contacts and headers are available to
further reduce costs.
• Space-saving, high-density design
Measuring only 16.54mm (.651") in height and 2.54mm (.100")
thick when mounted on a printed circuit board, the RE
connector and header require less mounting space and facilitate
high-density circuit design.
• Easy contact insertion
A slight force is all that is needed to insert the contacts into the
housing, because the housing has lances. The position of the
The RE series was developed as a reliable,
low-cost, crimp style connector for
connecting wires to printed circuit boards.
It is well suited for completing the internal
connections of office automation
equipment, such as personal computers,
office computers, and their peripheral
devices.
contacts in the housing can be visually checked. This facilitates
insertion of the contacts in the housing.
• It can be cut to any length to provide a header
with any number of circuits
Notches are provided on the insulator that allow it to be cut to
any length without using special tools.
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (5 circuits/AWG #24)
• Voltage rating: 250V AC, DC
• Temperature range: (including temperature rise in applying
electrical current)
-55˚C to +105 ˚C(gold plated)
-55˚C to +85˚C(tin-plated)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/30m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #30 to #24
• Applicable PC board thickness: 1.2 to 1.6mm(.047" to .063")
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
150
1
Certified LR20812
RE
CONNECTOR
•
HEADER
Header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
0.64
(.025)
2.54
(.100)
1.27
(.050)
[2.66
(.105)]
6.0(.236)
Top entry type
Model No.
RE-H(*)
2TD-1130
RE-H(*)
2TD-1190
Material
Wafer
PBT,
UL94V-0,
black
Post
Finish
Nickel-undercoated,
gold-plated
Copper-undercoated,
tin/lead-plated
Brass
3.0
2.54
(.118) (.100)
Side entry type
Model No.
Material
Wafer
PBT,
UL94V-0,
black
Side entry type
0.64
(.025)
2.54
(.100)
1.27
(.050)
Gold-plated area
4.0
(.157)min.
[2.66
(.105)]
6.0(.236)
Post
Finish
Nickel-undercoated,
Mating section: Gold-plated
Solder tail: Tin/lead-plated
Copper-undercoated,
tin/lead-plated
RE-H(*)
2SD-1110
RE-H(*)
2SD-1190
Brass
3.0
(.118)
Polarizing key ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
0.8
(.031)
4.2(.165)
1.5
(.059)
1.52
(.060)
Note:
1. A two-digit number (01 to 30) representing the number of circuits
should be inserted in (* ).
Determine the number depending on the number of circuits of the
housing or header.
2. Contact JST for special products.
2.54
(.100)
Q'ty / bag
2,000
PK-RF-1
Material
PBT, UL94V-0, natural (white)
Polarizing key: The polarizing key in the housing prevents misinsertion of the
connector to the header.
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
Side entry type
[16.6(.654)]
1.46
(.057)
min.
4.1(.161)min.
3.0 2.9
(.118) (.114)
0.9
+0.1
0
0
(.035
+.004
)dia.
2.54
±
0.05
(.100
±
.002
)
1.27
(.050)
min.
0
0.9
+0.1
2.54
±
0.05
1.27
(.035
+.004
)dia. (.100
±
.002
)
(.050)
min.
0
4.06
(.160)
14.0(.551)
[ 2.66(.105) ]
Note:
1. Tolerances are non-cumulative:
±
0.05mm (
±
.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
RF-SC22**
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK RF-SC22
APLNC RF-SC22
3.0
(.118)
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
Strip-crimp applicator MKS-SC
with safety cover
–
