EMI/RFI
Environmental
Backshells
AS85049/78

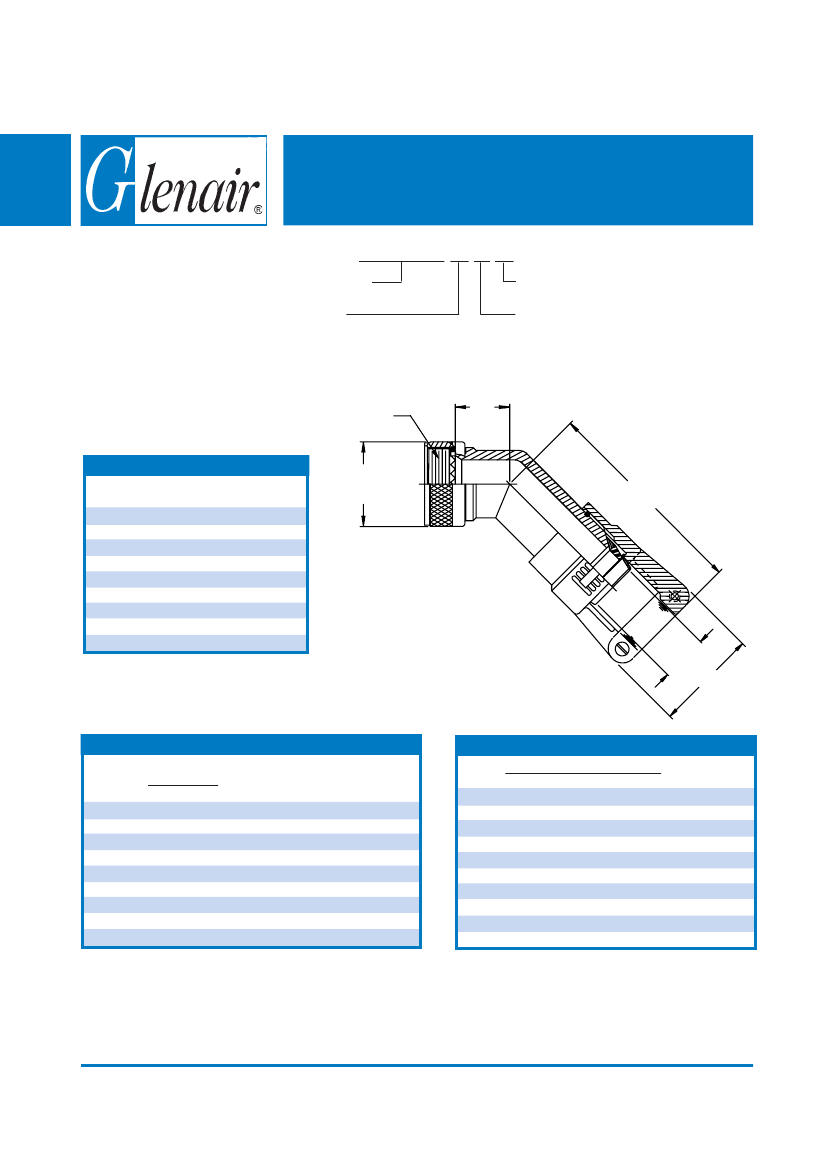

EMI/RFI Environmental Backshell
M85049/78-11 W 01
Basic Part No.
Shell Size
Clamp Size
Finish
N = Electroless Nickel
W = 1,000 Hr. Cadmium Olive
Drab Over Electroless Nickel
F
Glenair Connector
Designator H
MIL-DTL-38999
Series III & IV,
EN3645
A Thread
TABLE I
Shell
Size
9
11
13
15
17
19
21
23
25
A Thread
Class 2B
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
B Dia
Max
.75 (19.1)
.85 (21.6)
1.00 (25.4)
1.15 (29.2)
1.25 (31.8)
1.40 (35.6)
1.55 (39.4)
1.65 (41.9)
1.85 (47.0)
B
Dia
G
Cable
Range
H
TABLE II
Shell
Size
09
11
13
15
17
19
21
23
25
Clamp Size
Min Max
01
02
01
03
02
04
02
05
02
06
03
07
03
08
03
09
04
10
F
±.062
.398
.458
.518
.588
.678
.868
.868
.958
.958
(1.6)
(10.1)
(11.6)
(13.2)
(14.9)
(17.2)
(22.0)
(22.0)
(24.3)
(24.3)
±.062
3.088
3.148
3.208
3.298
3.408
3.598
3.598
3.748
3.748
G
(1.6)
(78.4)
(80.0)
(81.5)
(83.8)
(86.6)
(91.4)
(91.4)
(95.2)
(95.2)
TABLE III
Cable Range
Clamp
Min
Max
Size
.062 (1.6) .125 (3.2)
01
.125 (3.2) .250 (6.4)
02
.250 (6.4) .375 (9.5)
03
.375 (9.5) .500 (12.7)
04
.500 (12.7) .625 (15.9)
05
.625 (15.9) .750 (19.1)
06
.750 (19.1) .875 (22.2)
07
.875 (22.2) 1.000 (25.4)
08
1.000 (25.4) 1.125 (28.6)
09
10 1.125 (28.6) 1.250 (31.8)
H
Max
.80 (20.3)
1.00 (25.4)
1.10 (27.9)
1.20 (30.5)
1.25 (31.8)
1.40 (35.6)
1.50 (38.1)
1.65 (41.9)
1.75 (44.5)
1.90 (48.3)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodation range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
39-20
