TVPS00RS-25-19SE datasheet, PDF

Datasheet> All Categories > The connector> The connector> TVPS00RS-25-19SE

TVPS00RS-25-19SE: DescriptionMIL Series Connector, 19 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size449KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

TVPS00RS-25-19SE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TVPS00RS-25-19SE	-	-	View	Buy Now

TVPS00RS-25-19SE Overview

MIL Series Connector, 19 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle

TVPS00RS-25-19SE Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TRI-START, STANDARD: MIL-DTL-38999, EMI SHIELDED, FIREWALL
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; MOISTURE RESISTANT
Filter function	YES
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	TVPS00RS
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	25
Termination type	CRIMP
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

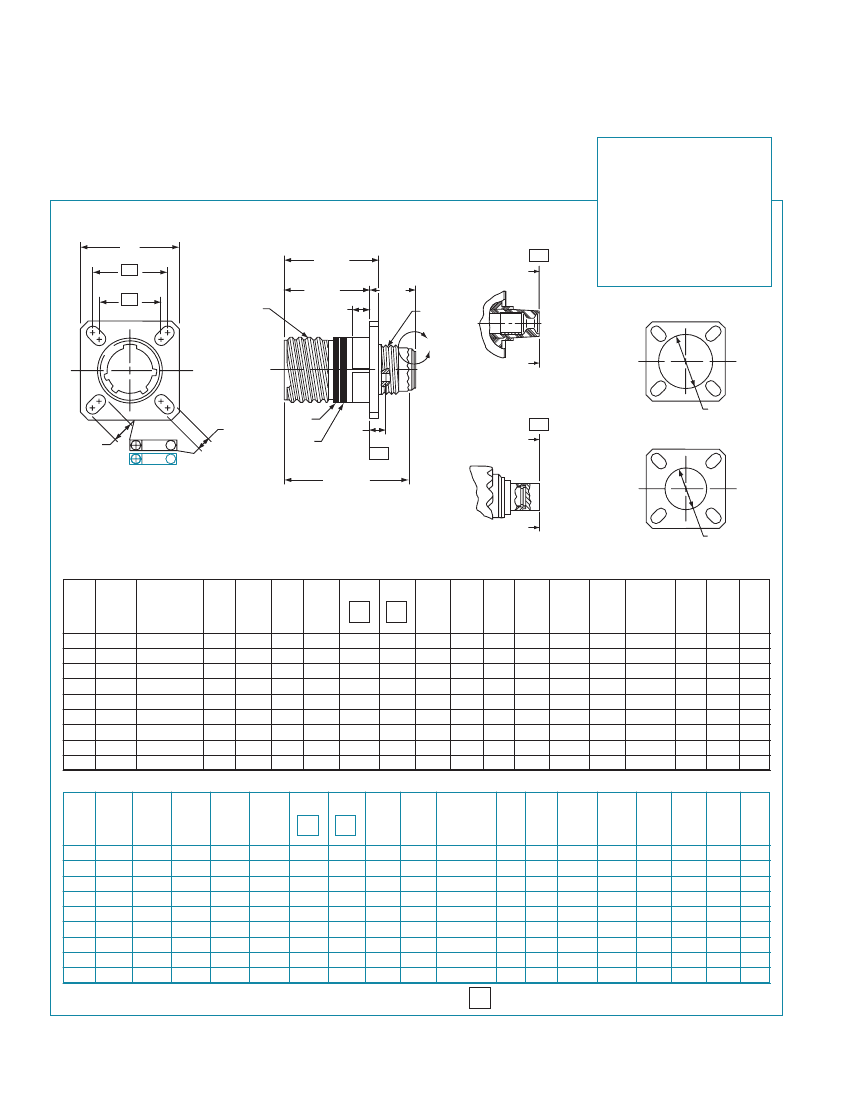

TVP00R (D38999/20) –

crimp, metal

CTVP00R (D38999/20) –

crimp, composite

wall mounting receptacle

2 PLACES

THREAD

LL (TV)

(CTV)

M (TV)

(CTV)

L (TV)

(CTV)

V THREAD

VIEW D

FOR SIZE 8 COAXIAL ONLY,

RELATIVE TO –A–

.861 MAX

21.87 MAX

(TV)

Part number reference.

See how to order, pages 43-46

to complete.

TVP00RW-XX-XXX

TVPS00RK-XX-XXX

TVPS00RF-XX-XXX

TVPS00RS-XX-XXX

CTVP00RW-XX-XXX

CTVPS00RF-XX-XXX

D38999/20

PANEL HOLE

DIMENSIONS

.909 MAX

23.09 MAX

(CTV)

VIEW D

FOR SIZE 8 TWINAX ONLY,

RELATIVE TO –A–

–A–

1.037 MAX

26.34 MAX

(TV)

BACK PANEL

MOUNTING

4 PLACES

.005 M

.13 M

4 PLACES

RED

BAND†

BLUE

BAND††

Z (TV)

(CTV)

1.240 MAX

31.50 MAX

† Red band indicates fully mated

†† Blue band indicates rear release contact retention system

1.084 MAX

27.53 MAX

(CTV)

FRONT PANEL

MOUNTING

Inches

Dia.

Back

+.008 Max. Max Panel

Max. –.006 (TV) (CTV) Mount

.948 .128 .153 .198

.650

1.043 .128 .153 .198

.800

1.137 .128 .153 .198

.910

1.232 .128 .153 .198 1.040

1.323 .128 .153 .198 1.210

1.449 .128 .153 .198 1.280

1.575 .128 .183 .228 1.410

1.701 .154 .183 .228 1.530

1.823 .154 .183 .228 1.660

Shell

Size

Shell

Size

Code

B Thread

Class 2A

0.1P-0.3L-TS

(Plated)

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

Max. Max.

(TV) (CTV)

.469 .514

.500 .545

+.000

–.005

(TV)

.820

.790

+.000

–.005

(CTV)

.775

.745

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

Dia.

Front

Max.

Panel Panel

Mount Thickness

.510

.234

.620

.234

.740

.234

.900

.234

1.010

.234

1.130

.234

1.250

.204

1.360

.204

1.470

.204

+.006

–.000

(TV)

.905

±.005 +.008

(CTV) –.006

.913 .216

.913 .194

.913 .173

.913 .194

.911 .194

.911 .242

Millimeters

Shell

Shell Size

Size Code

Max.

(TV)

11.91

12.70

+.00

Max.

–.13

(CTV) (TV)

13.06 20.83

13.84 20.07

+.00

–.13

(CTV)

19.69

18.92

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

38.10

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

Max

24.1

26.5

28.9

31.3

33.7

36.9

40.1

43.3

46.4

+.20

–.13

3.25

3.91

Thread

Metric

M12X1-6g

M15X1-6g

M18X1-6g

M22X1-6g

M25X1-6g

M28X1-6g

M31X1-6g

M34X1-6g

M37X1-6g

Dia.

Back

Max. Max. Panel

(TV) (CTV) Mount

3.89 5.03 16.66

3.89 5.03 20.22

3.89 5.03 23.42

3.89 5.03 26.59

3.89 5.03 30.96

3.89 5.03 32.94

4.65 5.79 36.12

4.65 5.79 39.29

4.65 5.79 42.47

Dia.

Front

Panel

Mount Max.

13.11 5.94

15.88 5.94

19.05 5.94

23.01 5.94

25.81 5.94

28.98 5.94

32.16 5.18

34.93 5.18

37.69 5.18

+.15

–.00

(TV)

22.99

±.13

(CTV)

23.19

23.14

+.20

–.13

5.49

4.93

4.39

4.93

6.15

All dimensions for reference only
