M8GNP-103: DescriptionSHIELDED, VARIABLE INDUCTOR; CategoryPassive components; File Size60KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet View All

M8GNP-103 Overview

SHIELDED, VARIABLE INDUCTOR

Preview

Download Datasheet

View All

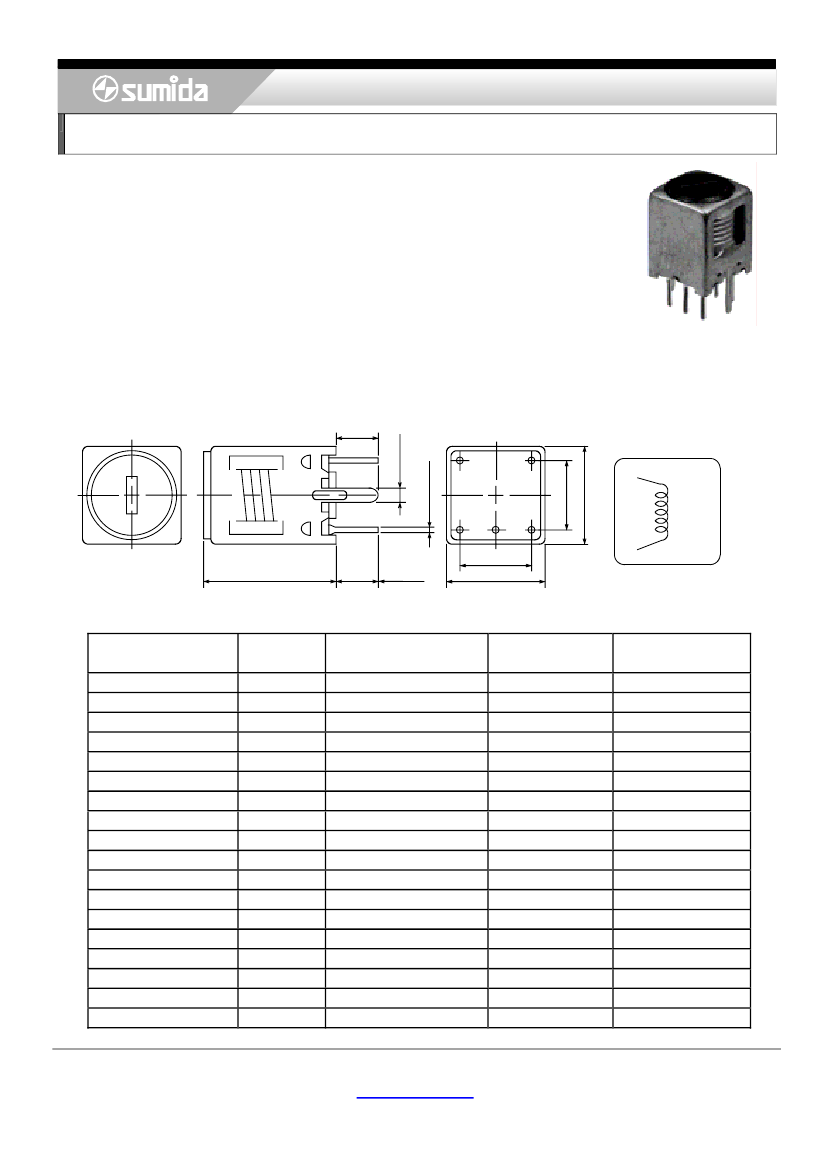

IFT COILS < Pin Type: M-8 Series>

Type: M-8G

◆

Product Description

・8.2×8.2mm

Max.(L×W), 11.0mm Max. Height.

・Inductance:27mH

Max.

・Operating

frequency:500kHz Max.

・In

addition to the standard versions of parameters shown here, custom designs

are available to meet your exact requirements

◆

Feature

・Variable

inductance shielded type.

・Can

be used as bias oscillation transformer.

・RoHS

Compliance

◆

Dimensions (mm)

3.5±0.5

1.0±0.2

+0.1

φ0.5-0.05

◆

Connection

(Bottom View)

4.5±0.2

7.7±0.5

③

②

S ①

④

11.0 Max.

+1.0

3.5 -0.5

4.5±0.2

7.7±0.5

⑥

◆

Specification

Part No.

M8GNP-1Ø2

M8GNP-122

M8GNP-152

M8GNP-182

M8GNP-222

M8GNP-272

M8GNP-332

M8GNP-392

M8GNP-472

M8GNP-562

M8GNP-682

M8GNP-822

M8GNP-1Ø3

M8GNP-123

M8GNP-153

M8GNP-183

M8GNP-223

M8GNP-273

Stamp

102

122

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

Inductance

[Variable] at 1kHz

1.0mH±6%

1.2mH±6%

1.5mH±6%

1.8mH±6%

2.2mH±6%

2.7mH±6%

3.3mH±6%

3.9mH±6%

4.7mH±6%

5.6mH±6%

6.8mH±6%

8.2mH±6%

10.0mH±6%

12.0mH±6%

15.0mH±6%

18.0mH±6%

22.0mH±6%

27.0mH±6%

Unloaded Q

[Min.] at 100kHz

100

110

100

105

110

115

100

D.C.R.(Ω)

[MAX.](at＝20℃)

2.5

2.9

3.2

3.7

4.3

4.9

5.6

6.2

6.8

9.2

10.7

13.9

16.6

21.6

26.6

35.8

40.3

46.3

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
