MSATA-001-0012-1-1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MSATA-001-0012-1-1

Preview

MSATA-001-0012-1-1: DescriptionTelecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size63KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MSATA-001-0012-1-1 Overview

Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT

MSATA-001-0012-1-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2143618007
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
YTEOL	8
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MSATA
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

MSATA

Amphenol

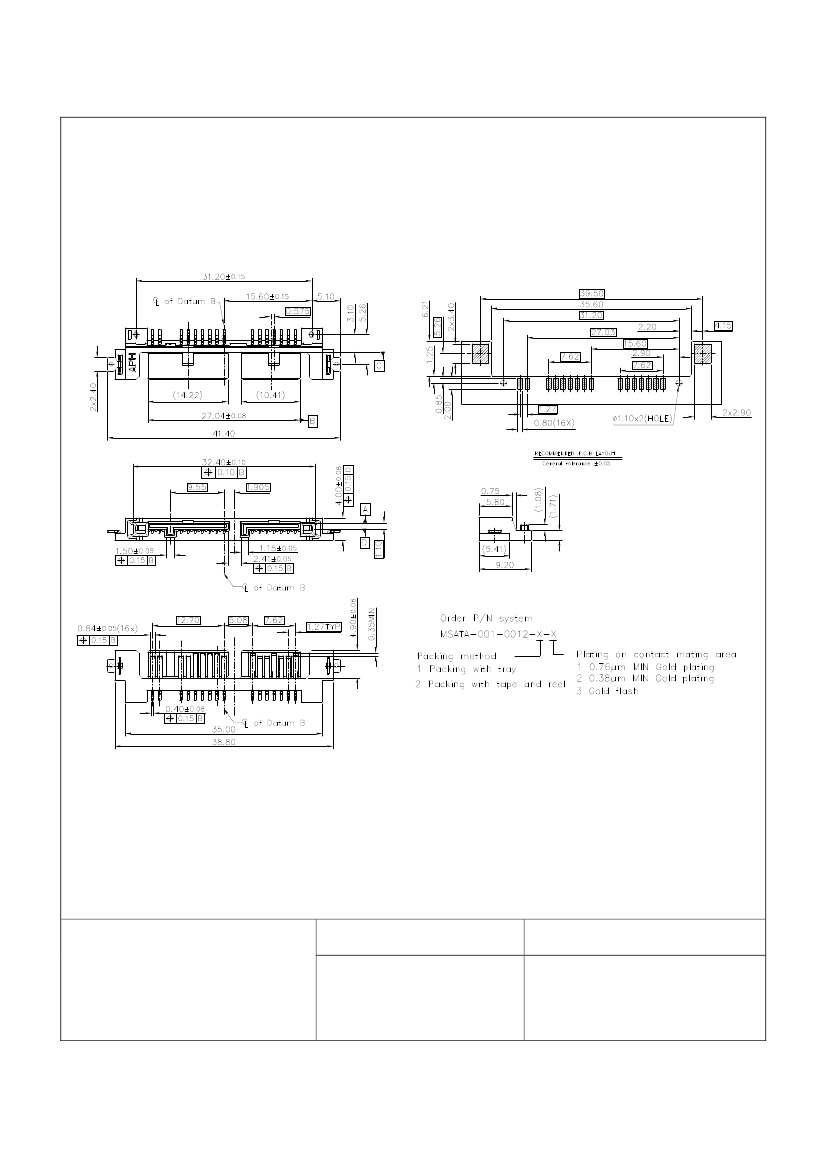

Part Number: MSATA-001-0012-X-X

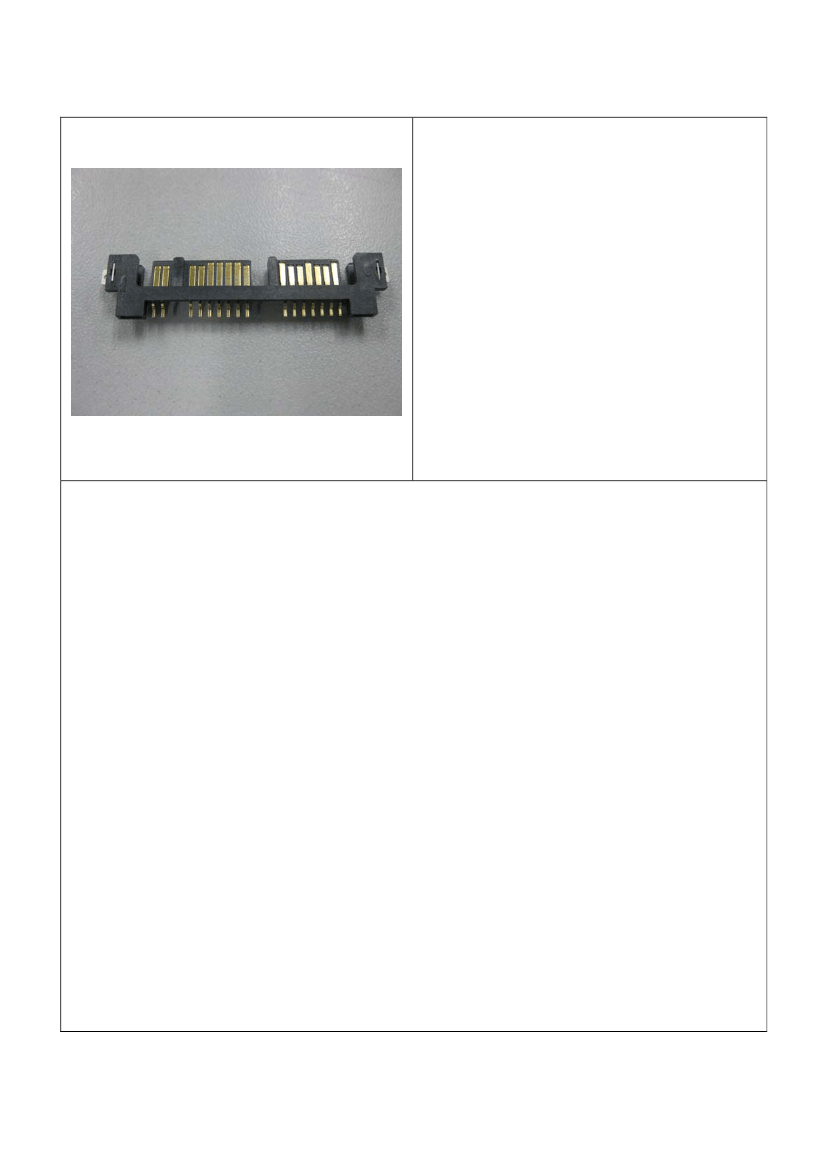

Micro SATA,7Pin+9Pin Plug

Reverse , R/A SMT TYPE

- Comply to Small Form Factor

Specification.

- SMT compatible

- Various Gold Thicknesses Available.

- High Reliability.

- RoHS Compliance

- Amphenol product specification

Compliance

1. Material:

A. Pins: Copper Alloy.

B. Board lock: Copper Alloy.

C. Insulator: Glass-filled high temperature thermoplastic, black, UL 94V-0.

2. Finish :

All Pins :

Gold (Refer to the P/N System on page 2 for Gold plating thickness) plated

at the mating area,

Gold flash plated at solder tail area and 50 micro-inch Min (1.27 um Min)

Nickel under plated.

Board lock:

1.27 micron min Matte Tin plating over Nickel under plating.

3. Electrical specifications:

Current rating: 1.5A min.

Contact Resistance: 30 milliohms max.

Insulation Resistance: 1000 M-ohms min.

Dielectric Withstanding Voltage: 1000V for 1 minute.

Temperature: -40° to +105°C.

4. Mechanical specifications:

Durability: 500 cycles min for MSATA-001-0012-X-1.

250 cycles min for MSATA-001-0012-X-2.

50 cycles min for MSATA-001-0012-X-3.

5. Packaging:

Parts to be packed in Tape and Reel or Tray, All packaging materials to be

approved by Amphenol engineering.

Website: http://www.amphenol.com.cn

Revision: A

Release Date: Mar 15 2010

MSATA-001-0012-1-1 Related Products

	MSATA-001-0012-1-1	MSATA-001-0012-1-2	MSATA-001-0012-1-3	MSATA-001-0012-2-1	MSATA-001-0012-2-2	MSATA-001-0012-2-3
Description	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (15)	GOLD FLASH	GOLD (30)	GOLD (15)	GOLD FLASH
Contact completed and terminated	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	16	16	16	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	2143618007	2143618008	-	2143618010	2143618011	-
YTEOL	8	8	-	8	8	-
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	-	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	-
Manufacturer's serial number	MSATA	-	MSATA	MSATA	-	MSATA
