MIC3832BJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MIC3832BJ

MIC3832BJ: DescriptionSwitching Controller, Current-mode, 1A, 250kHz Switching Freq-Max, CDIP16, CERDIP-16; CategoryPower/power management The power supply circuit; File Size372KB，9 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC3832BJ Overview

Switching Controller, Current-mode, 1A, 250kHz Switching Freq-Max, CDIP16, CERDIP-16

MIC3832BJ Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	28 V
Minimum input voltage	16 V
JESD-30 code	R-GDIP-T16
length	19.304 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	1 A
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	CURRENT FED PUSH-PULL
Maximum switching frequency	250 kHz
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

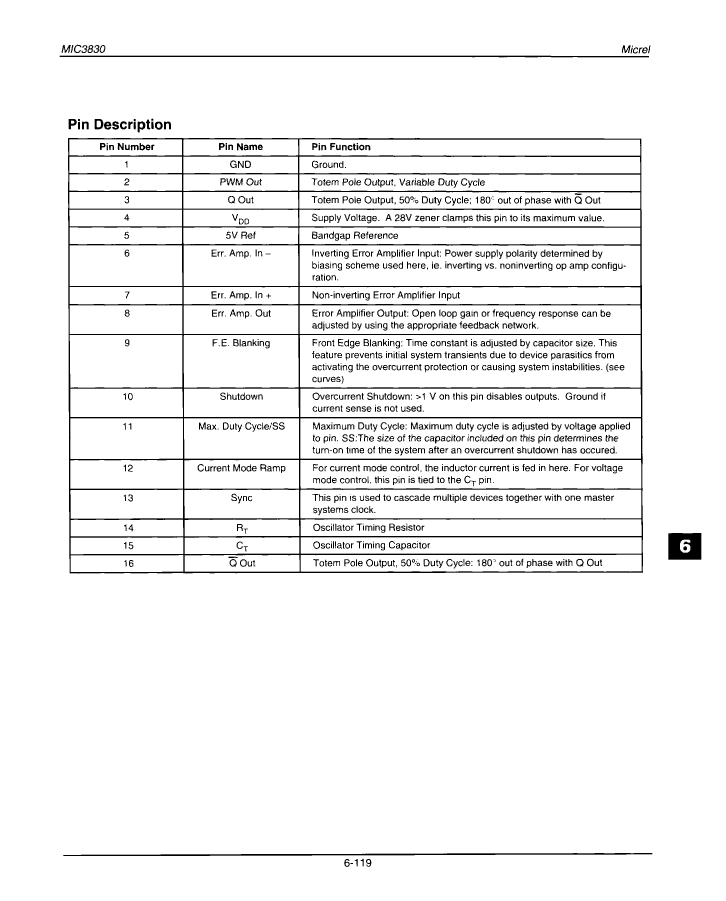

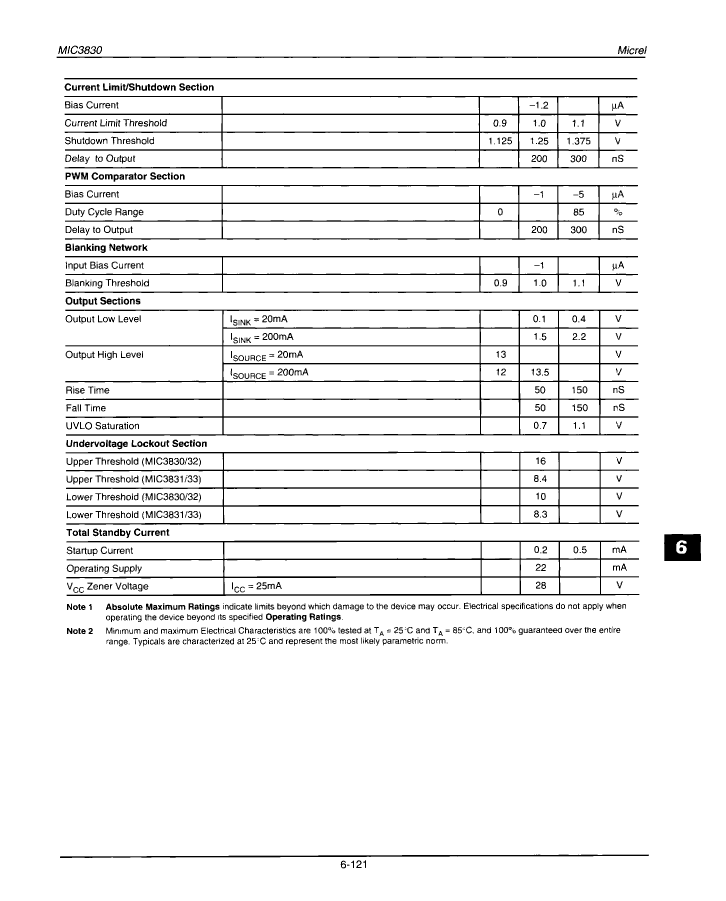

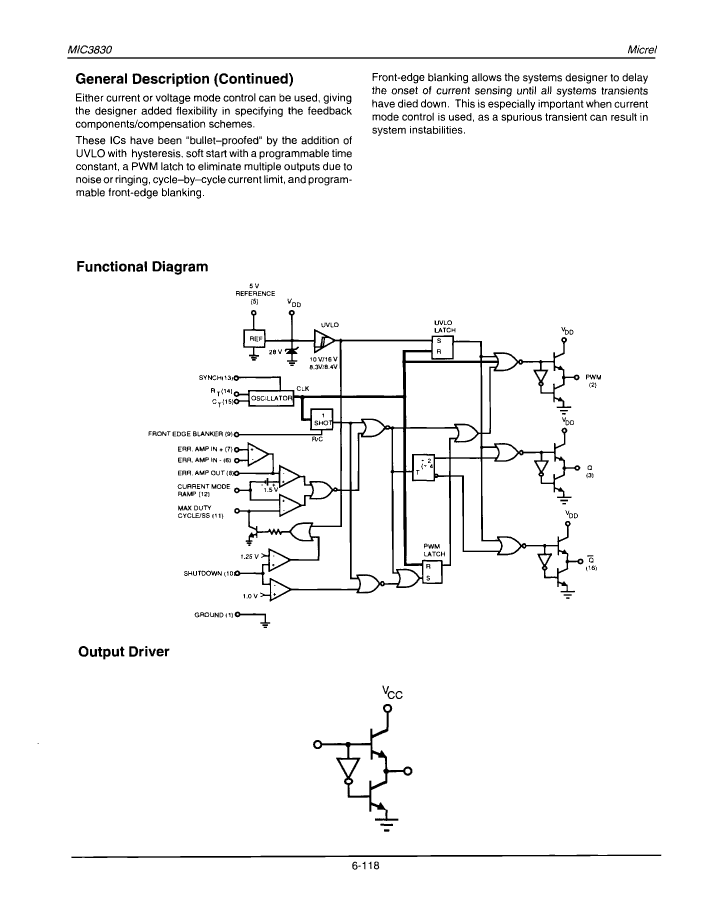

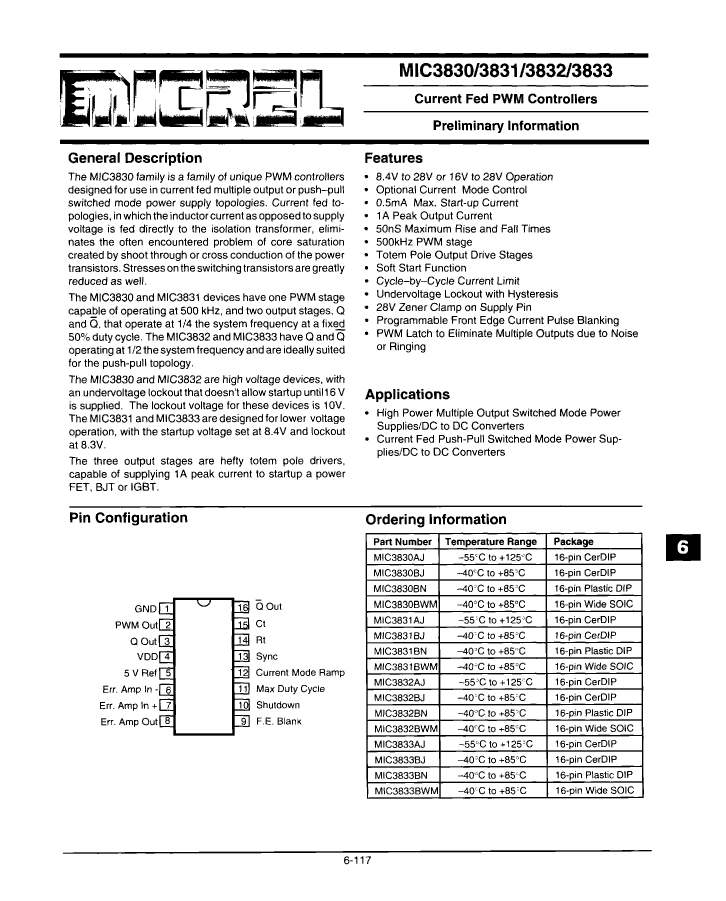

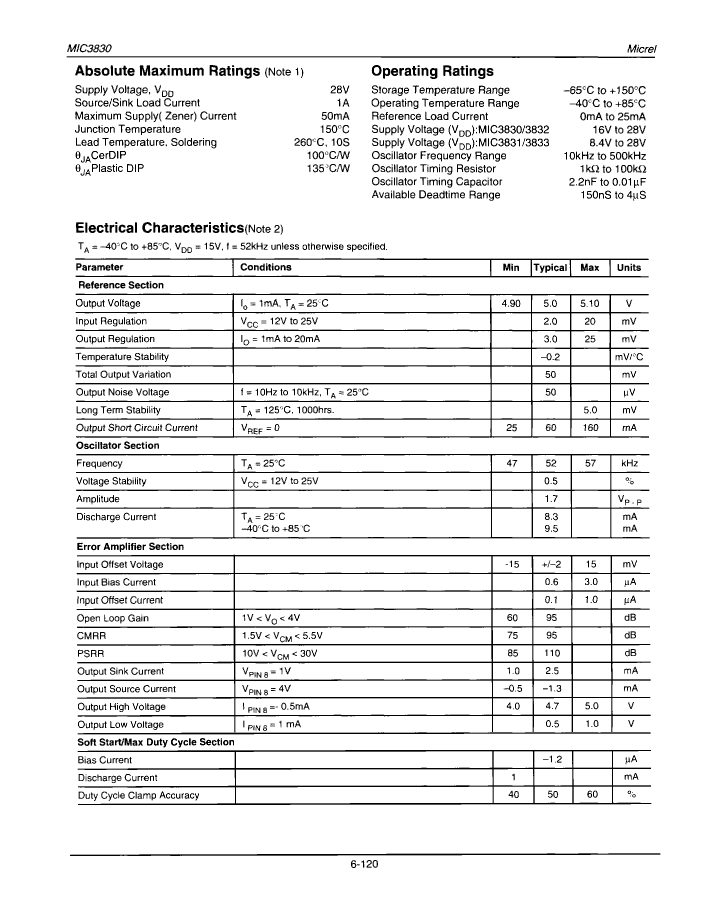

Preview

Download Datasheet

View All

MIC3832BJ Related Products

	MIC3832BJ	MIC3831BJ	MIC3833BJ
Description	Switching Controller, Current-mode, 1A, 250kHz Switching Freq-Max, CDIP16, CERDIP-16	Switching Controller, Current-mode, 1A, 125kHz Switching Freq-Max, CDIP16, CERDIP-16	Switching Controller, Current-mode, 1A, 250kHz Switching Freq-Max, CDIP16, CERDIP-16
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	28 V	28 V	28 V
Minimum input voltage	16 V	8.4 V	8.4 V
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
length	19.304 mm	19.304 mm	19.304 mm
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum output current	1 A	1 A	1 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
surface mount	NO	NO	NO
Switch configuration	CURRENT FED PUSH-PULL	CURRENT FED PUSH-PULL	CURRENT FED PUSH-PULL
Maximum switching frequency	250 kHz	125 kHz	250 kHz
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
Maker	-	Microchip	Microchip
