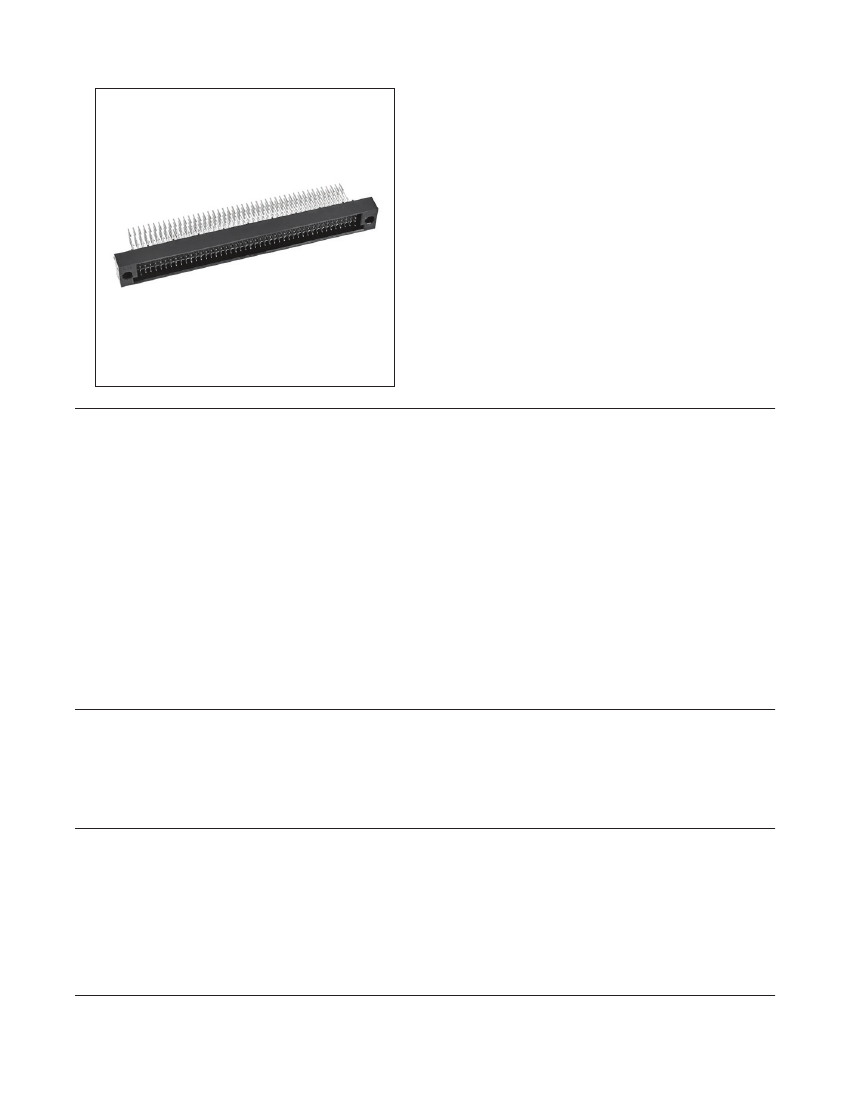

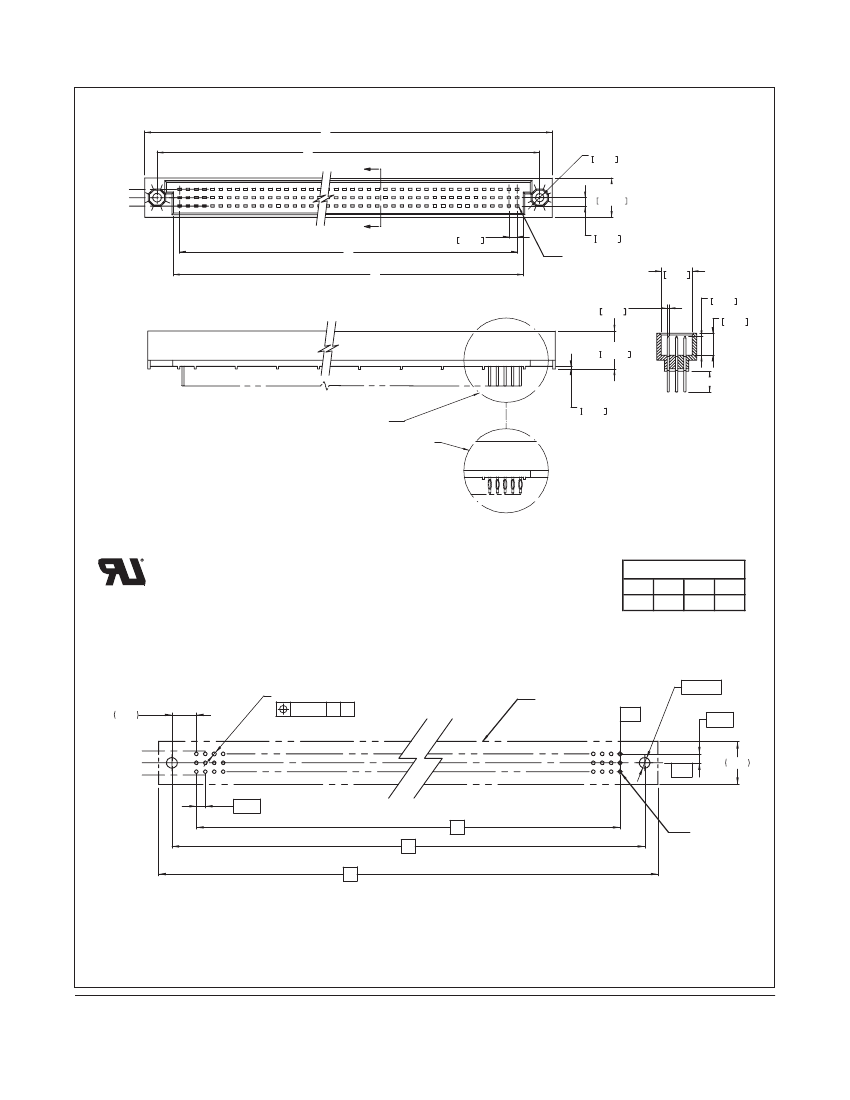

3M
™
HDC Header
.100” Vertical Mount, PCB/Backplane, Solder Tail or Press-Fit
• High density, up to 240 contacts single bay
• Early Mate Late Break (EMLB) grounding contacts
for hot swapping
• Mates with three-row and four-row sockets
• RoHS* compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section
of www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
HDC Series
Date Modified: May 14, 2013
TS-1136-E
Sheet 1 of 5
Physical
Insulation:
Flammability:
UL 94V-0
Material:
Glass Filled Thermoplastic (LCP)
Color:
Black
Contact:
Material:
Copper Alloy
Underplating:
50 μ" [ 1.27 μm ] min. Nickel
Termination Area:
See Ordering Information
Wiping Area:
See Ordering Information
Plating:
Marking:
Part Number and Date Code
Electrical
Current Rating:
3.0 A
Insulation Resistance:
1 × 10
3
M Ω min. at 500 V
DC
Withstanding Voltage:
900 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

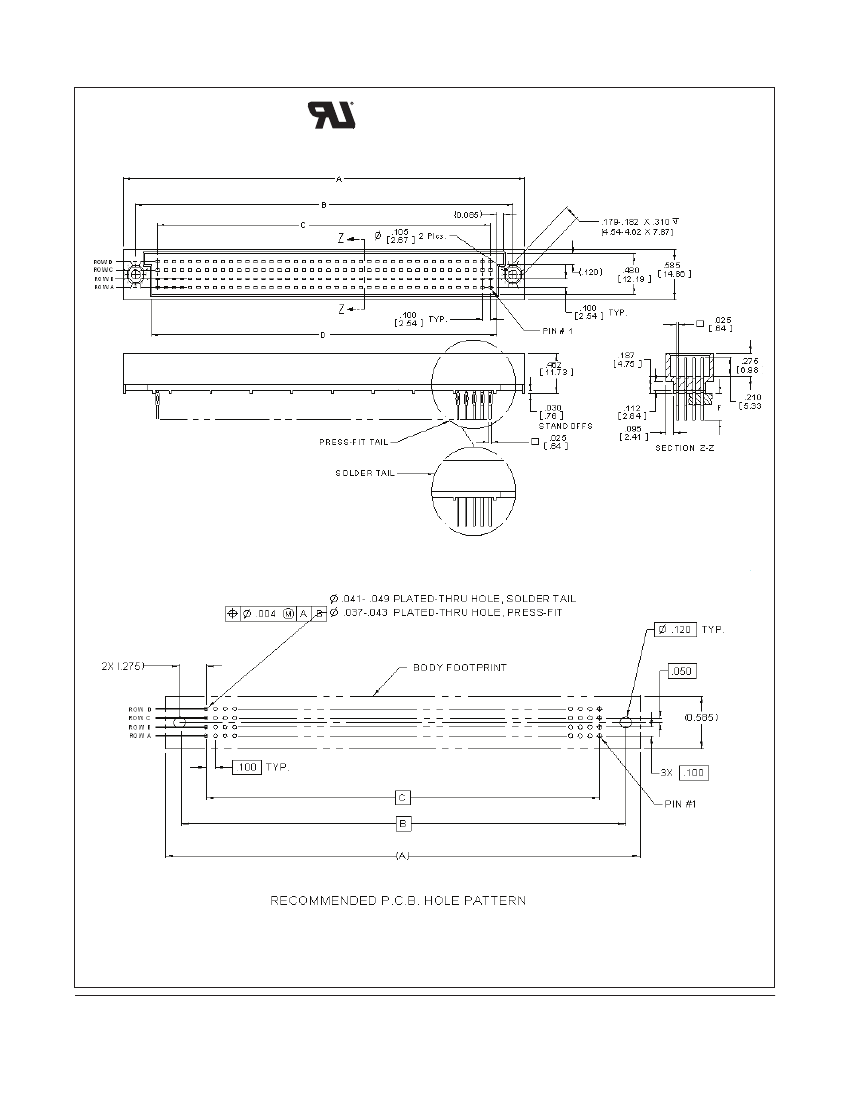

HDC Header
3-Row Single Bay
B
.100” Vertical Mount, PCB/Backplane, Solder Tail or Press-Fit
A
.100
2.54
2
3
4
5 6
HDC Series
Z
8
7
Z
C
D
.100
2.54
PIN #1
SOLDER TAIL
PRESS-FIT TAIL
Ø
.037 - .043 PLATED-THRU HOLE, PRESS-FIT
2X .275
ROW C
ROW B
ROW A
Ø
.041-.049 PLATED-THRU HOLE, SOLDER TAIL
Ø
.004 A B
Body footprint
-B-
.100 TYP.
C
B
A
PIN #1
RECOMMENDED P.C.B. HOLE PATTERN
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
1
ROW C
ROW B
ROW A
B A H
G
C
F
E
.480
12.19
.100
2.54
.375
9.52
.025
0.64
.210
5.33
.275
6.98
q
.462
11.73
F
.030
0.76
SECTION Z-Z
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ø
.120 2 Plcs.
.100 TYP.
-A-
.485
TS-1136-E
Sheet 2 of 5
3M
™
HDC Header
Description
HDC-H045-31XX-XXXX
HDC-H072-31XX-XXXX
HDC-H075-31XX-XXXX
HDC-H090-31XX-XXXX
HDC-H096-31XX-XXXX
HDC-H102-31XX-XXXX
HDC-H120-31XX-XXXX
HDC-H135-31XX-XXXX
Pin
Quantity
45
72
75
90
96
102
120
135
A
2.250
[57.15]
3.150
[80.01]
3.250
[82.55]
3.750
[95.25]
3.950
[100.33]
4.150
[105.41]
4.750
[120.65]
5.250
[133.35]
B
1.950
[49.53]
2.850
[72.39]
2.950
[74.93]
3.450
[87.63]
3.650
[92.71]
3.850
[97.79]

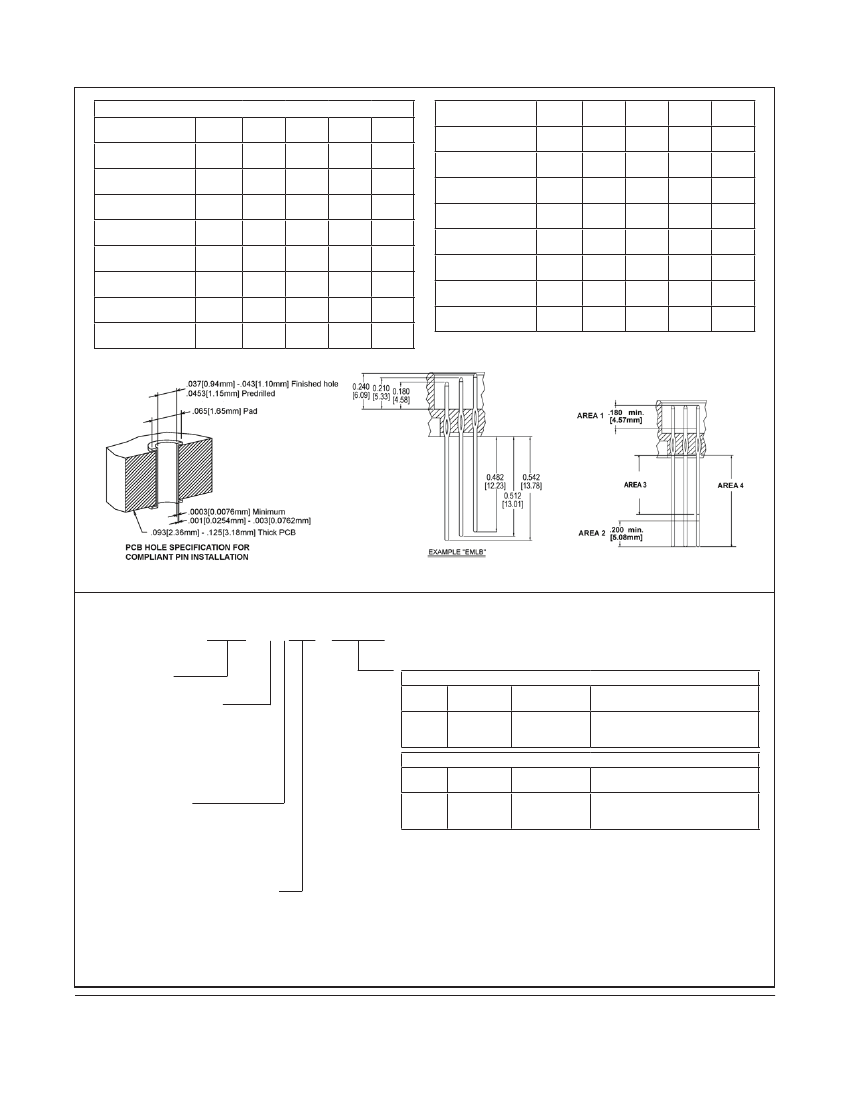

.100” Vertical Mount, PCB/Backplane, Solder Tail or Press-Fit
Product Table/Dimensions for 3 Row, Single Bay
C
1.400
[35.56]
2.300
[58.42]
2.400
[60.96]
2.900
[73.66]
3.100
[78.74]
3.300
[83.82]
3.900
[113.03]
4.400
[111.76]
D
1.550
[39.37]
2.300
[62.23]
2.550
[64.77]
3.050
[77.47]
3.250
[82.55]
3.450
[87.63]
4.050
[102.87]
4.550
[115.57]
Description
HDC-H150-31XX-XXXX
HDC-H165-31XX-XXXX
HDC-H180-31XX-XXXX
HDC-H195-31XX-XXXX
HDC-H210-31XX-XXXX
HDC-H225-31XX-XXXX
HDC-H228-31XX-XXXX
HDC-H240-31XX-XXXX
Pin
Quantity
150
165
180
195
210
225
228
240
A
5.750
[146.05]
6.250
[158.75]
6.750
[171.45]
7.250
[184.15]
7.750
[196.85]
8.250
[209.55]
8.350
[212.09]
8.750
[222.25]
B
5.450
[138.43]
5.950
[151.13]
6.450
[163.83]
6.950
[176.53]
7.450
[189.23]
7.950
[201.93]
8.050
[204.47]
8.450
[214.63]
HDC Series
C
4.900
[124.46]
5.400
[137.16]
5.900
[149.86]
6.400
[162.56]
6.900
[175.26]
7.400
[187.96]
7.500
[190.50]
7.900
[200.66]
D
5.050
[128.27]
5.550
[140.97]
6.050
[153.67]
6.550
[166.37]
7.050
[179.07]
7.550
[191.77]
7.650
[194.31]
8.050
[204.47]
4.450
[113.03]
4.950
[125.73]
Plating Description
Ordering Information
HDC - HXXX - X1XX - XXXX
Plating
Options:
(See Plating
Chart)
Plating Chart (S1 & P1 Termination Styles ONLY)
Plating
Suffix
KR
Press-Fit
Terminations
(RIA E1 & C1
apply)
Solder Tail
Terminations
(RIA E1 & C1
apply)
Plating composition
30 μ" [0.76 μm] Min. Au on Area 1
100 μ" [2.54 μm] Min. Whisker Mitigating
Matte Tin on Area 4
50 μ" [1.27 μm] Min. Ni all over
Pin Quantity:
See Table
Row Options
3 = 3 Rows
4 = 4 Rows
Plating Chart (P2 Termination Styles ONLY)
Plating
Suffix
Press-Fit
Terminations
(RIA E1 & C1
apply)
Solder Tail
Terminations
(RIA E1 & C1
apply)
Plating composition
30 µ" [0.76 µm] Min. Au on area 1
3 µ" [0.08 µm] Min. Au on area 2
3 µ" [0.08 µm] Min. Au on area 3
50 µ" [1.27 µm] Min. Ni all over
Insulator Options
1 = Single bay
insulator
KV
Termination Style / Lead length - Dim. F
P1 - Press-fit / 0.200" (5.08)
P2 - Press-fit / 0.533" (13.54)
S1 - Solder Tail / 0.190" (4.83)
TS-1136-E
Sheet 3 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
HDC Header
4-Row Single Bay
.100” Vertical Mount, PCB/Backplane, Solder Tail or Press-Fit
HDC Series
TS-1136-E
Sheet 4 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
HDC Header
Description
HDC-H060-41XX-XXXX
HDC-H076-41XX-XXXX
HDC-H080-41XX-XXXX
HDC-H100-41XX-XXXX
HDC-H120-41XX-XXXX
HDC-H128-41XX-XXXX
HDC-H140-41XX-XXXX
HDC-H160-41XX-XXXX
HDC-H168-41XX-XXXX
HDC-H180-41XX-XXXX
HDC-H200-41XX-XXXX
HDC-H216-41XX-XXXX
HDC-H220-41XX-XXXX
HDC-H240-41XX-XXXX
HDC-H260-41XX-XXXX
HDC-H280-41XX-XXXX
HDC-H300-41XX-XXXX
HDC-H320-41XX-XXXX
.100” Vertical Mount, PCB/Backplane, Solder Tail or Press-Fit
Product Table/Dimensions for 4-Row, Single Bay
Pin
Quantity
60
76
80
100
120
128
140
160
168
180
200
216
220
240
260
280
300
320
A
2.250
[57.15]
2.650
[67.31]
2.750
[69.85]
3.250
[82.55]
3.750
[95.25]
3.950
[100.33]
4.250
[107.95]
4.750
[120.65]
4.950
[125.73]
5.250
[133.35]
5.750
[146.05]
6.150
[156.21]
6.250
[158.75]
6.750
[171.45]
7.250
[184.15]
7.750
[196.85]
8.250
[209.55]
8.750
[222.25]
B
1.950
[49.53]
2.350
[59.69]
2.450
[62.23]
2.950
[74.93]
3.450
[87.63]
3.650
[92.71]
3.950
[100.33]
4.450
[113.03]
4.650
[118.11]
4.950
[125.73]
5.450
[138.43]
5.850
[148.59]
5.950
[151.13]
6.450
[163.83]
6.950
[176.53]
7.450
[189.23]
7.950
[209.55]
8.450
[214.63]
C
1.400
[49.53]
1.800
[45.72]
1.900
[48.26]
2.400
[60.96]
2.900
[73.66]
3.100
[78.74]
3.400
[86.36]
3.900
[99.06]
4.100
[104.14]
4.400
[111.76]
4.900
[124.46]
5.300
[134.62]
5.400
[137.16]
5.900
[149.86]
6.400
[162.56]
6.900
[175.26]
7.400
[187.96]
7.900
[200.66]
D
1.550
[39.37]
1.950
[49.53]
1.900
[52.07]
2.550
[60.96]
3.050
[87.63]
3.250
[82.55]
3.550
[90.17]
4.050
[102.87]
4.250
[107.95]
4.550
[115.57]
5.050
[128.27]
5.450
[138.43]
5.550
[140.97]
6.050
[149.86]
6.550
[166.37]
7.050
[179.07]
7.550
[191.77]
8.050
[204.47]
HDC Series
TS-1136-E
Sheet 5 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
