IDT74FCT825ASO-TR datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT825ASO-TR

IDT74FCT825ASO-TR: DescriptionD Flip-Flop, 8-Func, CMOS, PDSO24; Categorylogic logic; File Size467KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74FCT825ASO-TR Overview

D Flip-Flop, 8-Func, CMOS, PDSO24

IDT74FCT825ASO-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SOP, SOP24,.4
Reach Compliance Code	not_compliant
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz
MaximumI(ol)	0.048 A
Humidity sensitivity level	1
Number of functions	8
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Prop。Delay @ Nom-Sup	10 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
Base Number Matches	1

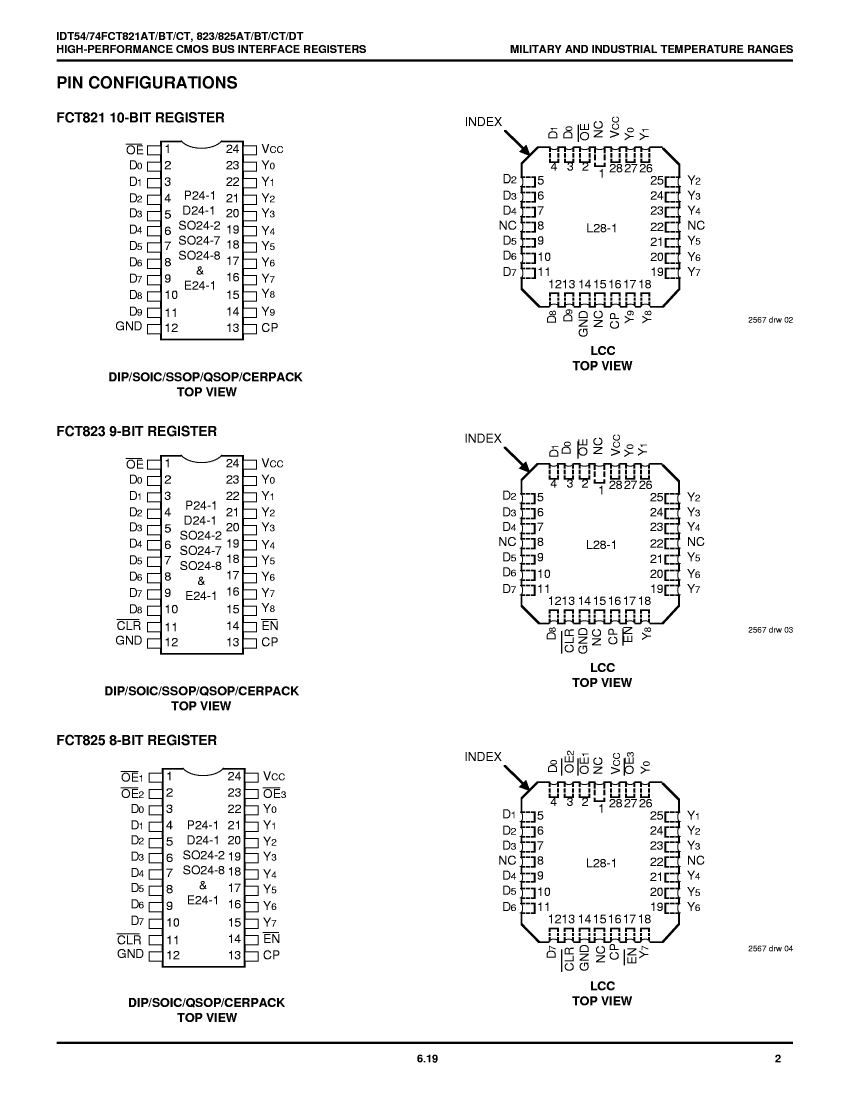

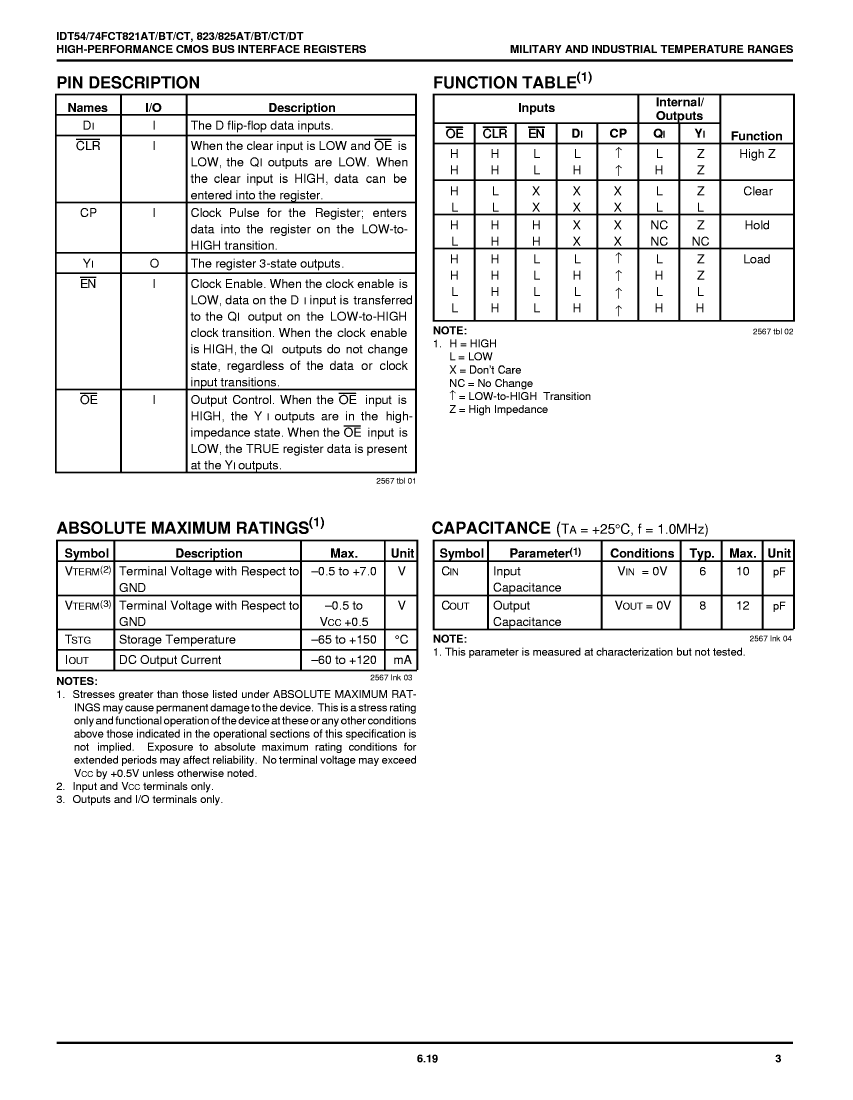

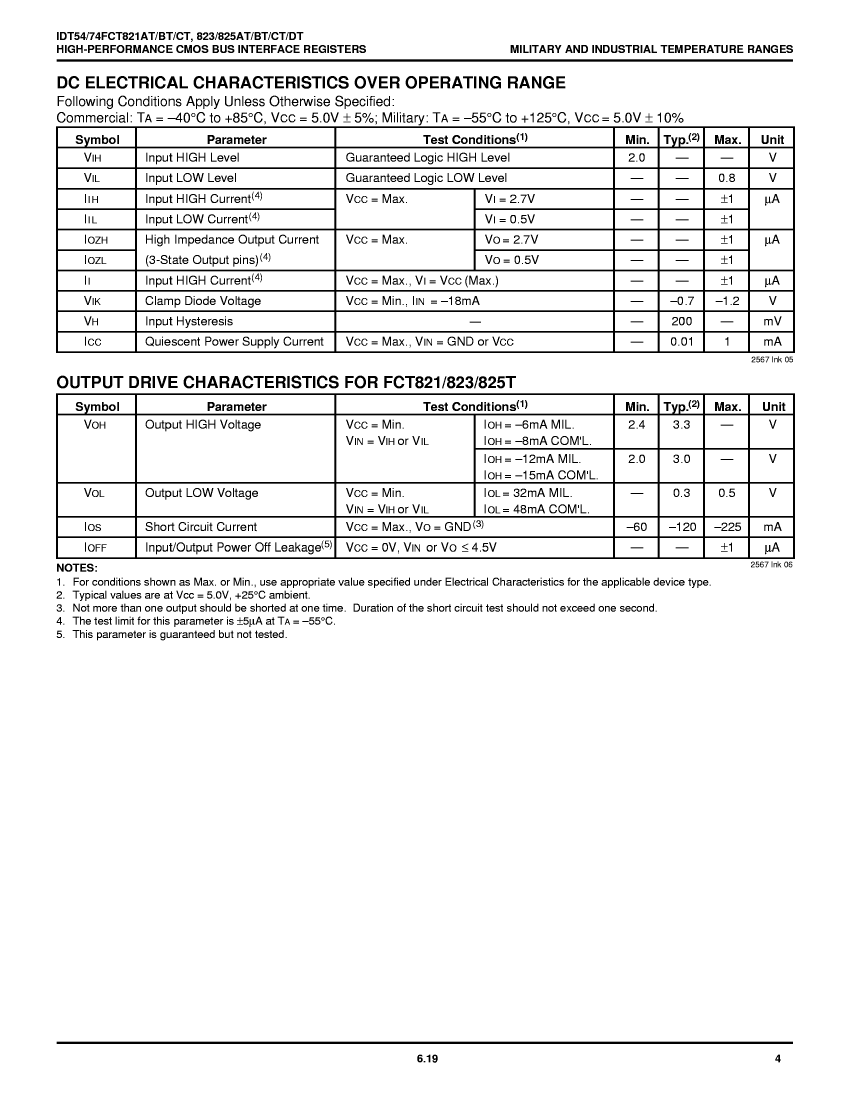

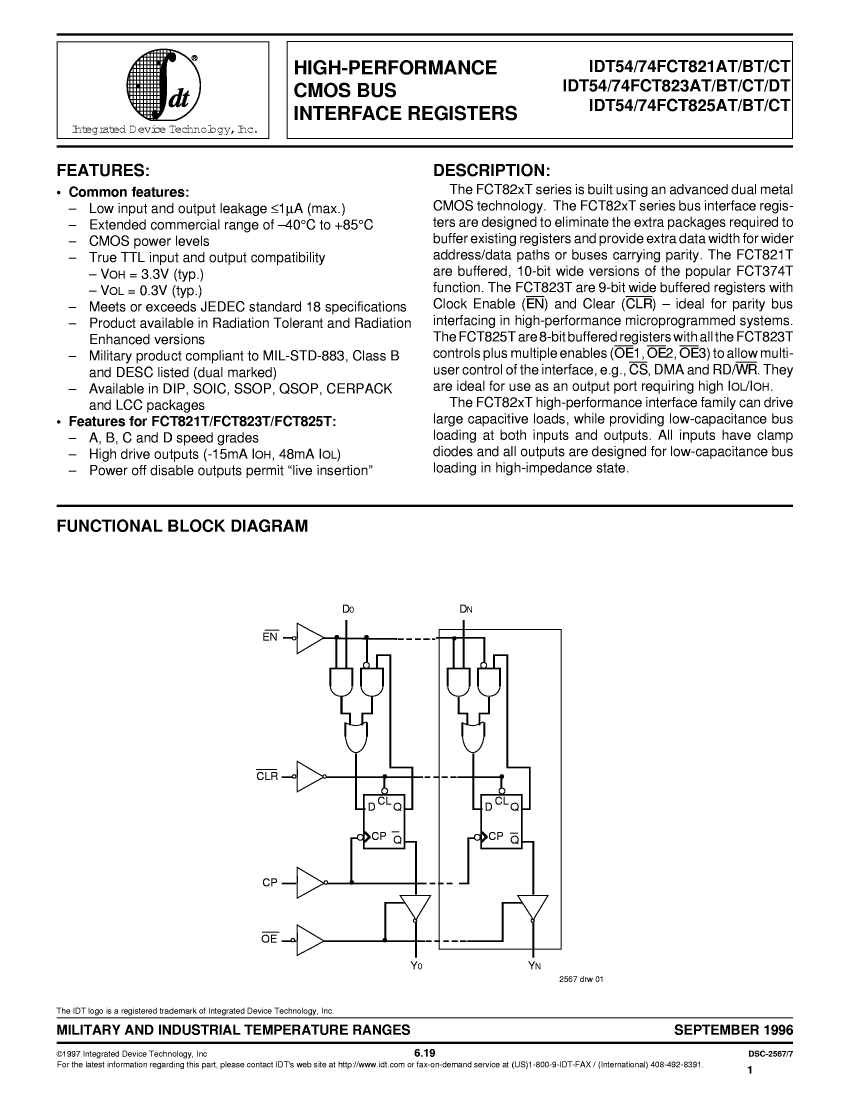

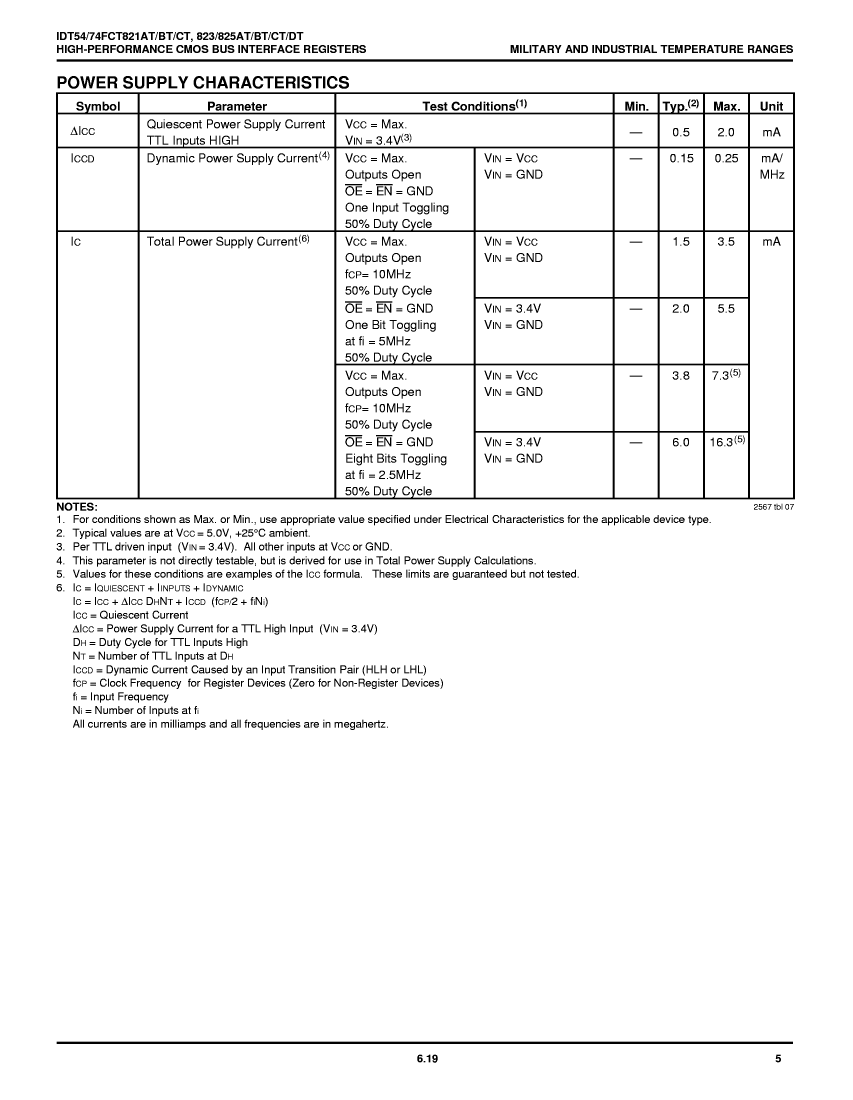

Preview

Download Datasheet

View All

IDT74FCT825ASO-TR Related Products

	IDT74FCT825ASO-TR	IDT54FCT825ADM	IDT74FCT825AJ	IDT74FCT825BJ	IDT74FCT825BPQ	54FCT825ADM
Description	D Flip-Flop, 8-Func, CMOS, PDSO24	D Flip-Flop, 8-Func, CMOS, CDIP24	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PQCC28	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PQCC28	D Flip-Flop, 8-Func, CMOS, PDIP24	D Flip-Flop, 8-Func, CMOS, CDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-PDSO-G24	R-XDIP-T24	S-PQCC-J28	S-PQCC-J28	R-PDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz	71400000 Hz	71400000 Hz	83300000 Hz	83300000 Hz	71400000 Hz
MaximumI(ol)	0.048 A	0.032 A	0.048 A	0.048 A	0.048 A	0.032 A
Number of functions	8	8	8	8	8	8
Number of terminals	24	24	28	28	24	24
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	125 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOP	DIP	QCCJ	QCCJ	DIP	DIP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	LDCC28,.5SQ	LDCC28,.5SQ	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	10 ns	11.5 ns	10 ns	7.5 ns	7.5 ns	11.5 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Is it lead-free?	Contains lead	Contains lead	-	-	Contains lead	Contains lead
package instruction	SOP, SOP24,.4	DIP, DIP24,.3	-	-	DIP, DIP24,.3	DIP, DIP24,.3
Peak Reflow Temperature (Celsius)	225	225	-	-	NOT SPECIFIED	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum time at peak reflow temperature	NOT SPECIFIED	30	-	-	NOT SPECIFIED	20
Base Number Matches	1	1	1	1	1	-
