FN326-10/01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FN326-10/01

FN326-10/01: DescriptionMains Power Connector, 10A, 250VAC, Male, Solder Terminal; CategoryThe connector The connector; File Size89KB，2 Pages; ManufacturerSchaffner

Download Datasheet Parametric Compare View All

FN326-10/01 Overview

Mains Power Connector, 10A, 250VAC, Male, Solder Terminal

FN326-10/01 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IEC 60939, FAST-ON
Connector type	MAINS POWER CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	FN326
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

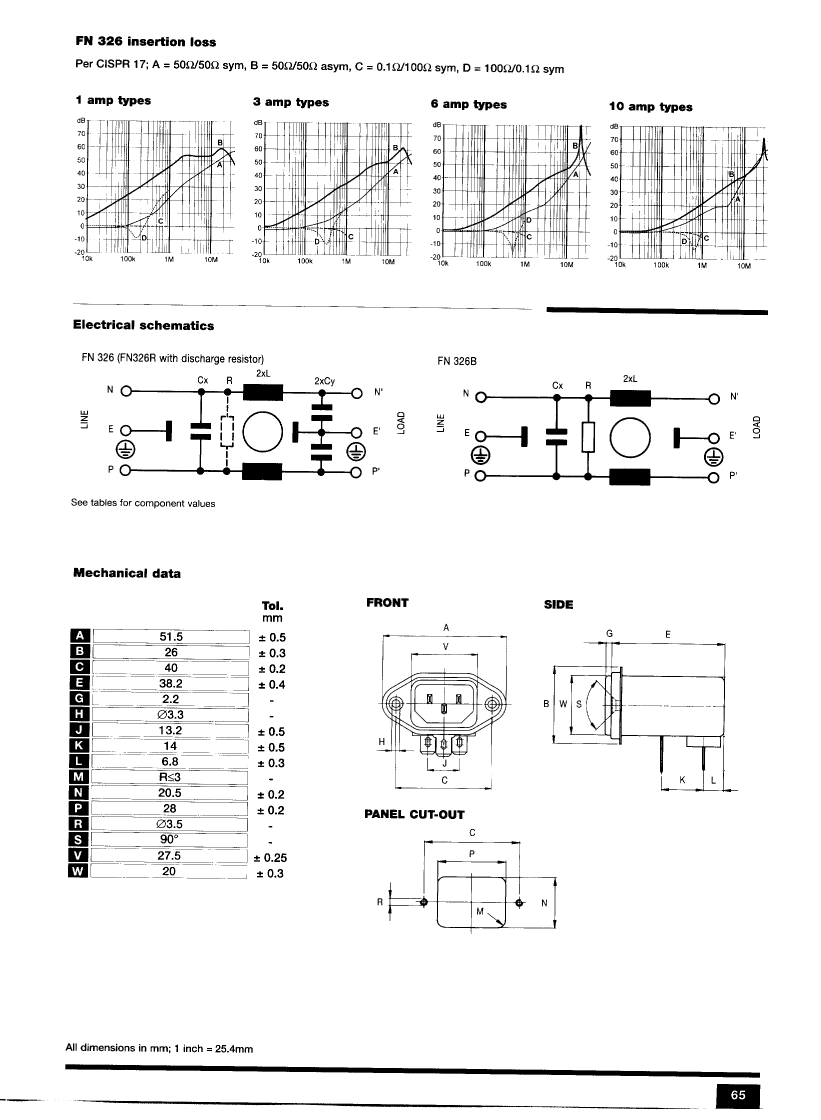

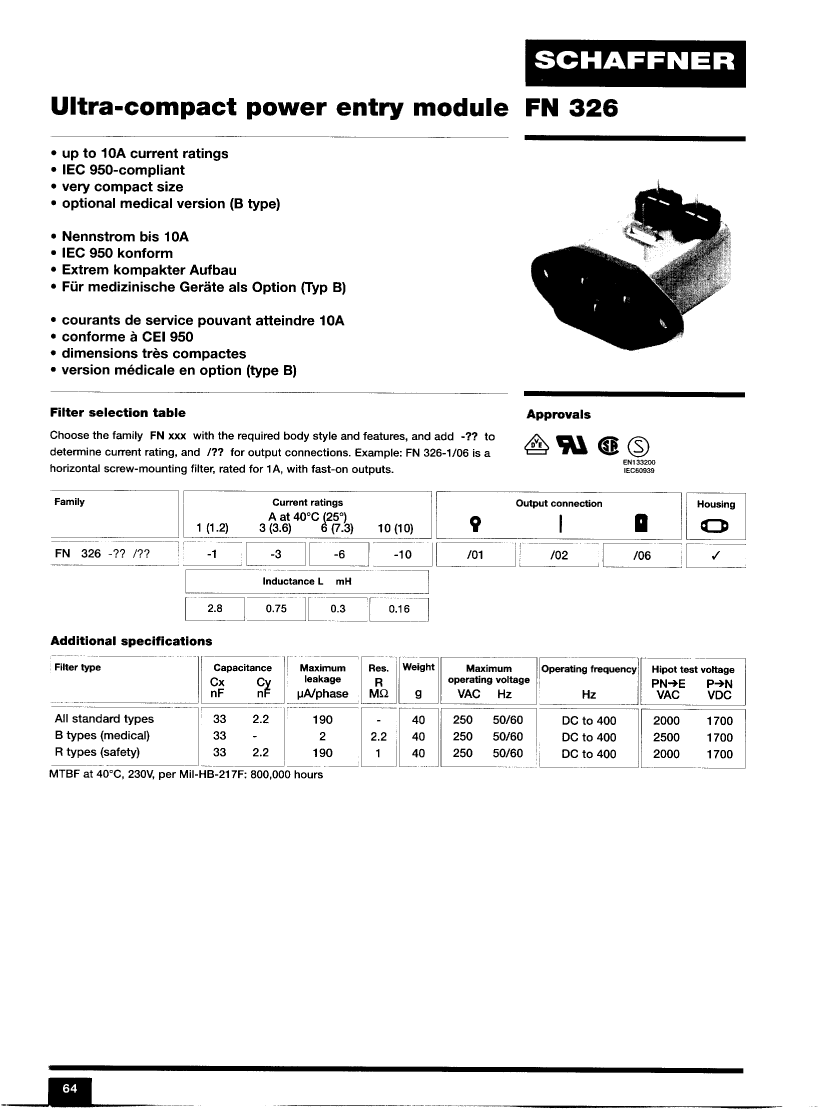

Preview

Download Datasheet

View All

FN326-10/01 Related Products

	FN326-10/01	FN326-1/01	FN326-1/02	FN326-1/06	FN326-10/02	FN326-10/06	FN326-3/01	FN326-3/02	FN326-6/01	FN326-6/02
Description	Mains Power Connector, 10A, 250VAC, Male, Solder Terminal	Mains Power Connector, 1A, 250VAC, Male, Solder Terminal	Mains Power Connector, 1A, 250VAC, Male, Solder Terminal	Mains Power Connector, 1A, 250VAC, Male, Solder Terminal	Mains Power Connector, 10A, 250VAC, Male, Solder Terminal	Mains Power Connector, 10A, 250VAC, Male, Solder Terminal	Mains Power Connector, 3A, 250VAC, Male, Solder Terminal	Mains Power Connector, 3A, 250VAC, Male, Solder Terminal	Mains Power Connector, 6A, 250VAC, Male, Solder Terminal	Mains Power Connector, 6A, 250VAC, Male, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON	STANDARD: IEC 60939, FAST-ON
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Power Connector Ratings	10A, 250VAC	1A, 250VAC	1A, 250VAC	1A, 250VAC	10A, 250VAC	10A, 250VAC	3A, 250VAC	3A, 250VAC	6A, 250VAC	6A, 250VAC
Manufacturer's serial number	FN326	FN326	FN326	FN326	FN326	FN326	FN326	FN326	FN326	FN326
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3	3	3	3	3	3
Base Number Matches	1	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
