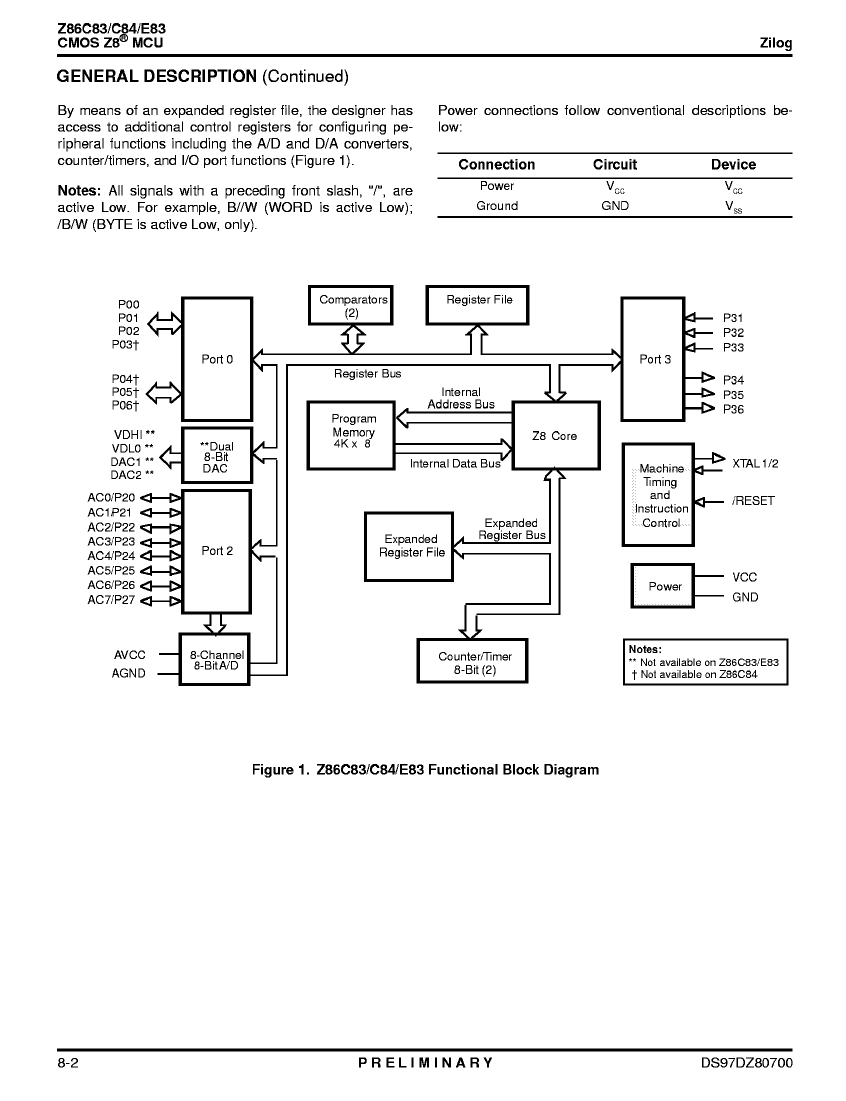

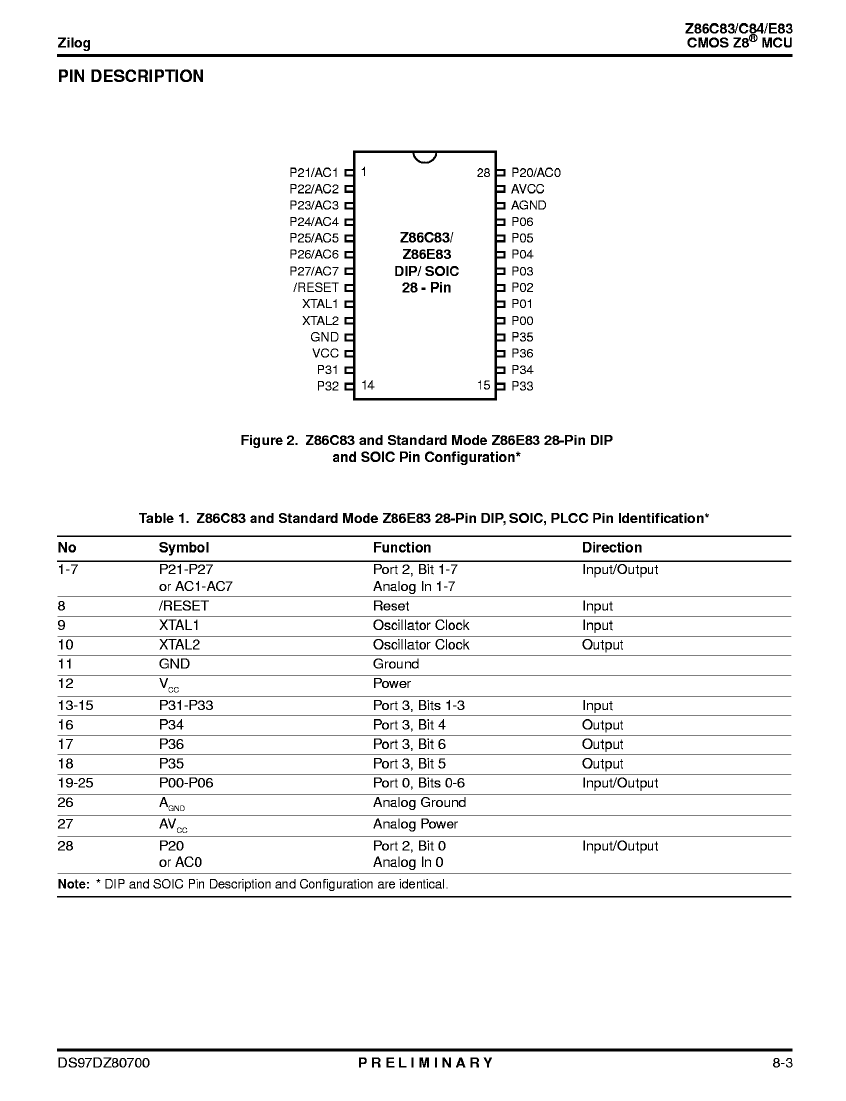

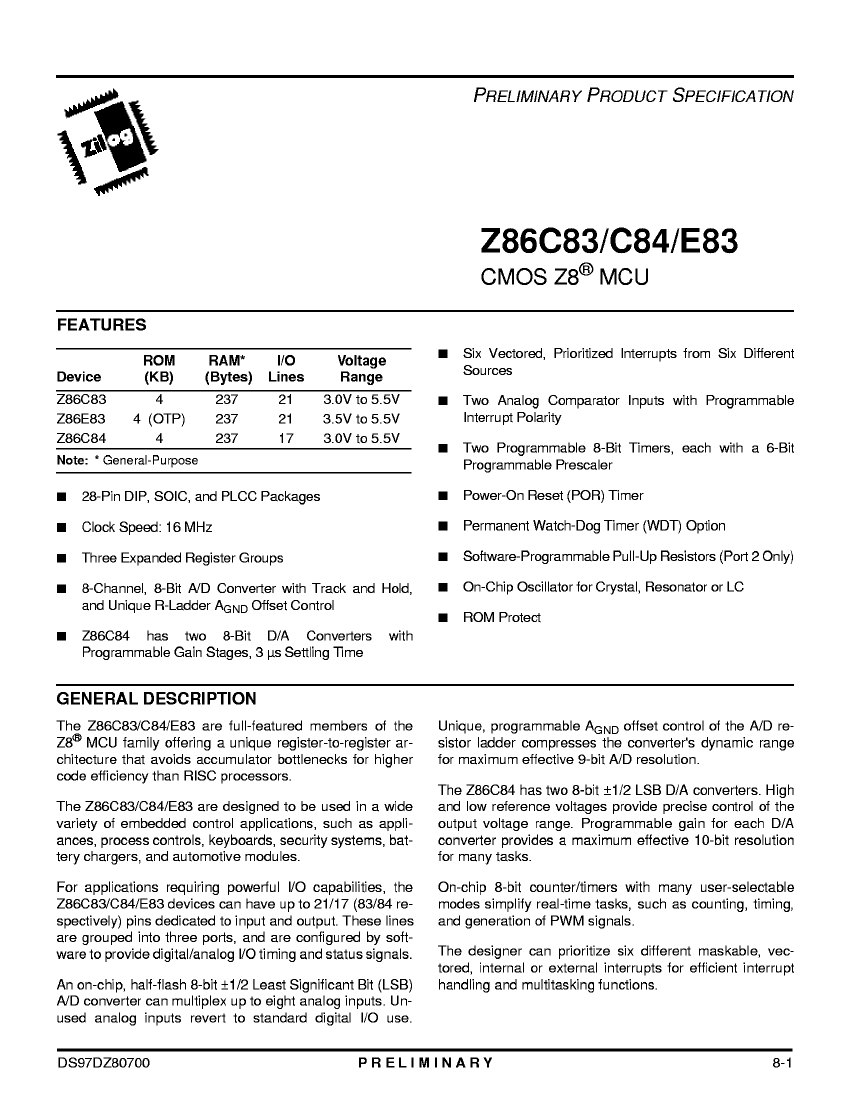

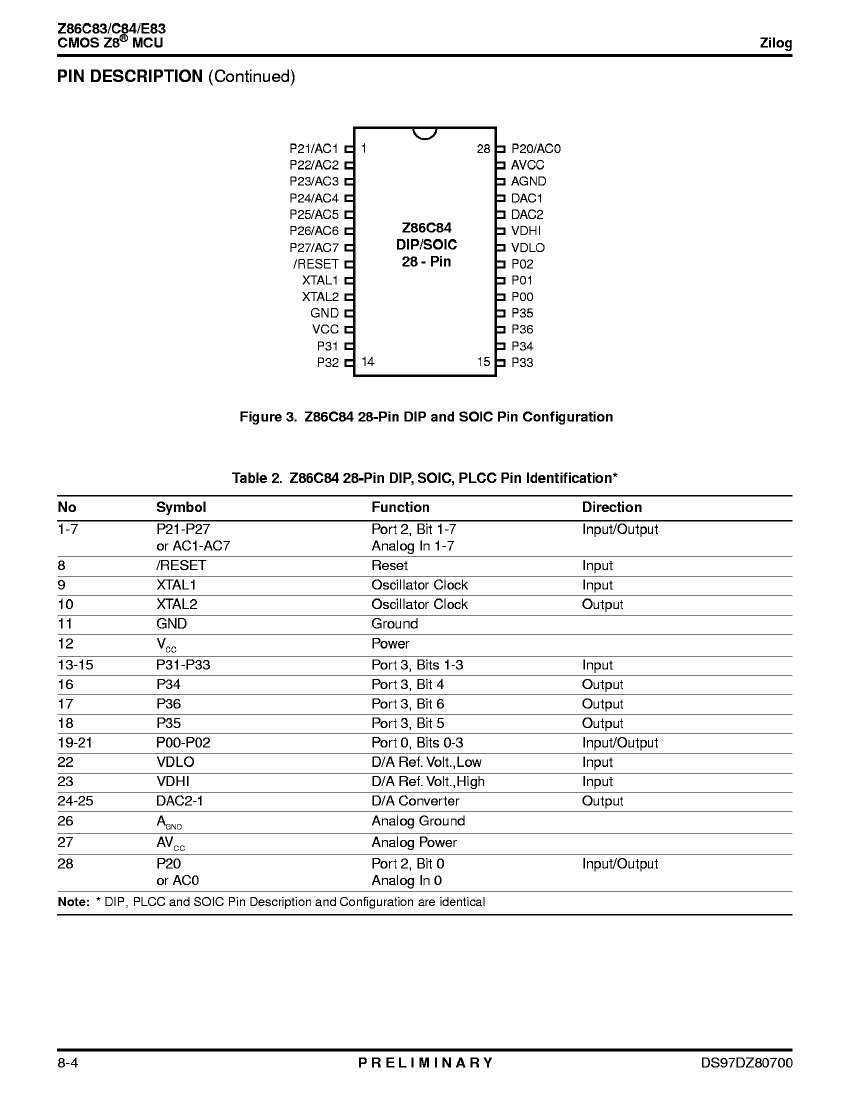

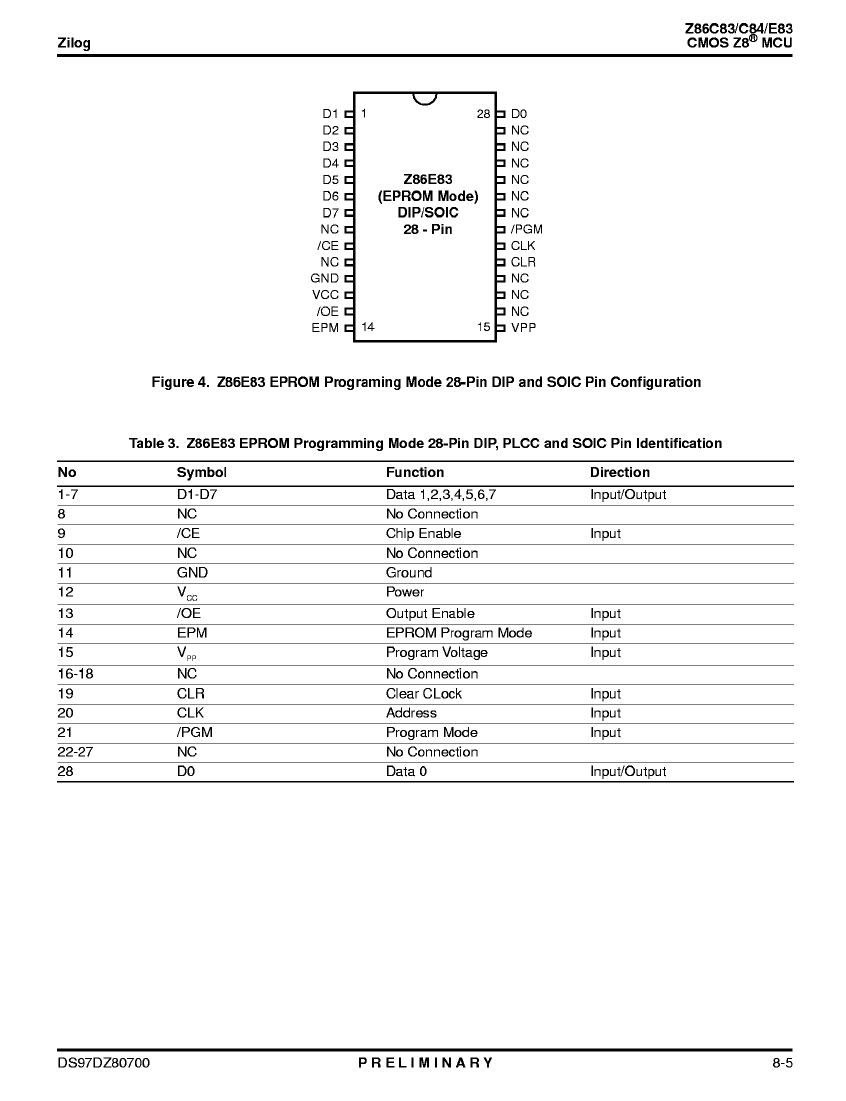

Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PQCC28, PLASTIC, LCC-28
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | QLCC |
| package instruction | PLASTIC, LCC-28 |
| Contacts | 28 |
| Reach Compliance Code | not_compliant |
| Has ADC | YES |
| Address bus width | |
| bit size | 8 |
| maximum clock frequency | 16 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | S-PQCC-J28 |
| length | 11.505 mm |
| Number of I/O lines | 21 |
| Number of terminals | 28 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| ROM programmability | OTPROM |
| Maximum seat height | 4.57 mm |
| speed | 16 MHz |
| Maximum slew rate | 25 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 3.5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 11.505 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Base Number Matches | 1 |
| Z86E8316VSG | Z86E8316VEG | Z86E8316PEC | Z86E8316PSC | Z86E8316VSC | Z86E8316PEG | Z86E8316PSG | |
|---|---|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PQCC28, PLASTIC, LCC-28 | Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PQCC28, PLASTIC, LCC-28 | Microcontroller, 8-Bit, OTPROM, Z8 CPU, 16MHz, CMOS, PDIP28, PLASTIC, DIP-28 | Microcontroller, 8-Bit, OTPROM, Z8 CPU, 16MHz, CMOS, PDIP28, PLASTIC, DIP-28 | Microcontroller, 8-Bit, OTPROM, Z8 CPU, 16MHz, CMOS, PQCC28, PLASTIC, LCC-28 | Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PDIP28, PLASTIC, DIP-28 | Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PDIP28, PLASTIC, DIP-28 |
| Is it lead-free? | Lead free | Lead free | Contains lead | Contains lead | Contains lead | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | incompatible | incompatible | incompatible | conform to | conform to |
| Parts packaging code | QLCC | QLCC | DIP | DIP | QLCC | DIP | DIP |
| package instruction | PLASTIC, LCC-28 | PLASTIC, LCC-28 | DIP-28 | DIP-28 | LCC-28 | PLASTIC, DIP-28 | PLASTIC, DIP-28 |
| Contacts | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Reach Compliance Code | not_compliant | not_compliant | unknown | unknown | unknown | _compli | _compli |
| Has ADC | YES | YES | YES | YES | YES | YES | YES |
| bit size | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| maximum clock frequency | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz |
| DAC channel | NO | NO | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO | NO | NO |
| External data bus width | - | - | 8 | - | 8 | 8 | 8 |
| JESD-30 code | S-PQCC-J28 | S-PQCC-J28 | R-PDIP-T28 | R-PDIP-T28 | S-PQCC-J28 | R-PDIP-T28 | R-PDIP-T28 |
| length | 11.505 mm | 11.505 mm | 36.96 mm | 36.96 mm | 11.505 mm | 36.96 mm | 36.96 mm |
| Number of I/O lines | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 70 °C | 105 °C | 105 °C | 70 °C | 70 °C | 105 °C | 70 °C |
| PWM channel | YES | YES | YES | YES | YES | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | QCCJ | DIP | DIP | QCCJ | DIP | DIP |
| Package shape | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| ROM programmability | OTPROM | OTPROM | OTPROM | OTPROM | OTPROM | OTPROM | OTPROM |
| Maximum seat height | 4.57 mm | 4.57 mm | 4.96 mm | 4.96 mm | 4.57 mm | 4.96 mm | 4.96 mm |
| speed | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz | 16 MHz |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 3.5 V | 4.5 V | 4.5 V | 3.5 V | 3.5 V | 4.5 V | 3.5 V |
| surface mount | YES | YES | NO | NO | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | COMMERCIAL |
| Terminal form | J BEND | J BEND | THROUGH-HOLE | THROUGH-HOLE | J BEND | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | DUAL | DUAL | QUAD | DUAL | DUAL |
| width | 11.505 mm | 11.505 mm | 15.24 mm | 15.24 mm | 11.505 mm | 15.24 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Maximum slew rate | 25 mA | 25 mA | - | 25 mA | - | 25 mA | 25 mA |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Maker | - | - | IXYS | IXYS | IXYS | IXYS | IXYS |
| Nominal supply voltage | - | - | 5 V | - | 5 V | 5 V | 5 V |
