MABA-008260-CF4A40: Description4:1 flux Coupled Transformer 5-200MHz; CategoryPower management transformer; File Size54KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MABA-008260-CF4A40 Overview

4:1 flux Coupled Transformer 5-200MHz

MABA-008260-CF4A40 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
package instruction	SM-164, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	CENTER TAPPED SECONDARY; IMPEDANCE RATIO IS 4:1
maximum cutoff frequency	200 MHz
minimum cutoff frequency	5 MHz
diameter	4.21 mm
high	3.81 mm
Insertion loss	1 dB
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	D4.21XH3.81 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER

Preview

Download Datasheet

View All

RoHS

Compliant

4:1 flux Coupled Transformer

5-200MHz

Features

•

SMT unit.

4:1 Impedance

260°C Reflow Compatible

RoHS* Compliant

RoHS version of MABACT0045

Available on Tape and Reel. Reel quantity 2000

MABA-008260-CF4A40

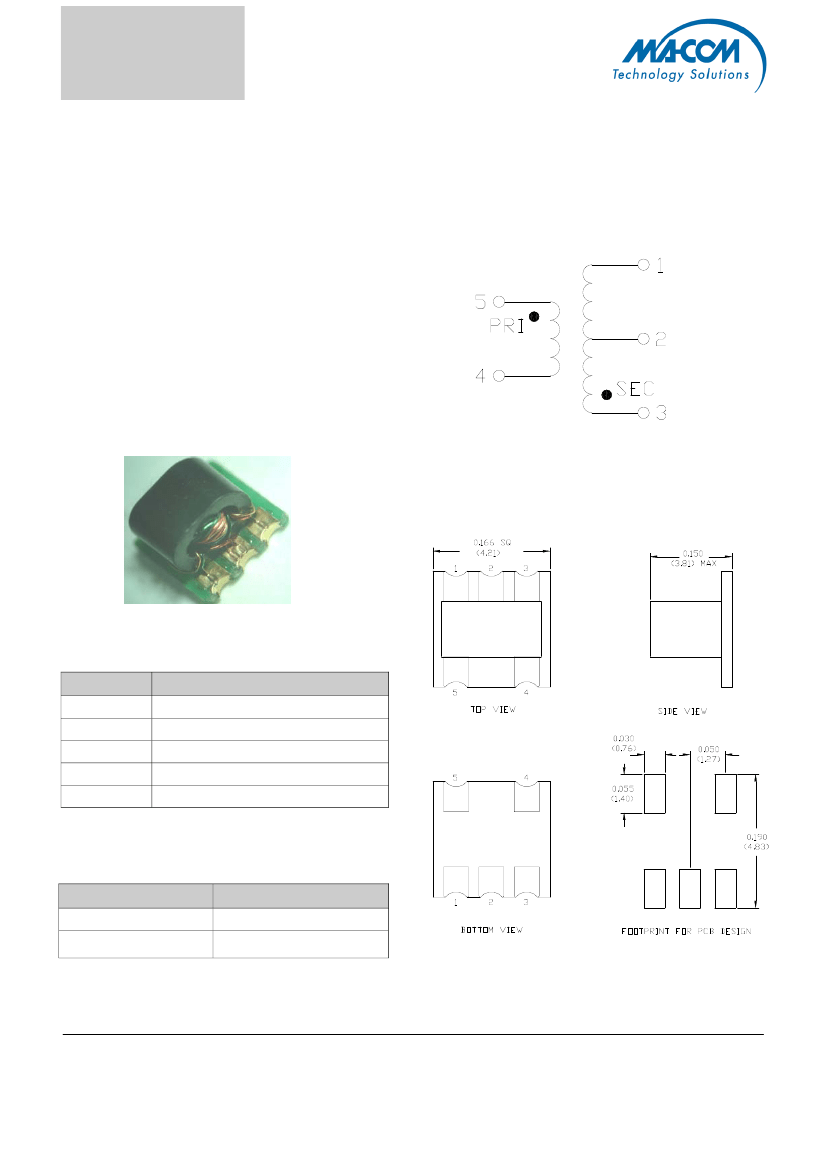

Schematic

Description

M/A-COM’s MABA-008260-CF4A40 is a low cost sur-

face mount 4:1 flux coupled transformer. Ideally suited

for high volume CATV/Broadband applications. Suit-

able for use in 50 Ohm and 75 Ohm systems.

Case Style: SM-164

Pin Configuration

Pin No.

Function

Secondary Output 2

Centre Tap (ground)

Secondary Dot Output 1

Primary (ground)

Primary Dot (input)

Ordering Information

Part Number

MABA-008260-CF4A40

MABA-008260-CF4ATB

Package

2000

Customer Test Board

Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010

Note: Reference Application Note

M513

for reel size information.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

is considering for development. Performance is based on target specifications, simulated results,

and/or prototype measurements. Commitment to develop is not guaranteed.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

Commitment to produce in volume is not guaranteed.

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

Visit www.macomtech.com for additional data sheets and product information.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

changes to the product(s) or information contained herein without notice.
