D09P81C6PA00

Description
D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal
CategoryThe connector    The connector
File Size124KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

D09P81C6PA00 Overview

D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal

D09P81C6PA00 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN LEAD (59) OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberD09P81C6PA00
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size1/E
Termination typePRESS FIT
Total number of contacts9
UL Flammability Code94V-0
Base Number Matches1

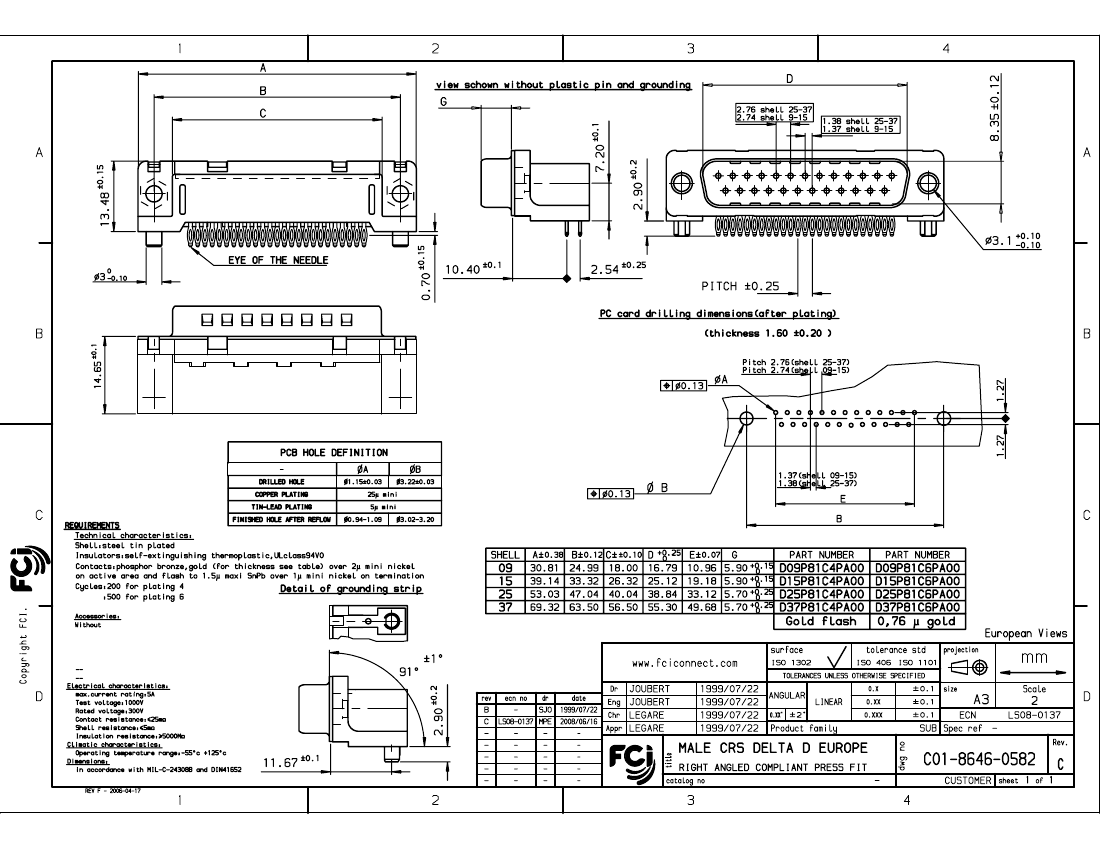

PDM: Rev:C
STATUS:
Released
Printed: Jan 18, 2011
.

D09P81C6PA00 Related Products

D09P81C6PA00 D15P81C4PA00 D25P81C4PA00 D37P81C4PA00 D37P81C6PA00
Description D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal D Subminiature Connector, 37 Contact(s), Male, Press Fit Terminal
Reach Compliance Code compliant compliant compliant compliant compliant
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL GOLD FLASH OVER NICKEL GOLD FLASH OVER NICKEL GOLD FLASH OVER NICKEL GOLD (30) OVER NICKEL
Contact completed and terminated TIN LEAD (59) OVER NICKEL TIN LEAD (59) OVER NICKEL TIN LEAD (59) OVER NICKEL TIN LEAD (59) OVER NICKEL TIN LEAD (59) OVER NICKEL
Contact point gender MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO NO NO
empty shell NO NO NO NO NO
Filter function NO NO NO NO NO
IEC compliance NO NO NO NO NO
insulator material POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE POLYETHYLENE
JESD-609 code e0 e0 e0 e0 e0
MIL compliance NO NO NO NO NO
Manufacturer's serial number D09P81C6PA00 D15P81C4PA00 D25P81C4PA00 D37P81C4PA00 D37P81C6PA00
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO
Installation type BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL BOARD AND PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface TIN TIN TIN TIN TIN
Shell material STEEL STEEL STEEL STEEL STEEL
Housing size 1/E 2/A 3/B 4/C 4/C
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 9 15 25 37 37
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1
ECCN code - EAR99 EAR99 EAR99 EAR99
