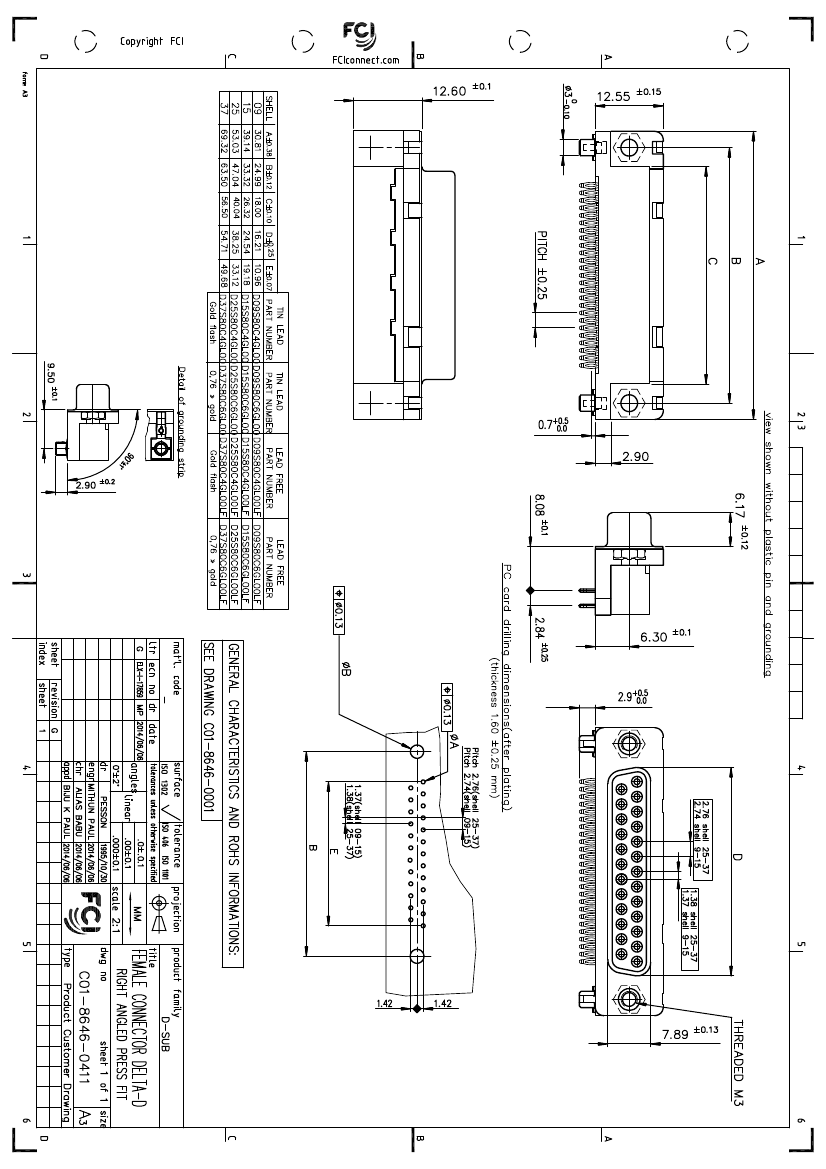

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, LEAD FREE
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 11 weeks |
| body width | 0.494 inch |
| subject depth | 0.496 inch |
| body length | 2.088 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN OVER COPPER |
| Housing size | 3/B |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 25 |
| Evacuation force-minimum value | .3058 N |
| Base Number Matches | 1 |
| D25S80C6GL00LF | D25S80C4GL00 | D37S80C4GL00LF | |
|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, LEAD FREE | D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3 | D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant |
| body width | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.496 inch | 0.496 inch | 0.496 inch |
| body length | 2.088 inch | 2.088 inch | 2.729 inch |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | GOLD FLASH | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | PHOSPHOR BRONZE | NOT SPECIFIED |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V |
| empty shell | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | 4.8928 N | 4.8928 N | 4.8928 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYETHYLENE | POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO | NO | NO |
| Plug contact pitch | 0.109 inch | 0.109 inch | 0.109 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | M3 | M3 | M3 |
| Installation option 2 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.8448 mm | 2.8448 mm | 2.8448 mm |
| Plating thickness | 30u inch | FLASH inch | FLASH inch |
| Rated current (signal) | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN OVER COPPER | TIN | TIN OVER COPPER |
| Housing size | 3/B | 3/B | 4/C |
| Terminal length | 0.114 inch | 0.114 inch | 0.114 inch |
| Terminal pitch | 2.7686 mm | 2.7686 mm | 2.7686 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 25 | 25 | 37 |
| Evacuation force-minimum value | .3058 N | .3058 N | .3058 N |
| Base Number Matches | 1 | 1 | 1 |
| Is it Rohs certified? | conform to | - | conform to |
| package instruction | LEAD FREE | - | LEAD FREE |
| ECCN code | EAR99 | - | EAR99 |
| Contact completed and terminated | - | TIN LEAD | Matte Tin (Sn) - with Nickel (Ni) barrier |
| JESD-609 code | - | e0 | e3 |
