ADC-00302-11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADC-00302-11

Preview

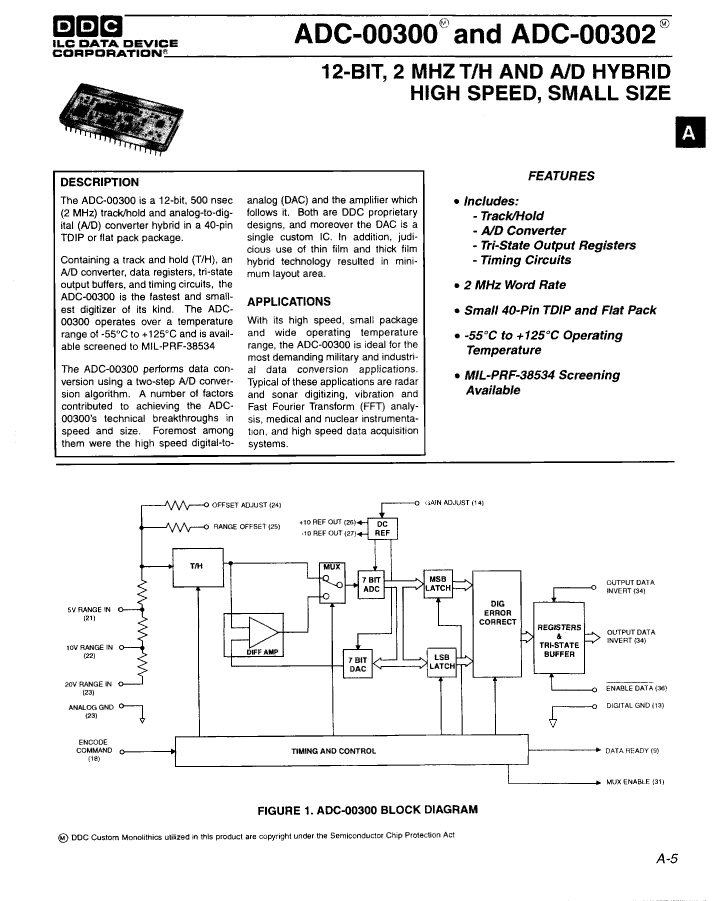

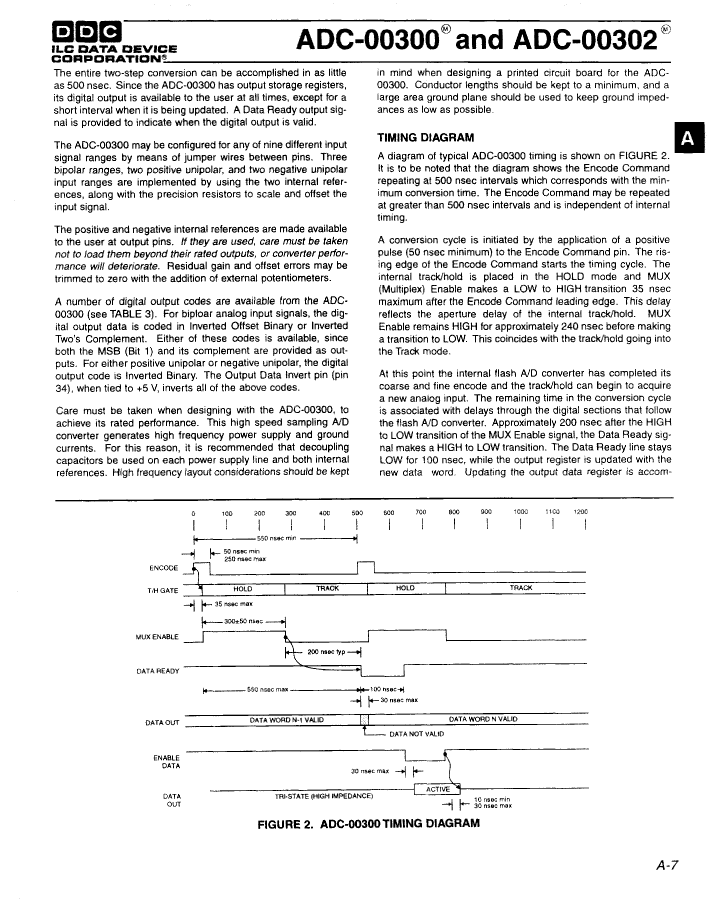

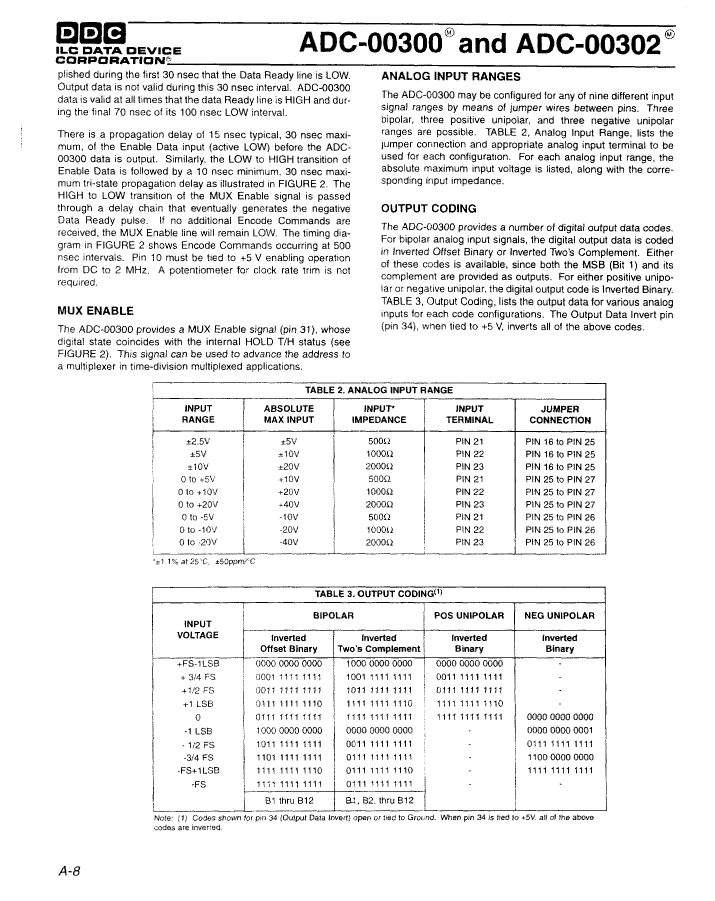

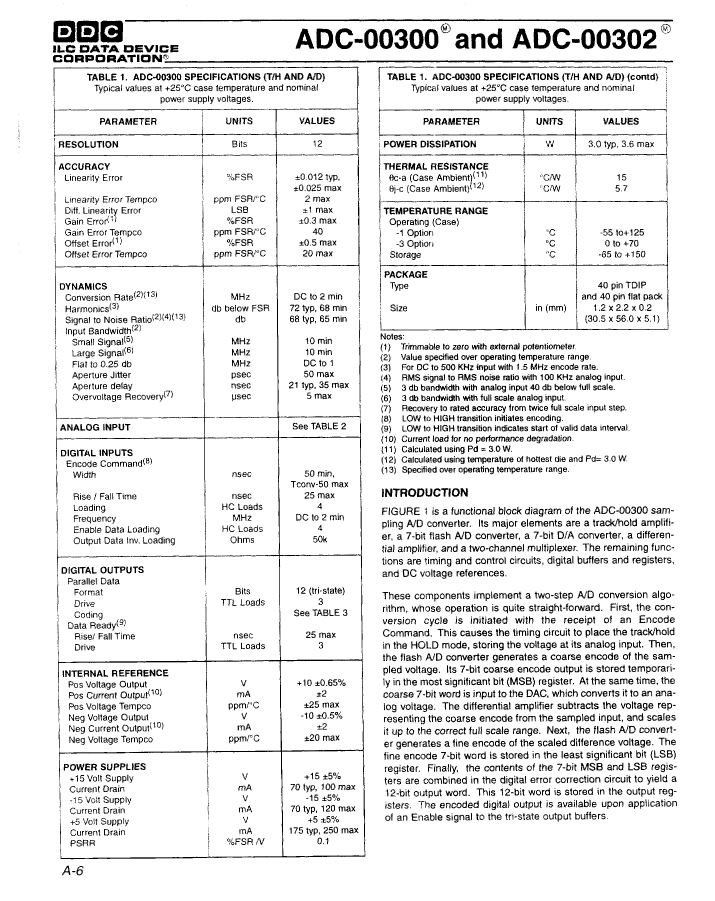

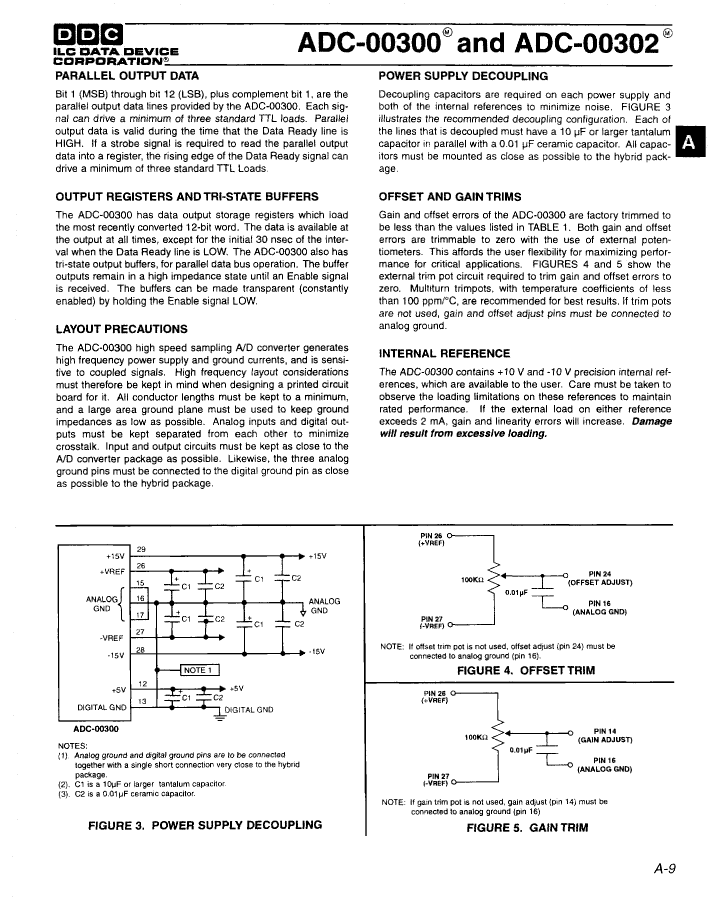

ADC-00302-11: DescriptionADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40; CategoryAnalog mixed-signal IC converter; File Size394KB，7 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

ADC-00302-11 Overview

ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40

ADC-00302-11 Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	20 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-XDFP-F40
Maximum linear error (EL)	0.025%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY, 2'S COMPLEMENT BINARY
Output format	PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Sampling rate	2 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	5.1 mm
Nominal supply voltage	15 V
surface mount	YES
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

ADC-00302-11 Related Products

	ADC-00302-11	ADC-00302-30	ADC-00302-12	ADC-00302-10	ADC-00300-30	ADC-00300-10	ADC-00300-11	ADC-00300-12
Description	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, FP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, 30.50 X 56 MM, 5.10 MM HEIGHT, TDIP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, 30.50 X 56 MM, 5.10 MM HEIGHT, TDIP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, 30.50 X 56 MM, 5.10 MM HEIGHT, TDIP-40	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, 30.50 X 56 MM, 5.10 MM HEIGHT, TDIP-40
Parts packaging code	DFP	DFP	DFP	DFP	DIP	DIP	DIP	DIP
package instruction	DFP,	FP-40	DFP,	DFP,	DIP,	DIP,	DIP,	DIP,
Contacts	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-XDFP-F40	R-XDFP-F40	R-XDFP-F40	R-XDFP-F40	R-XDIP-P40	R-XDIP-P40	R-XDIP-P40	R-XDIP-P40
Maximum linear error (EL)	0.025%	0.025%	0.025%	0.025%	0.025%	0.025%	0.025%	0.025%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of analog input channels	1	1	1	1	1	1	1	1
Number of digits	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Output bit code	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DFP	DFP	DFP	DFP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Maximum seat height	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	NO	NO	NO	NO
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
