ACM2520U-301-2P-TL datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> ACM2520U-301-2P-TL

ACM2520U-301-2P-TL: DescriptionData Line Filter, 2 Function(s), 20V, 0.3A; CategoryAnalog mixed-signal IC filter; File Size78KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

ACM2520U-301-2P-TL Overview

Data Line Filter, 2 Function(s), 20V, 0.3A

ACM2520U-301-2P-TL Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.3 Ω
filter type	DATA LINE FILTER
high	1.8 mm
length	2.5 mm
Installation type	SURFACE MOUNT
Number of functions	2
Output impedance	300 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.5XB2XH1.8 (mm)
Rated current	0.3 A
Rated voltage	20 V
width	2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

(1/3)

003-02 / 20021001 / e9712_acm.fm

EMC Components

Common Mode Choke Coils for Signal Line

SMD

FEATURES

• Although greatly miniaturized, this wire-wound chip-type filter

maintains the characteristics needed for a common-mode filter.

Greatly effective in suppressing noise. Common-mode induc-

tance >1000

Ω

at 100MHz.

• Almost no affect upon even high speed signals since differential

mode impedance is kept low.

• This series includes both 2-line type and 3-line types. Used for

various types of circuits and noise. TDK has developed in the

world’s smallest size of 2012 type (L2.0xW1.2mm).

APPLICATIONS

• Used for radiation noise suppression for any electronic devices.

• Used to counter common-mode noise affecting signals within

high speed lines.

• USB line for personal computers and peripheral equipment.

• IEEE1394 line for personal computers, DVC, STB, etc.

• LVDS, panel link line for liquid crystal display panels.

ACM Series

PRODUCT IDENTIFICATION

ACM 2012 - 900 - 2P - T

(1)

(2)

(3)

(4)

(5)

(1) Series name

(2) Dimensions L

2012: 2.0

1.2mm

(3) Impedance[at 100MHz]

900: 90

Ω

(4) Number of line

2P:2-line

3P:3-line

(5) Packaging style

T: ø180mm reel taping

TL: ø330mm reel taping

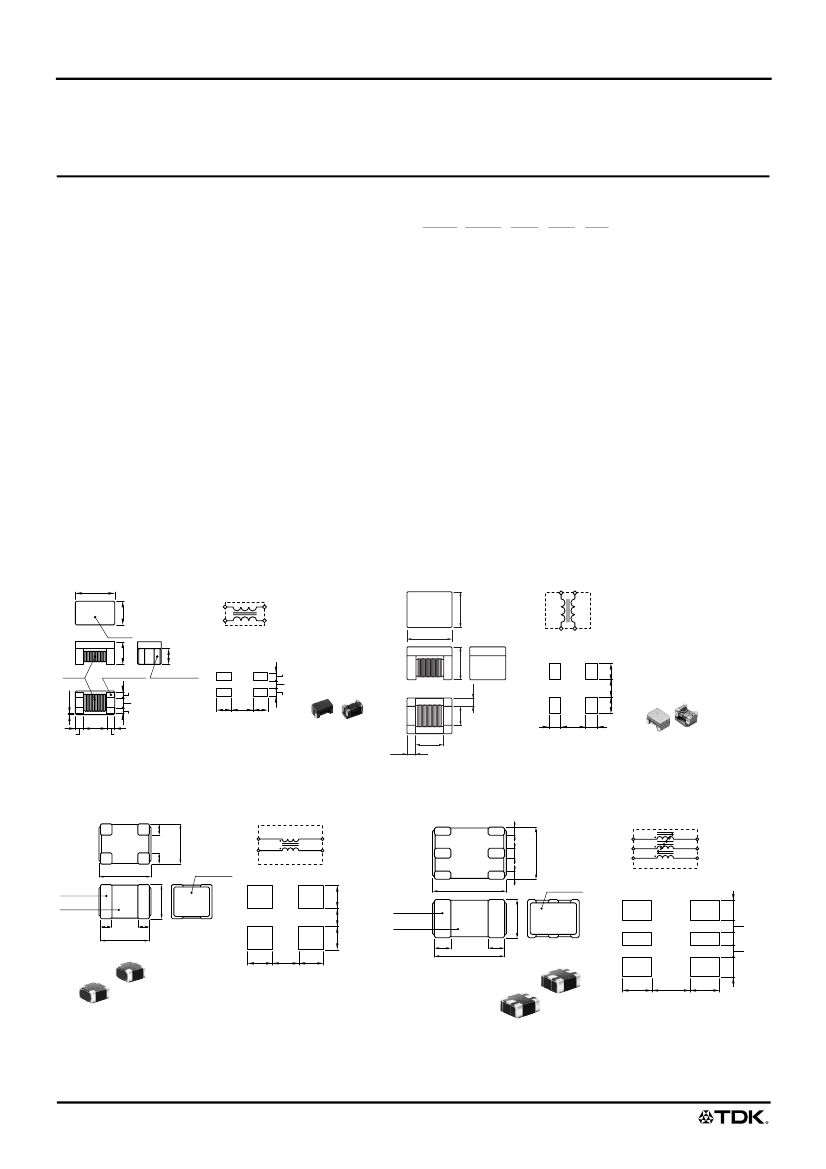

SHAPES AND DIMENSIONS/CIRCUIT DIAGRAMS/RECOMMENDED PC BOARD PATTERNS

2-LINE

ACM2012-2P

ACM2520U-2P

2.0±0.2

1.2±0.2

2.0±0.2

Ferrite

1.3max.

0.8

2.5±0.2

1.8max.

0.4

Wires

0.05

Termination

0.3

0.5

Termination

0.4

0.5

0.4

1.2

0.4

0.3

0.75 1.1 0.75

Dimensions in mm

0.5

1.0

0.4

0.65 1.4 0.65

1.5

BOTTOM VIEW

Dimensions in mm

2-LINE

ACM3225-2P

Terminal

electrode

Ferrite

0.7

0.65 0.65

2.5

±0.2

Insulation

resin

1.4

3-LINE

ACM4532-102-3P

Terminal

electrode

Ferrite

4.3

1.5

1.6

1.5

1.8

2.3

1.8

Dimensions in mm

1.2

0.5 0.75 0.5

3.2±0.2

Insulation

resin

1.2

0.8

0.7

3.2±0.2

2.3max.

4.5±0.2

2.3max.

Dimensions in mm

• All specifications are subject to change without notice.

1.4

1.1

0.9

ACM2520U-301-2P-TL Related Products

	ACM2520U-301-2P-TL	ACM2520U-102-2P-T	ACM2520U-601-2P-T	ACM2520U-601-2P-TL	ACM2520U-451-2P-TL	ACM2520U-451-2P-T	ACM2520U-301-2P-T	ACM2520U-201-2P-T	ACM2520U-201-2P-TL	ACM2520U-102-2P-TL
Description	Data Line Filter, 2 Function(s), 20V, 0.3A	Data Line Filter, 2 Function(s), 20V, 0.1A	Data Line Filter, 2 Function(s), 20V, 0.25A	Data Line Filter, 2 Function(s), 20V, 0.25A	Data Line Filter, 2 Function(s), 20V, 0.25A	Data Line Filter, 2 Function(s), 20V, 0.25A	Data Line Filter, 2 Function(s), 20V, 0.3A	Data Line Filter, 2 Function(s), 20V, 0.3A	Data Line Filter, 2 Function(s), 20V, 0.3A	Data Line Filter, 2 Function(s), 20V, 0.1A
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.3 Ω	0.55 Ω	0.4 Ω	0.4 Ω	0.35 Ω	0.35 Ω	0.3 Ω	0.25 Ω	0.25 Ω	0.55 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
length	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2	2	2	2	2	2	2
Output impedance	300 OHM Ω	1000 OHM Ω	600 OHM Ω	600 OHM Ω	450 OHM Ω	450 OHM Ω	300 OHM Ω	200 OHM Ω	200 OHM Ω	1000 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)	L2.5XB2XH1.8 (mm)
Rated current	0.3 A	0.1 A	0.25 A	0.25 A	0.25 A	0.25 A	0.3 A	0.3 A	0.3 A	0.1 A
Rated voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
width	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Manufacturer's serial number	-	ACM	ACM	ACM	-	ACM	ACM	ACM	ACM	-
