AIAC-1812-33NK: DescriptionGeneral Purpose Inductor, 0.033uH, 10%, 1 Element, Air-Core, SMD, CHIP; CategoryPassive components inductor; File Size212KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AIAC-1812-33NK Overview

General Purpose Inductor, 0.033uH, 10%, 1 Element, Air-Core, SMD, CHIP

AIAC-1812-33NK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
core material	AIR
DC Resistance	4.8 Ω
Nominal inductance(L)	0.033 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
self resonant frequency	2.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED AT 0.003 A DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	150 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

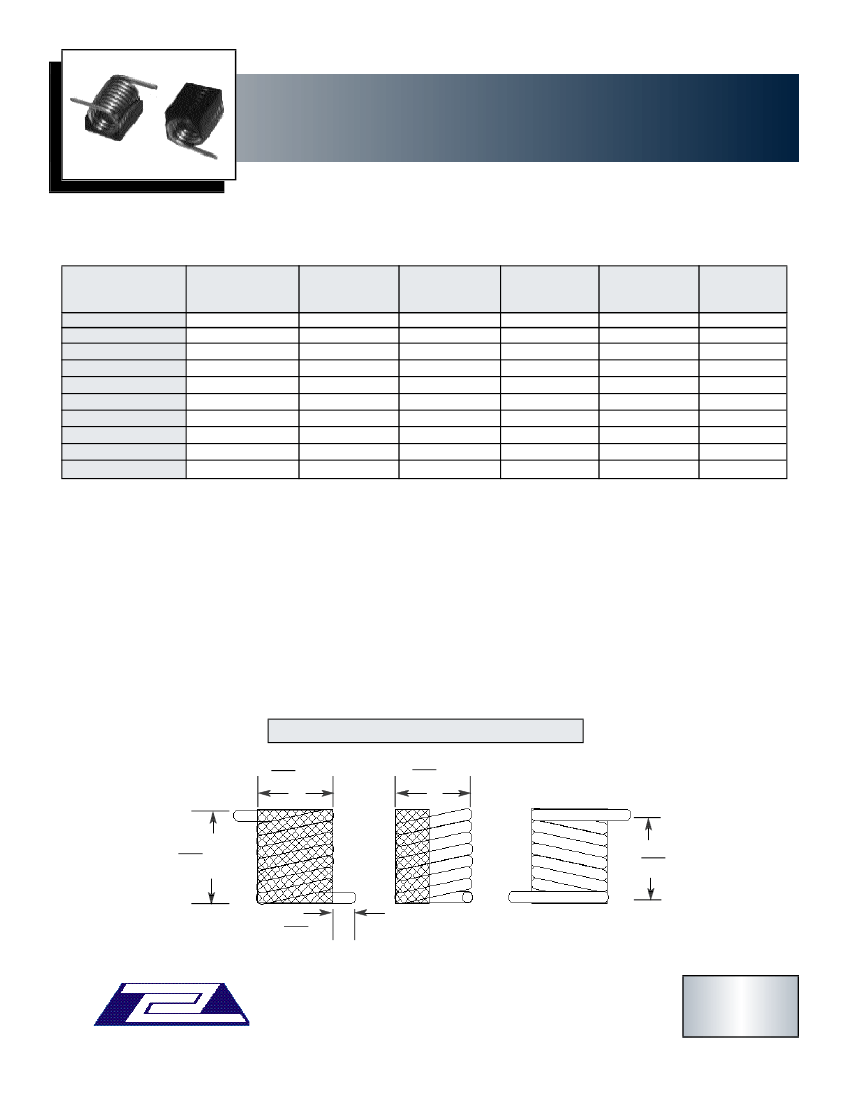

SURFACE-MOUNT AIR COIL

AIAC-1812 SERIES

STANDARD SPECIFICATIONS

Part

Number

2

L

1,2

(nH)

22

27

33

39

47

56

68

82

100

120

Q

(MIN)

L

Test

(MHz)

SRF

(MIN)

(MHz)

DCR

Ω

(MAX)

I

DC

3

(mA)

(MAX)

AIAC-1812-22N

AIAC-1812-27N

AIAC-1812-33N

AIAC-1812-39N

AIAC-1812-47N

AIAC-1812-56N

AIAC-1812-68N

AIAC-1812-82N

AIAC-1812-R10

AIAC-1812-R12

100

150

3.2

2.7

2.5

2.1

1.5

1.3

1.2

1.1

4.2

4.5

4.8

5.0

5.6

6.2

8.2

9.4

12.3

17.5

3

2.5

2.0

1.7

1.5

Notes:

1. Inductance (L) tolerance: G = 2%, J = 5%, K = 10%, M = 20%

2. Letter suffix indicates standard tolerance

3. Current rating at which inductance (L) drops 10%

4. Operating temperature -40

o

C to +125

o

C

6. Dimensions: inches / mm; see spec sheet for tolerance limits

7. Marking per EIA-4 band color code

8. Specifications subject to change without notice

PHYSICAL CHARACTERISTICS

6

0.150

MAX

(3,81)

0.165

MAX

(4,20)

0.195

MAX

(4,95)

0.170

(4,32)

0.060

(1,53)

ABRACON

38

®

CORPORATION

29 Journey • Aliso Viejo, CA 92656 • USA

(949) 448-7070

•

F

AX

: (949) 448-8484

E-

MAIL

:

abinfo

@

abracon.com •

I

NTERNET

A

DDRESS

:

www.abracon.com

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED
