AISM-1008-R15K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AISM-1008-R15K

AISM-1008-R15K: DescriptionGeneral Purpose Inductor, 0.15uH, 10%, 1 Element, SMD, CHIP; CategoryPassive components inductor; File Size3MB，4 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm

Download Datasheet Parametric Compare View All

AISM-1008-R15K Overview

General Purpose Inductor, 0.15uH, 10%, 1 Element, SMD, CHIP

AISM-1008-R15K Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.42 Ω
Nominal inductance(L)	0.15 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AISM-1008
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.48 A
self resonant frequency	550 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25.2 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

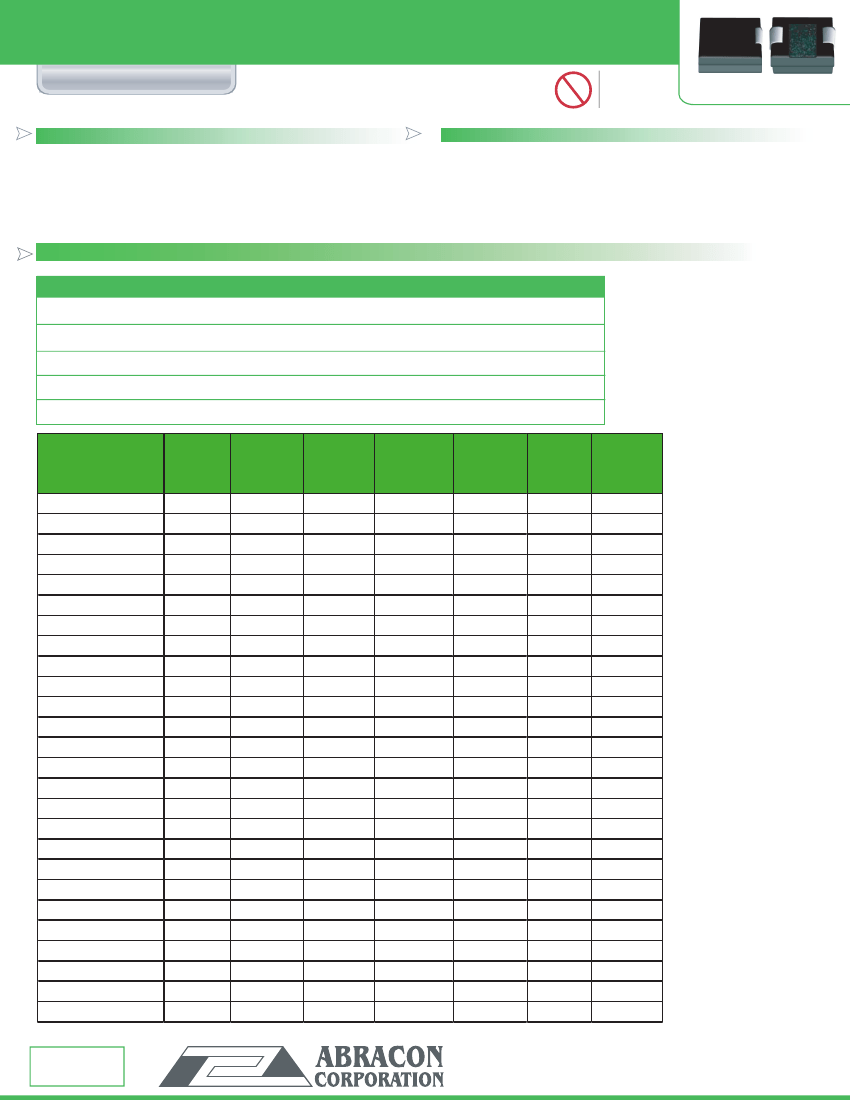

SMD Molded Wound Chip inductor

AISM-1008

FEATURES:

• Highly reliable in sudden temperature and humidity change

• Resistant to mechanical shocks and high temperature

• Accurate dimensions for automatically surface mounted

• Low DCR and High current, suitable for power line application

• Wide range of inductance value

RoHS

Compliant

APPLICATIONS:

• xDSL, mobile base stations

• TVs, VCRs, digital cameras

• Automobile audio sytems, ECU systems

• HDDs, ODDs

1.8 x .098 x .079mm

| | | | | | | | | | | | | | |

ELECTRICAL SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

AISM-1008-XXX

Operating Temperature: -40°C to + 105°C

(Including self-temperature rise)

Storage Temperature: -40°C to + 105°C

Self Temperature Arising: <20°C

Rating Current:

When the rating current flows, inductance should not drop more than 10%

Part No.

AISM-1008-R01

AISM-1008-R012

AISM-1008-R015

AISM-1008-R018

AISM-1008-R022

AISM-1008-R027

AISM-1008-R033

AISM-1008-R039

AISM-1008-R047

AISM-1008-R056

AISM-1008-R068

AISM-1008-R082

AISM-1008-R10

AISM-1008-R12

AISM-1008-R15

AISM-1008-R18

AISM-1008-R22

AISM-1008-R27

AISM-1008-R33

AISM-1008-R39

AISM-1008-R47

AISM-1008-R56

AISM-1008-R68

AISM-1008-R82

AISM-1008-1R0

AISM-1008-1R2

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

(µH)

0.01

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

Tolerance

(%)

typ.

L, Q

(MHz)

100

25.2

7.96

SRF

(MHz)min.

2150

2050

2000

1850

1650

1550

1450

1350

1200

1100

1050

900

800

700

550

500

450

425

400

375

350

325

300

260

245

230

DCR

(Ω) max.

0.26

0.27

0.29

0.31

0.37

0.40

0.42

0.45

0.50

0.60

0.65

0.75

0.80

0.30

0.35

0.40

0.50

0.55

0.60

0.65

0.68

0.75

0.85

1.00

1.10

1.20

Idc*

(mA)max.

530

500

480

450

420

410

400

380

360

340

320

300

280

550

500

475

450

425

400

375

350

325

300

260

245

230

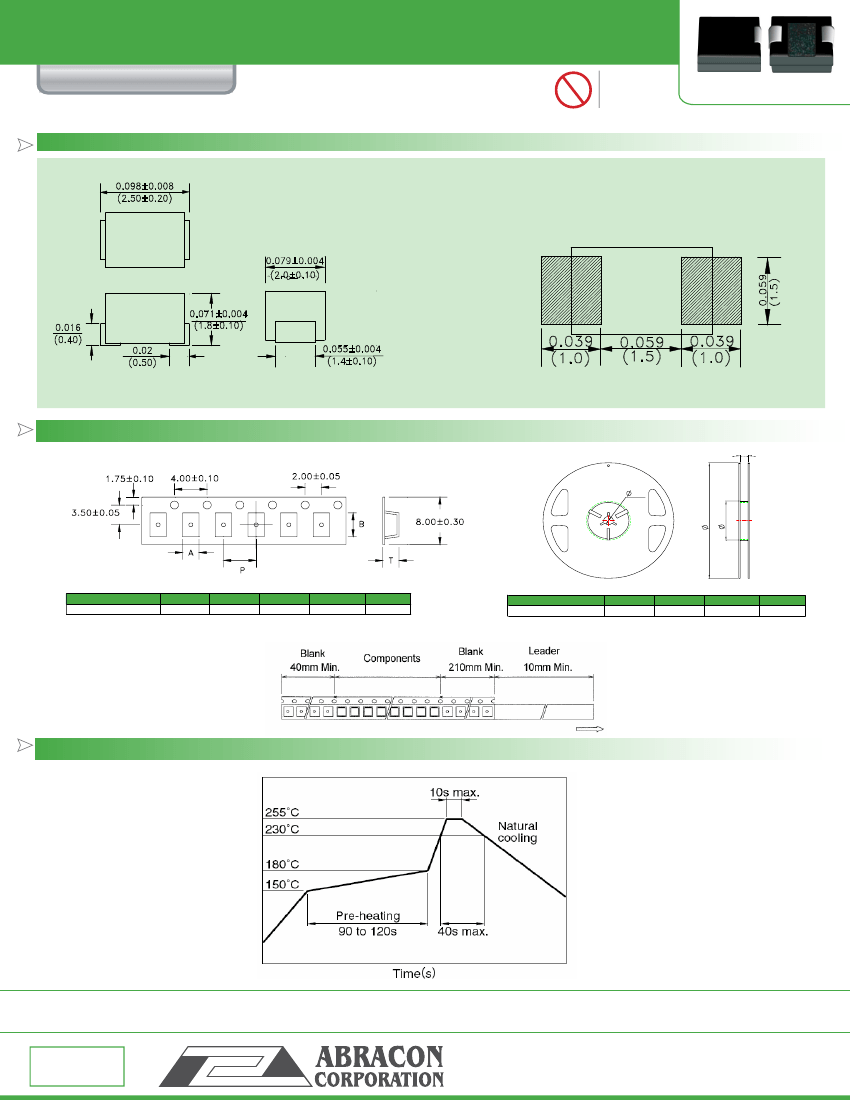

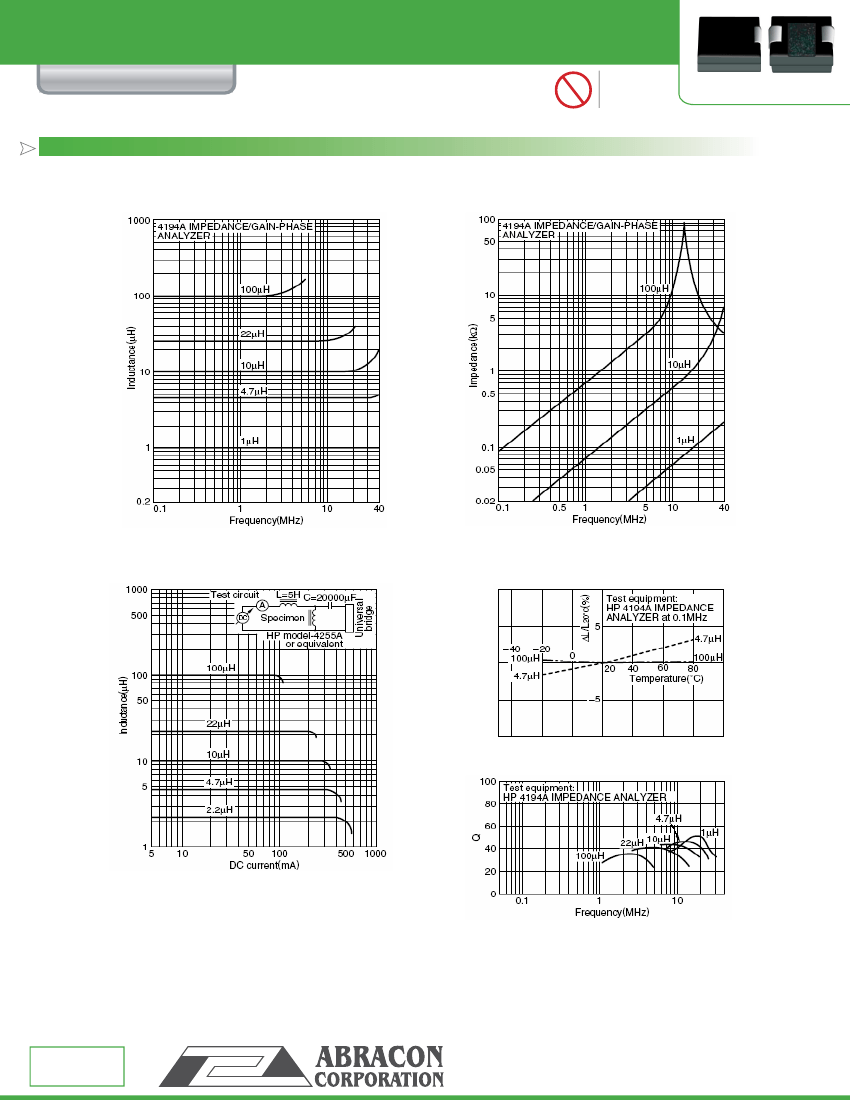

Revised: 08.11.09

30332

Esperanza, Rancho Santa Margarita, California

92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

AISM-1008-R15K Related Products

	AISM-1008-R15K	AISM-1008-R18K	AISM-1008-R12K
Description	General Purpose Inductor, 0.15uH, 10%, 1 Element, SMD, CHIP	General Purpose Inductor, 0.18uH, 10%, 1 Element, SMD, CHIP	General Purpose Inductor, 0.12uH, 10%, 1 Element, SMD, CHIP
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
DC Resistance	0.42 Ω	0.46 Ω	0.37 Ω
Nominal inductance(L)	0.15 µH	0.18 µH	0.12 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AISM-1008	AISM-1008	AISM-1008
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	30	30	30
Maximum rated current	0.48 A	0.46 A	0.52 A
self resonant frequency	550 MHz	500 MHz	600 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
surface mount	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	25.2 MHz	25.5 MHz	25.2 MHz
Tolerance	10%	10%	10%
Base Number Matches	1	1	1
