BW9022BB: DescriptionPushbutton Switch, SPST, Momentary, 7A, 28VDC, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size73KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BW9022BB Overview

Pushbutton Switch, SPST, Momentary, 7A, 28VDC, Solder Terminal, Panel Mount-threaded

BW9022BB Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body height	13.1 mm
Body length or diameter	8.7 mm
Contact (AC) maximum rated R load	7A@125VAC
Maximum contact current (AC)	7 A
Maximum contact current (DC)	7 A
Contact (DC) maximum rated R load	7A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	10000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating force	9.99 N
seal	DUST PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

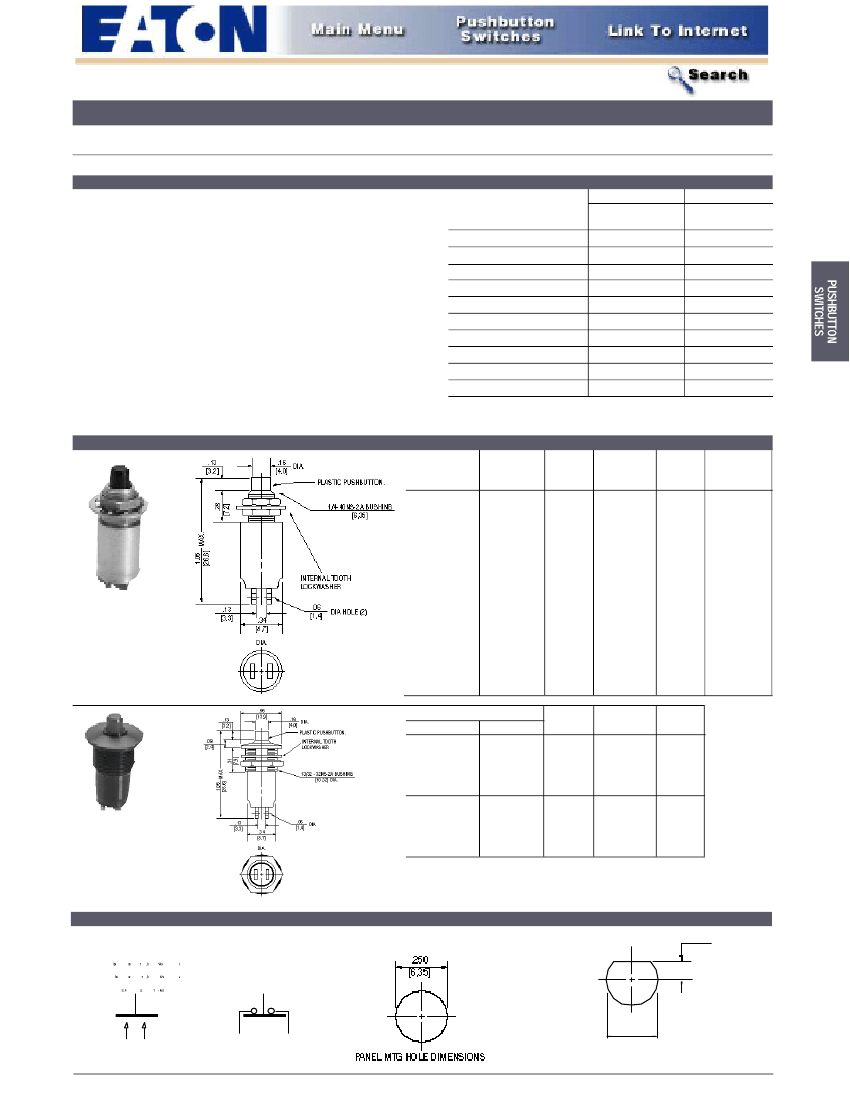

PUSHBUTTON SWITCHES

Sub-Miniature Pushbutton Switches

FEATURES

• Sealed or unsealed versions

• Low operating force

• Momentary snap action

• EMI/RFI version (BR7070)

• Black or red adapter colors available

• Clear or black case colors available

• Compact, space saving design

SPECIFICATIONS

• MIL-S-8805 approved

• Total plunger travel:

0.093 in. (2.36mm) minimum

•Electrical life: 25,000 operations minimum

at de-rated current

10,000 operations minimum

at rated current

•Operating force:

B9000

1.5 (6.66N ± .5 lb (2.22N)

BW9000 1.75 (7.77N) ± .5 lb (2.22N)

B7070

1.5 (6.66N) ± .75 lb (3.33N)

BR7070 2.0 (8.88N) ± .75 lb (3.33N)

• Weight approx.:

B9000

0.01 lb (4.5g) Max.

BW9000 0.01 lb (4.5g) Max.

B7070

0.02 lb (9.1g) Approx.

BR7070 0.02 lb (9.1g) Max.

•EMI/RFI shielded (BR7070 only)

Part

Number

Number of Poles

B9001

B9002

BW9001

BW9002

B9021

B9022

BW9021

BW9022

B7070

BR7070

CURRENT RATINGS

28VDC

Type of

Operation

Momentary

Resistive Inductive

Load

125VAC

Resistive Inductive

Load

Loadx

p.f. = .75

EMI/RFI shielded

SERIES TYPE

APPROXIMATE DIMENSIONS

Catalog

Number

B9001R

B9001B

B9002R

B9002B

B9001BR

B9001BB

B9002BR

B9002BB

BW9001R

BW9001B

BW9002R

BW9002B

BW9001BR

BW9001BB

B9002BR

B9002BB

Militar y

Part Numbers

M8805/96

-001

-002

-003

-004

-005

-006

-007

-008

-009

-010

-011

-012

-013

-014

-015

-016

SELECTION TABLES

Button

Color

Red

Black

Red

Black

Red

Black

Red

Black

Red

Black

Red

Black

Red

Black

Red

Black

Circuit

SPST-NO

SPST-NC

SPST-NO

SPST-NC

SPST-NO

SPST-NC

SPST-NO

SPST-NC

Case

Color

Clear

Black

Clear

Black

Case

Color

Clear

Black

Clear

Black

Button

Color

Black

Red

Black

Red

Black

Red

Black

Red

Enclosure

Design

(unsealed)

(dust tight)

B900 1, 2

Single Pole

Solder Terminals

Catalog Number

Standard

Dust tight

B9021CB

B9021CR

B9021BB

B9021BR

B9022CB

B9022CR

B9022BB

B9022BR

BW9021CB

BW9021CR

BW9021BB

BW9021BR

BW9022CB

BW9022CR

BW9022BB

BW9022BR

Circuit

SP-NO

SP-NC

B9021, 22

Single Pole

Solder Terminals

SCHEMATIC DIAGRAMS––B AND BW SERIES

PANEL CUT-OUT
