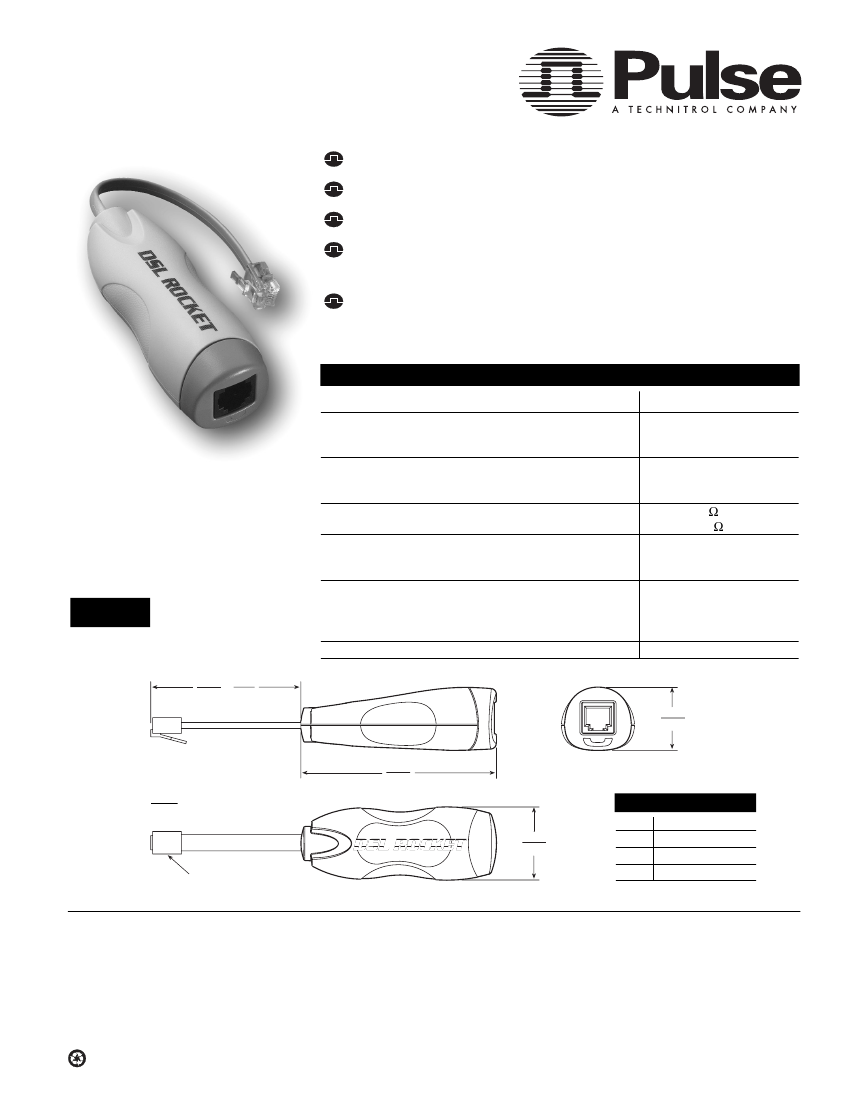

ADSL CPE IN-LINE

PHONE FILTER

DSL Rocket

™

Meets/exceeds pending T1E1.4 standard

Compatible with Home Phoneline Networking systems

FCC approved – registration #PLSMUL-42028-XT-N

Compact package, includes RJ-11 telephone

connectors for ease of installation

Passes call waiting, caller ID and voice band signals

while attenuating the higher ADSL data frequencies

Electrical Specifications @ 25°C — Operating Temperature -40°C to 65°C

PARAMETERS

Off hook insertion loss @ 1 kHz

Single filter

With 5 filters

Off hook insertion loss @ 200 Hz – 4.0 kHz

Single filter

With 5 filters

Total DC resistance

Tip to Ring

Longitudinal Balance

200 Hz – 1 kHz

1 kHz – 3 kHz

Return Loss with ATU-R (1 to 5 filters)

200 Hz

1 kHz

2.2 kHz

ADSL Frequency Rejection @ 25 kHz – 10 MHz

SPECIFICATIONS

0.5 dB MAX

1.0 dB MAX

2.5 dB MAX

20 MAX

10 M MAX

-65 dB MIN

-56 dB MIN

-13 dB MIN

-11 dB MIN

21 dB MIN, 25 dB TYP

B8004

Mechanical Dimensions

3.250 ± .025

82,55 0,64

1.050

26,67

Weight

. . . . . . . . . . . . . . .32 grams

Tray

. . . . . . . . . . . . . . . . . . .10/tray

Dimensions:

Inches

3.250

82,55

Wiring Information

1.220

30,99

Wall Plug

Pair

Path

FILTERED

UNFILTERED

NOT WIRED

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX:65 280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

PRELIMINARY B974.P (3/01)
