BC431 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC431

BC431: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size118KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

BC431 Overview

Small Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

BC431 Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	63
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

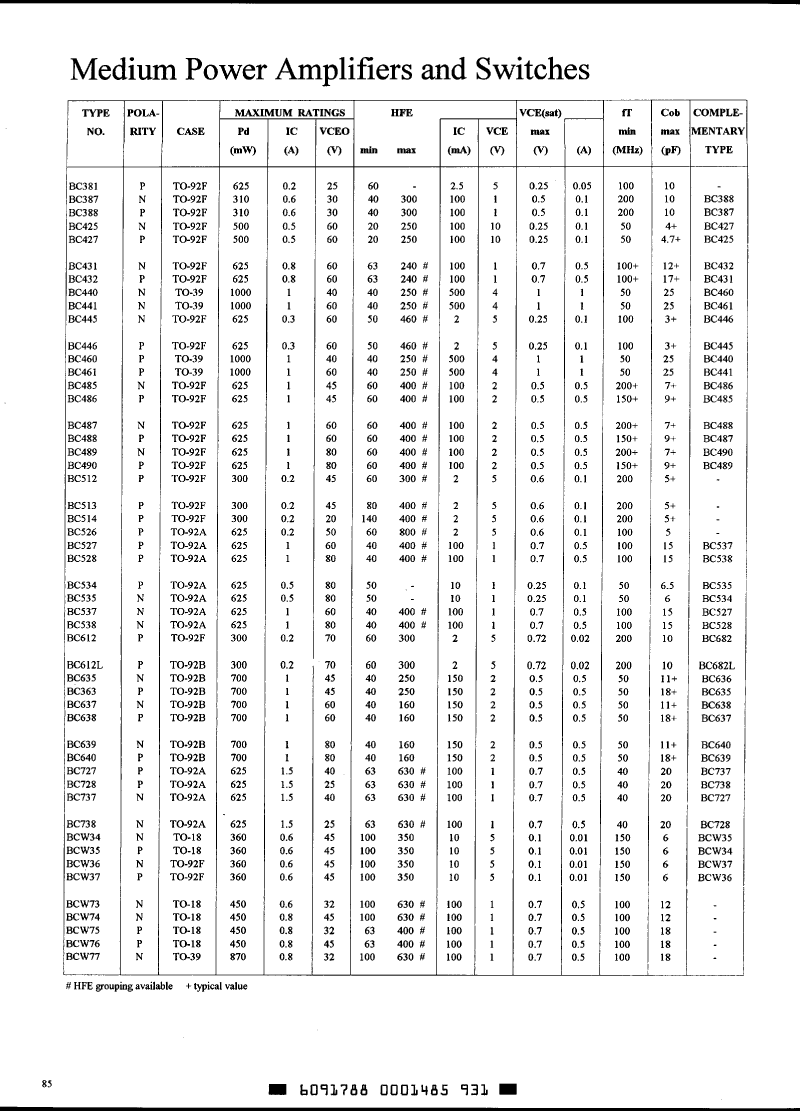

Preview

Download Datasheet

View All

BC431 Related Products

	BC431	BC514	BC427	BCW73	BCW75	BCW76	BCW34	BC612L
Description	Small Signal Bipolar Transistor, 0.8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 0.6A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon, TO-18	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.6A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 70V V(BR)CEO, 1-Element, PNP, Silicon, TO-92
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.8 A	0.2 A	0.5 A	0.6 A	0.8 A	0.8 A	0.6 A	0.2 A
Collector-emitter maximum voltage	60 V	20 V	60 V	32 V	32 V	45 V	45 V	70 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	63	140	20	100	63	63	100	60
JEDEC-95 code	TO-92	TO-92	TO-92	TO-18	TO-18	TO-18	TO-18	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-PBCY-W3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL	METAL	METAL	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	PNP	PNP	NPN	PNP	PNP	NPN	PNP
Maximum power dissipation(Abs)	0.5 W	0.3 W	0.5 W	0.45 W	0.45 W	0.45 W	0.36 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	200 MHz	50 MHz	100 MHz	100 MHz	100 MHz	150 MHz	200 MHz
Maker	-	Micro Electronics	-	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics
