BP1045A 622.08 MHz SAW Filter
•
•
•
•
Designed for SONET and SDH Clock Recovery
Low Insertion Loss
9.1 x 7.1 mm Surface-Mount Case
50
Ω
Input and Output

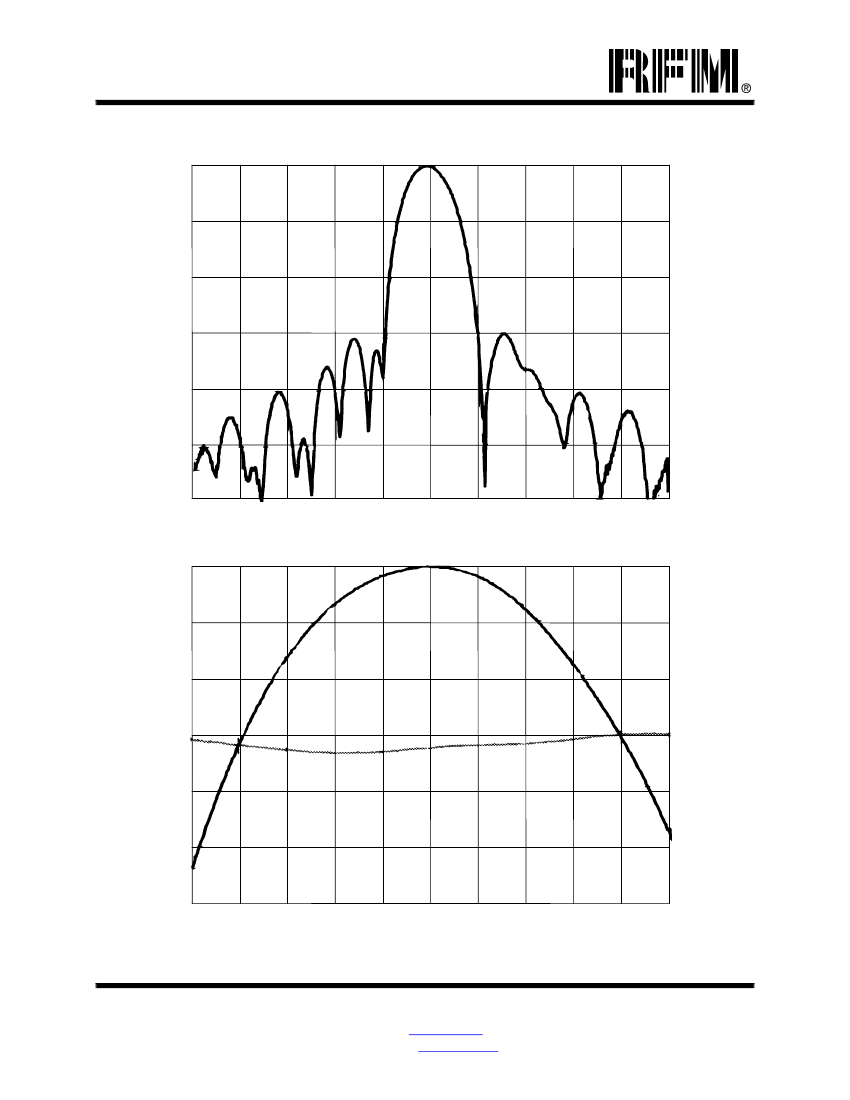

See Associated Plots
Characteristic
Center Frequency
Nominal
Center Frequency Limits
Passband
Insertion Loss at fc
Amplitude Variation
Loaded Q
3 dB Bandwidth
Transmission Phase Slope over 3 dB Bandwidth
Phase Deviation from Linear over 3 dB Bandwidth
Rejection
First Sidelobes (at approx. fc
±1.6
MHz)
Ultimate (DC to 800 MHz, excluding main & first sidelobes)
Operating Temperature Range
Impedance Matching
Case Style
Lid Symbolization (YY = year, WW = week)
Absolute Maximum Ratings
Rating
Maximum Incident Power in Passband
Max. DC voltage between any 2 terminals
Storage Temperature Range
Max Soldering Profile
Sym
fc
IL
Q
3dB
BW
3
Min
621.93
13.0
700
Typ
622.080
15.5
800
780
-0.33
30
40
Max
622.23
17.5
1.0
900
Units
MHz
dB
—
kHz
°
/ kHz
°
dB
°C
Notes
1
1, 2
1, 2, 5
1, 2, 4
1, 2
1, 2, 6
1, 2, 7
1, 2, 3
1
10
25
28
-40
T
A
+85
None to 50
Ω
Source and Load
SM9171-10 9.1 x 7.1 mm Nominal Footprint
RFM BP1045A YYWW
Electrical Connections
Connection Terminals
Port 1 Hot 10
Port 1 Gnd Return 1
Port 2 Hot 5
Port 2 Gnd Return 6
Case Ground All Others
Value
Units
+10
dBm
30
VDC
-40 to +85
°C
265°C for 10 s
Notes:
1. Unless noted otherwise, all specifications apply
over the operating temperature range
with filter soldered to the specified
demonstration board and measured with 50
Ω
network analyzer. Center frequency is defined as: ( f
3dB HIGH
- f
3dB LOW
) / 2.
2. Unless noted otherwise, all frequency specifications are referenced to the nominal center frequency, fc.
3. Rejection is measured as attenuation below the minimum IL point in the passband. Rejection in final user application is dependent
on PCB layout and external impedance matching design. See Application Note No. 42 for details. Spurious responses may exceed
ultimate rejection specification at fc x1.6 and above.
4. Quality factor, Q, is defined as: Q
3dB
= fc / ( f
3dB HIGH
- f
3dB LOW
).
5. Amplitude variation is defined as the difference between the insertion loss at the baud frequency and filter’s minimum insertion loss.
6. Transmission phase slope is measured in the frequency domain and is calculated using a linear least-squares fit or straight-line
method over the 3 dB bandwidth.
7. Phase deviation from linear is specified over the 3 dB bandwidth. It is defined as the maximum residual deviation of the
transmission phase from linear least-square fit over the 3 dB bandwidth.
8. The design, manufacturing process, and specifications of this filter are subject to change.
9. Either Port 1 or Port 2 may be used for either input or output in the design.
10. RFM, stylized RFM logo, and RF Monolithics, Inc. are registered trademarks of RF Monolithics, Inc.
11.
©Copyright
1999, RF Monolithics Inc.
12. Electrostatic Sensitive Device. Observe precautions for handling.
RF Monolithics, Inc.
4347 Sigma Road
Dallas, Texas 75244
USA
Phone: +1(972)233-2903
Fax: +1(972)387-8148
e-mail:
info@rfm.com
Home page:
www.rfm.com
European Sales Office
BP1045A 7/22/1999 R
