BCX56-6

Description
Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon
CategoryDiscrete semiconductor    The transistor
File Size106KB,4 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

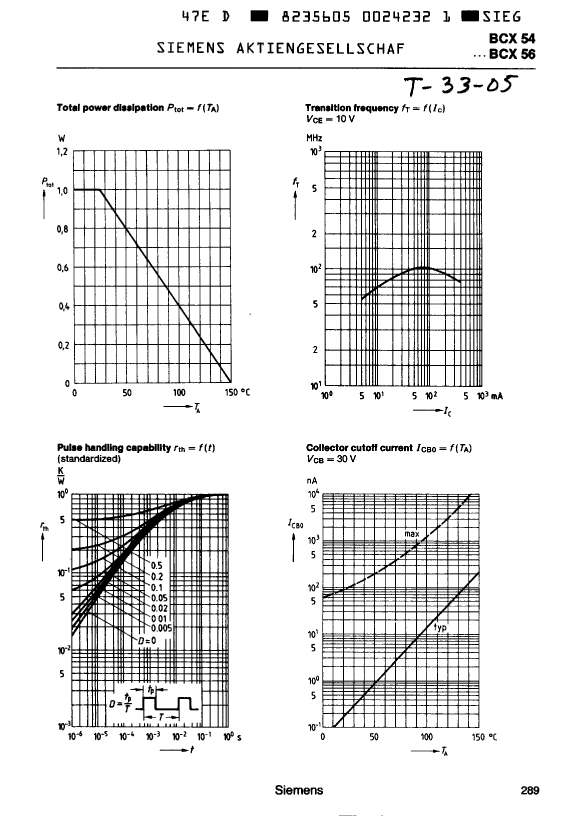

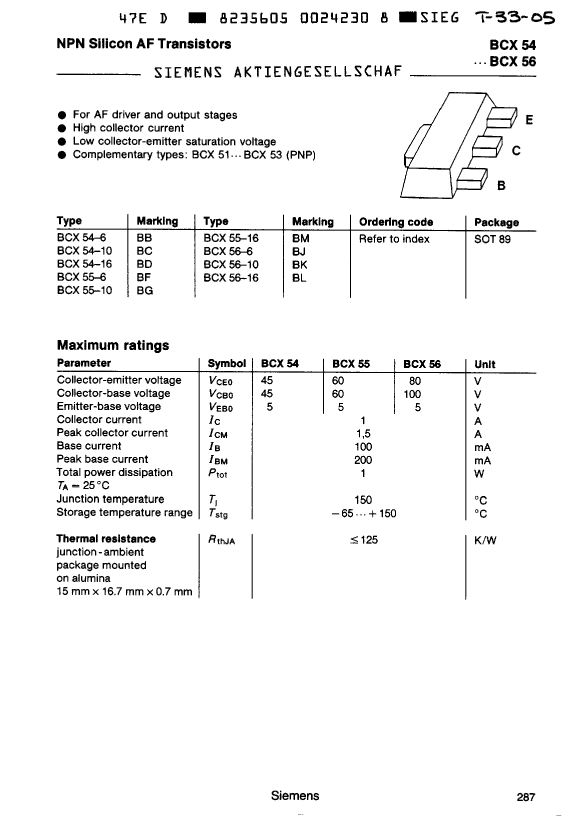

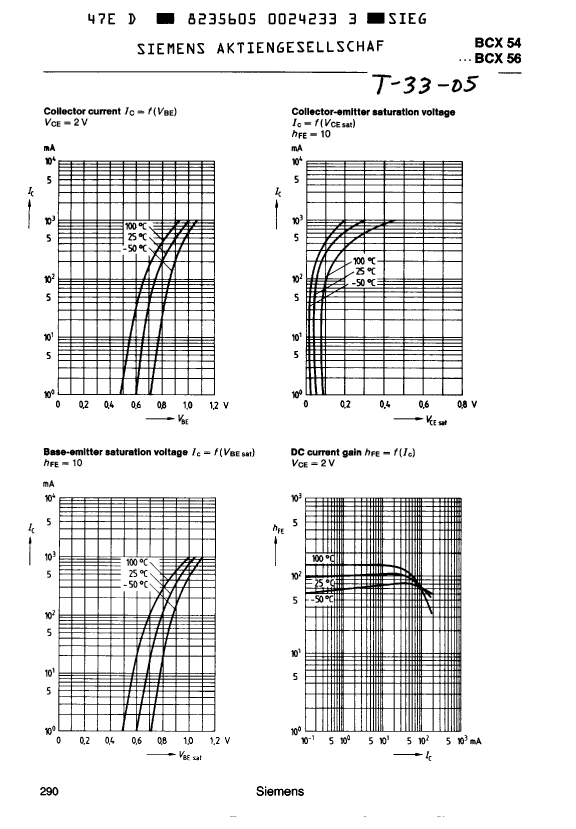

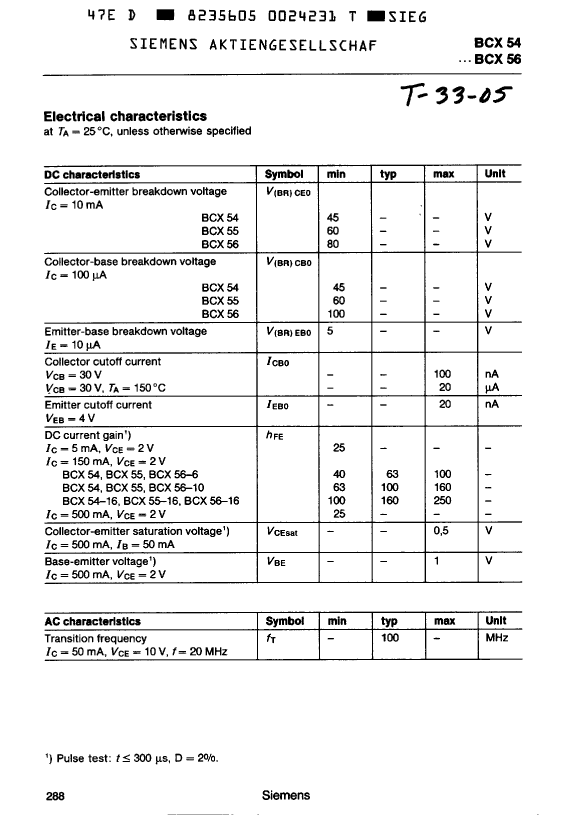

BCX56-6 Overview

Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon

BCX56-6 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1.5 A
Collector-emitter maximum voltage80 V
ConfigurationSINGLE
Minimum DC current gain (hFE)40
JESD-30 codeR-PSSO-F3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature140 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Maximum power dissipation(Abs)1 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
VCEsat-Max0.5 V
Base Number Matches1

BCX56-6 Related Products

BCX56-6 BCX54-6 BCX55-6
Description Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon Small Signal Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon Small Signal Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon
Is it Rohs certified? incompatible incompatible incompatible
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Shell connection COLLECTOR COLLECTOR COLLECTOR
Maximum collector current (IC) 1.5 A 1.5 A 1.5 A
Collector-emitter maximum voltage 80 V 45 V 60 V
Configuration SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 40 40 40
JESD-30 code R-PSSO-F3 R-PSSO-F3 R-PSSO-F3
JESD-609 code e0 e0 e0
Number of components 1 1 1
Number of terminals 3 3 3
Maximum operating temperature 140 °C 140 °C 140 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN NPN
Maximum power dissipation(Abs) 1 W 1 W 1 W
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT FLAT FLAT
Terminal location SINGLE SINGLE SINGLE
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz 100 MHz
VCEsat-Max 0.5 V 0.5 V 0.5 V
Base Number Matches 1 1 -
Maker - SIEMENS SIEMENS
