BTB25-600 datasheet, PDF - EEWORLD Datasheet

BTB25-600: DescriptionTHYRISTOR MODULE,TRIAC; CategoryAnalog mixed-signal IC Trigger device; File Size265KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

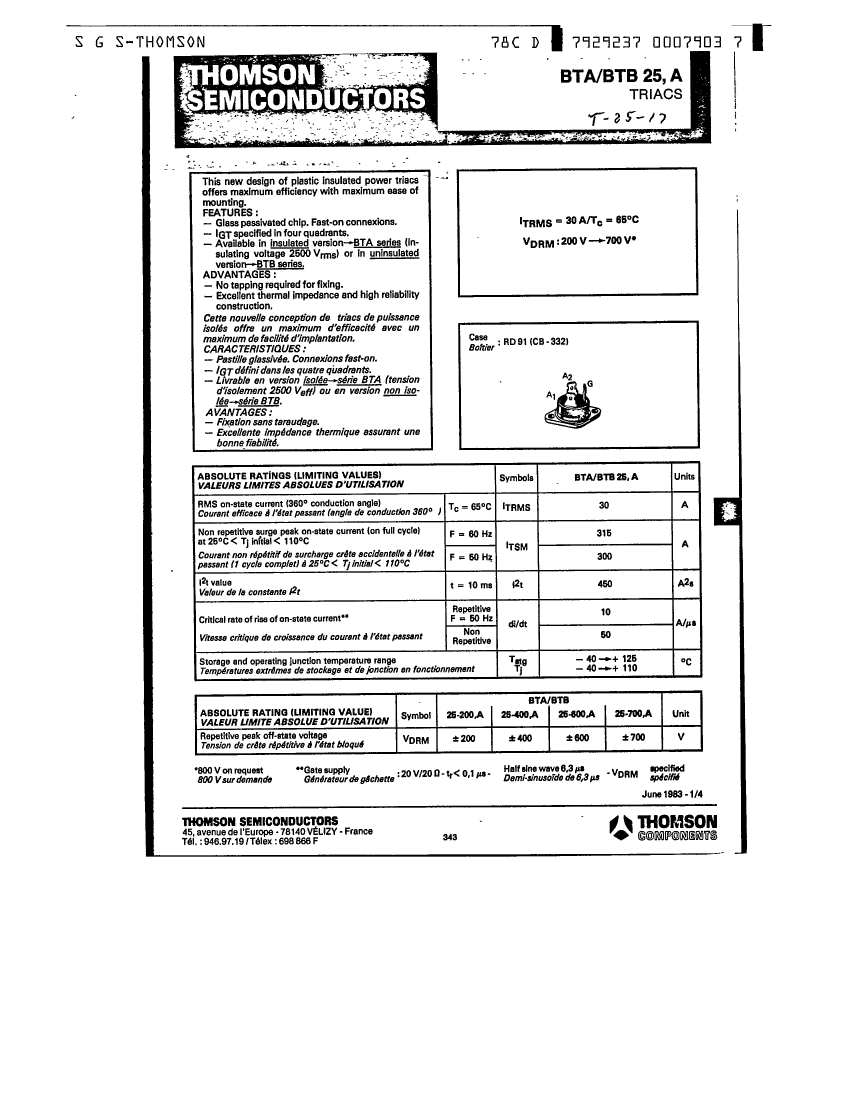

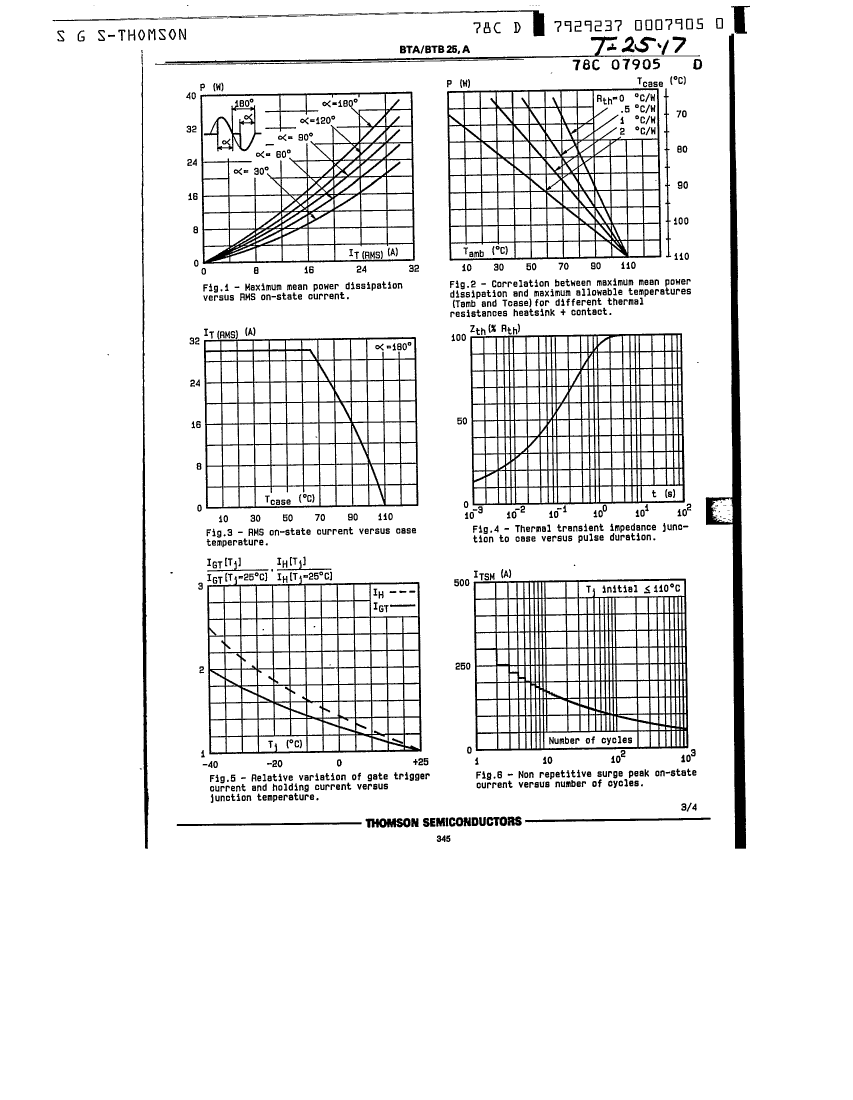

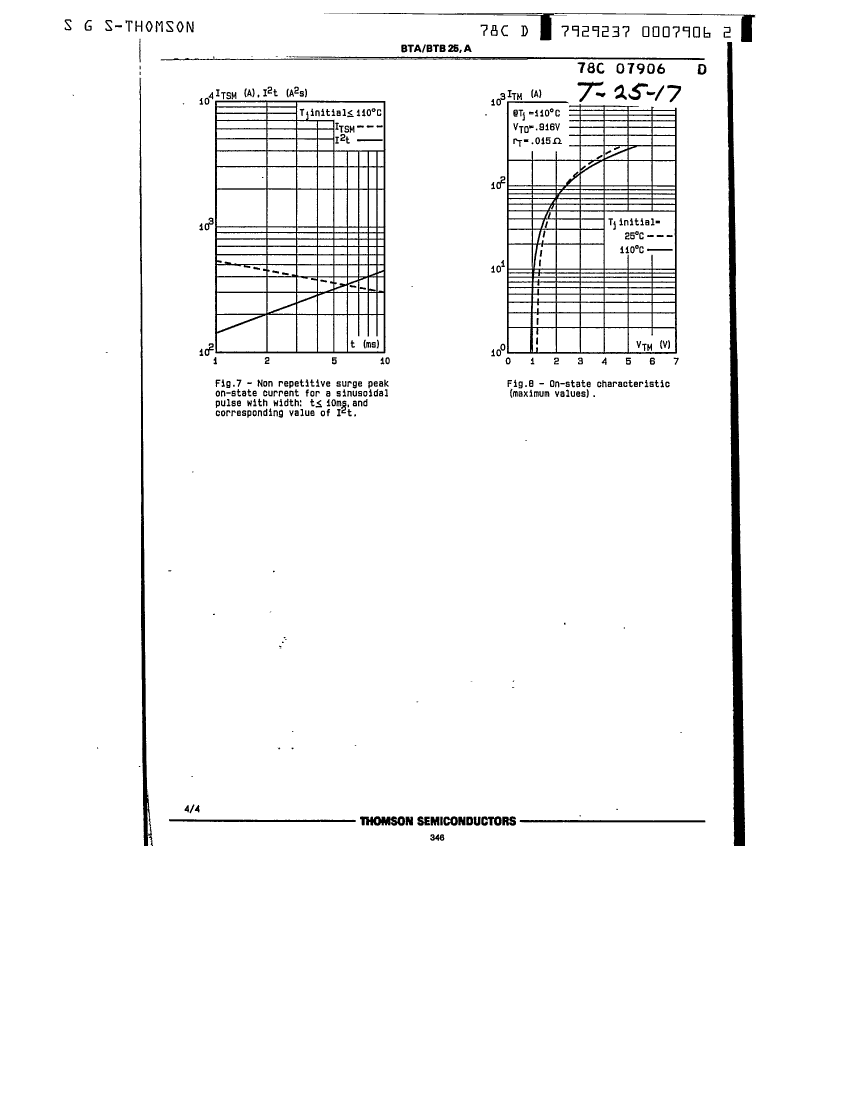

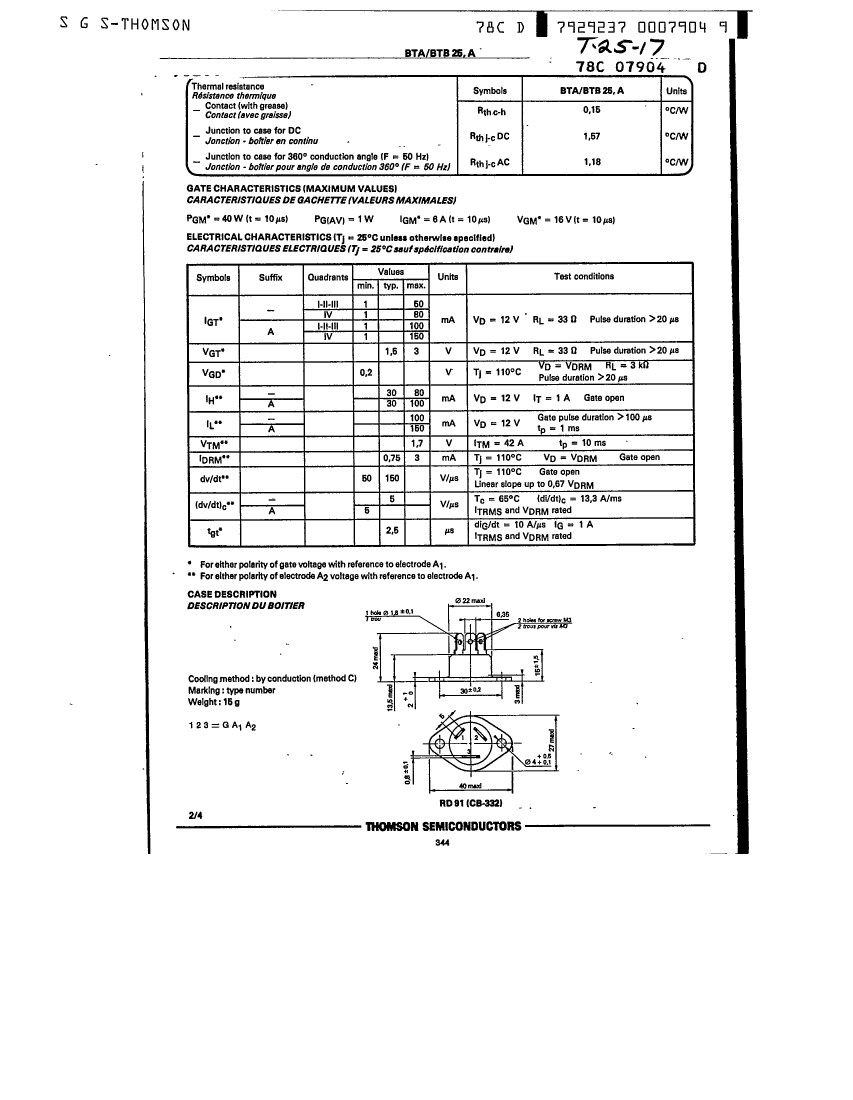

BTB25-600 Overview

THYRISTOR MODULE,TRIAC

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G-MT1-MT2
Description of screw terminals	0
Maximum holding current	80 mA
Maximum leakage current	3 mA
On-state non-repetitive peak current	315 A
Number of components	1
Maximum on-state voltage	1.7 V
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Trigger device type	TRIAC
Base Number Matches	1

	BTB25-600	BTB25-200	BTB25-200A	BTB25-400	BTB25-400A	BTB25-600A	BTB25-700	BTB25-700A
Description	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC	THYRISTOR MODULE,TRIAC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum DC gate trigger current	50 mA	50 mA	100 mA	50 mA	100 mA	100 mA	50 mA	100 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Quick connection description	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2	G-MT1-MT2
Maximum holding current	80 mA	80 mA	100 mA	80 mA	100 mA	100 mA	80 mA	100 mA
Maximum leakage current	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
On-state non-repetitive peak current	315 A	315 A	315 A	315 A	315 A	315 A	315 A	315 A
Number of components	1	1	1	1	1	1	1	1
Maximum on-state voltage	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Base Number Matches	1	1	1	1	1	1	1	1
