BH6510FS-E2 datasheet, PDF - EEWORLD Datasheet

BH6510FS-E2: DescriptionBrush DC Motor Controller, 0.5A, MOS, PDSO32, SSOP-32; CategoryOther integrated circuit (IC) The signal circuit; File Size148KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

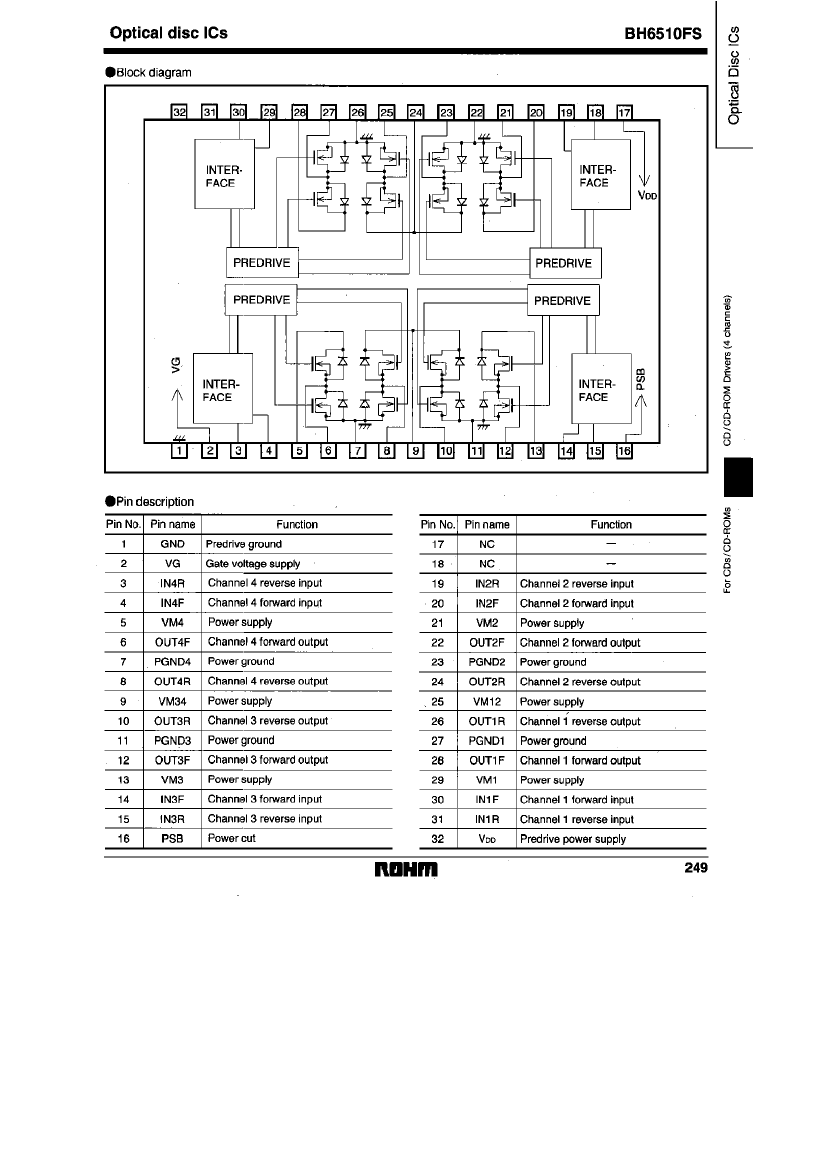

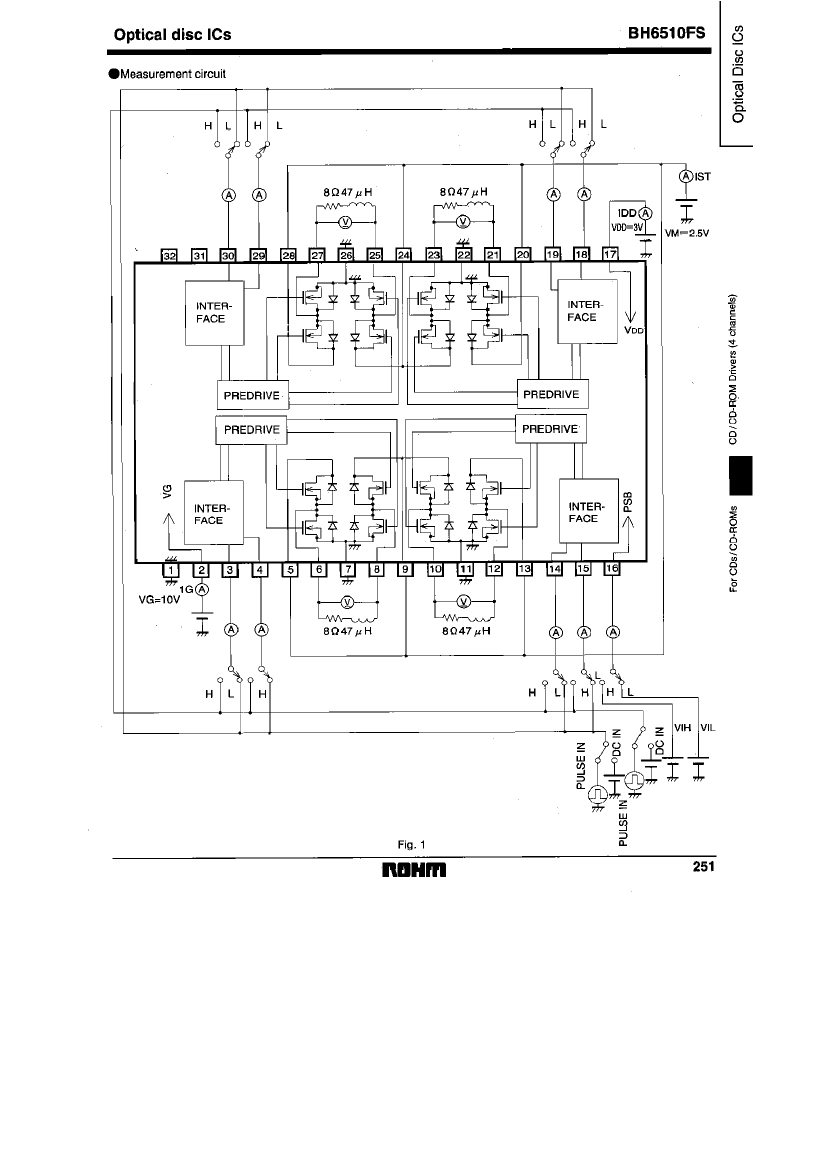

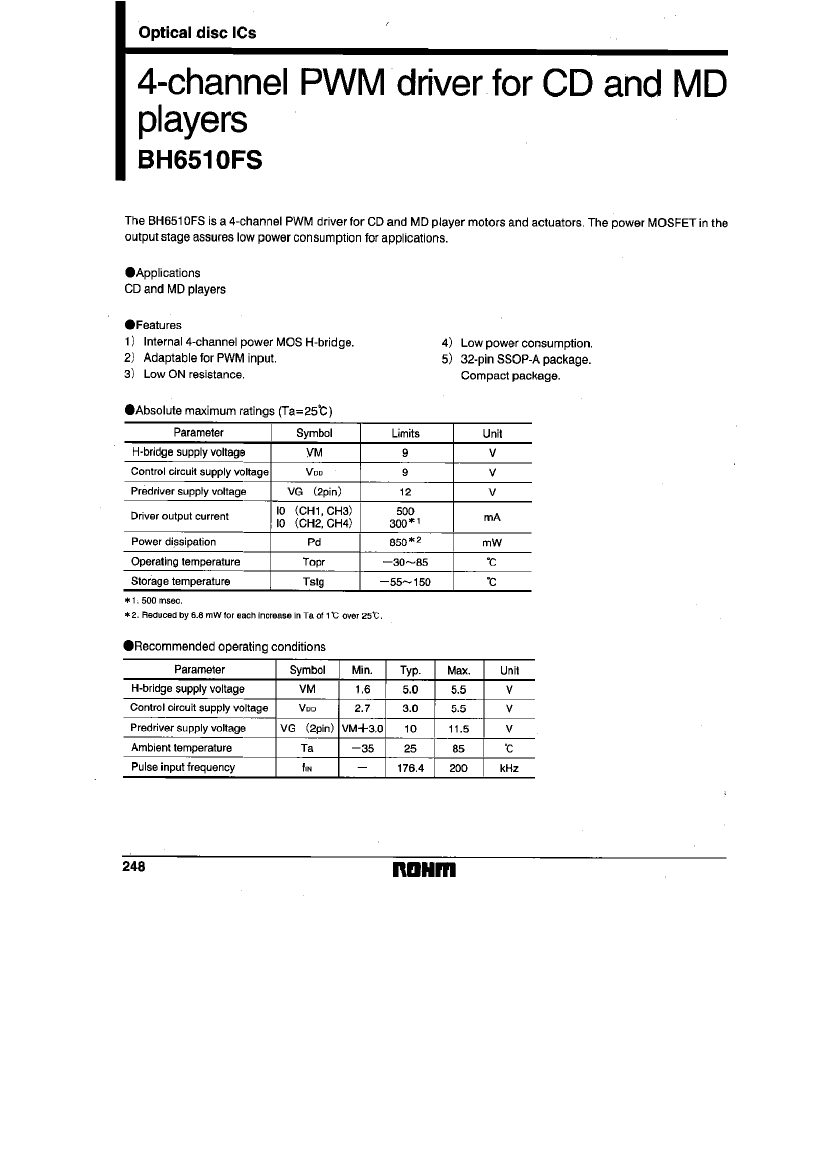

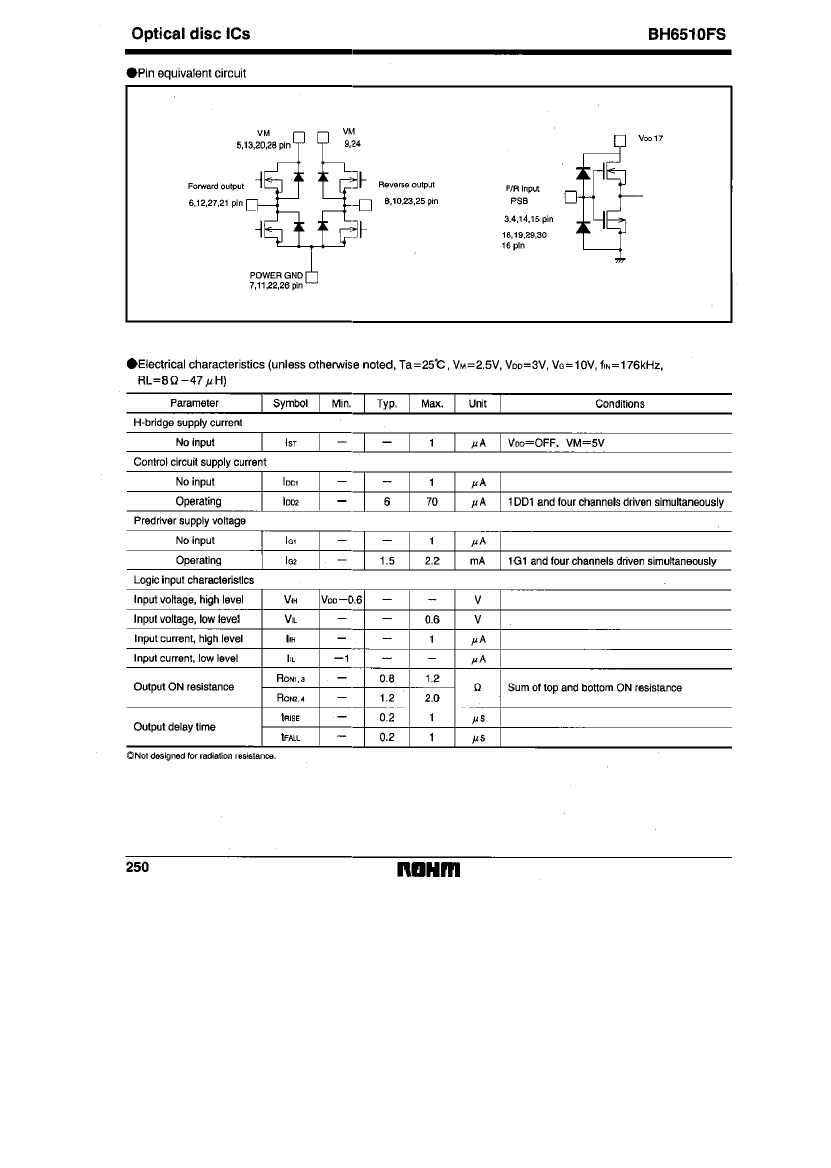

BH6510FS-E2 Overview

Brush DC Motor Controller, 0.5A, MOS, PDSO32, SSOP-32

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	SSOP, SOP32,.3,32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G32
JESD-609 code	e3/e2
length	13.6 mm
Number of functions	4
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP32,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	2.5,3 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	MOS
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm
Base Number Matches	1
