BTD48-12S100S datasheet, PDF - EEWORLD Datasheet

BTD48-12S100S: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 12W, Hybrid, ROHS COMPLIANT, SMD-7; CategoryPower/power management The power supply circuit; File Size1MB，14 Pages; ManufacturerBellnix Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

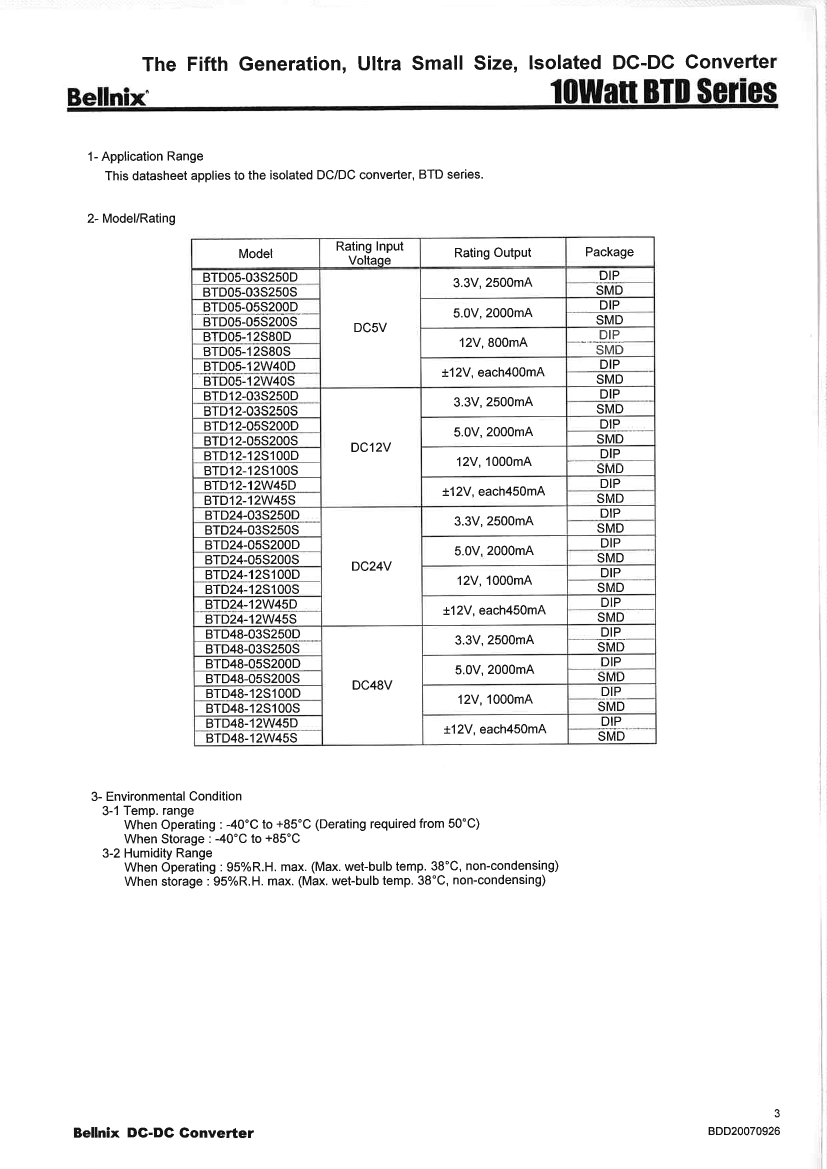

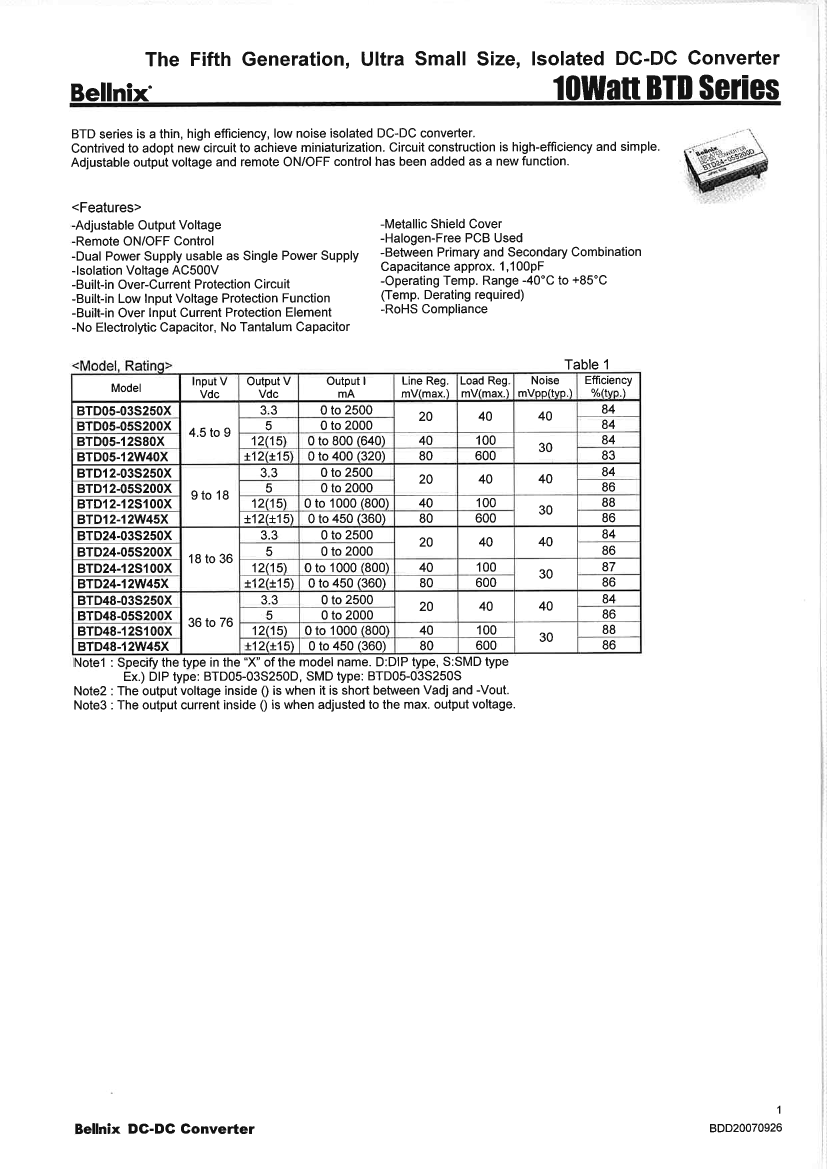

BTD48-12S100S Overview

DC-DC Regulated Power Supply Module, 2 Output, 12W, Hybrid, ROHS COMPLIANT, SMD-7

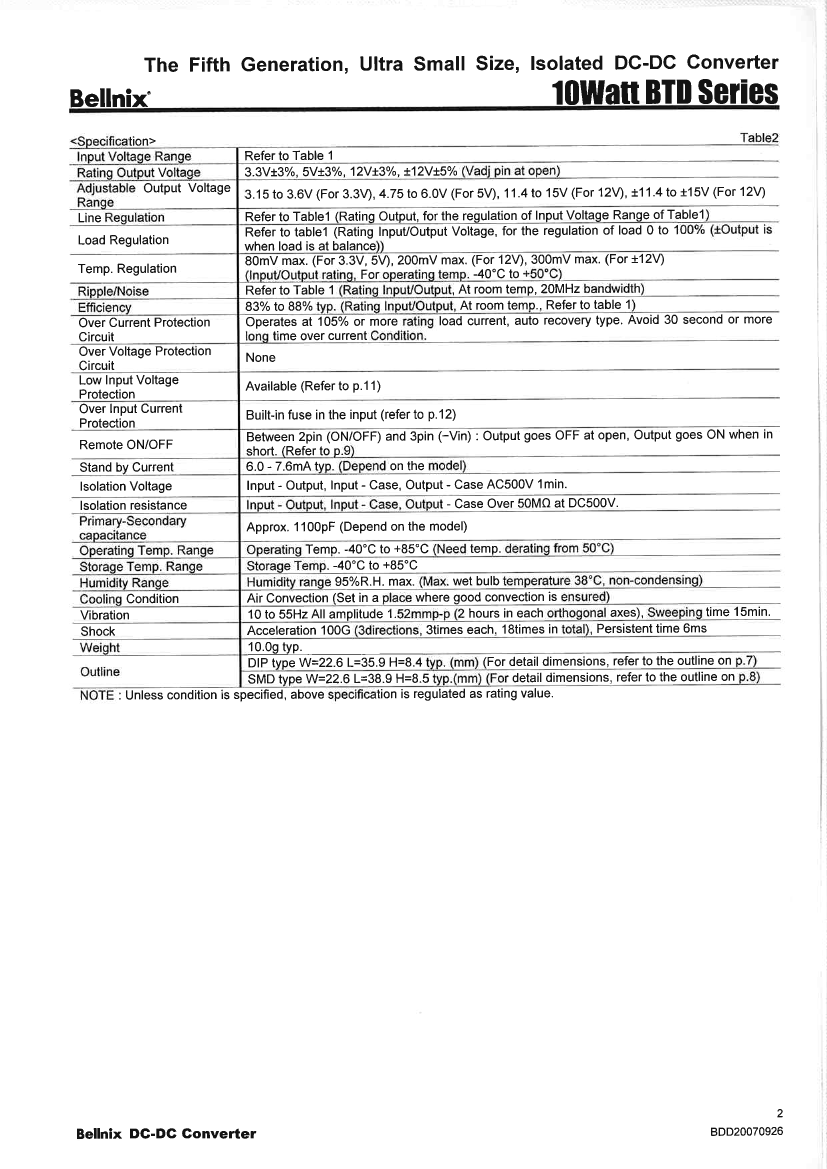

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Other features	ADDITIONAL 12 AND 15 V VOUT AVAILABLE; LG-MAX
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	76 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-MDMA-G7
length	36.4 mm
Number of functions	1
Output times	2
Number of terminals	7

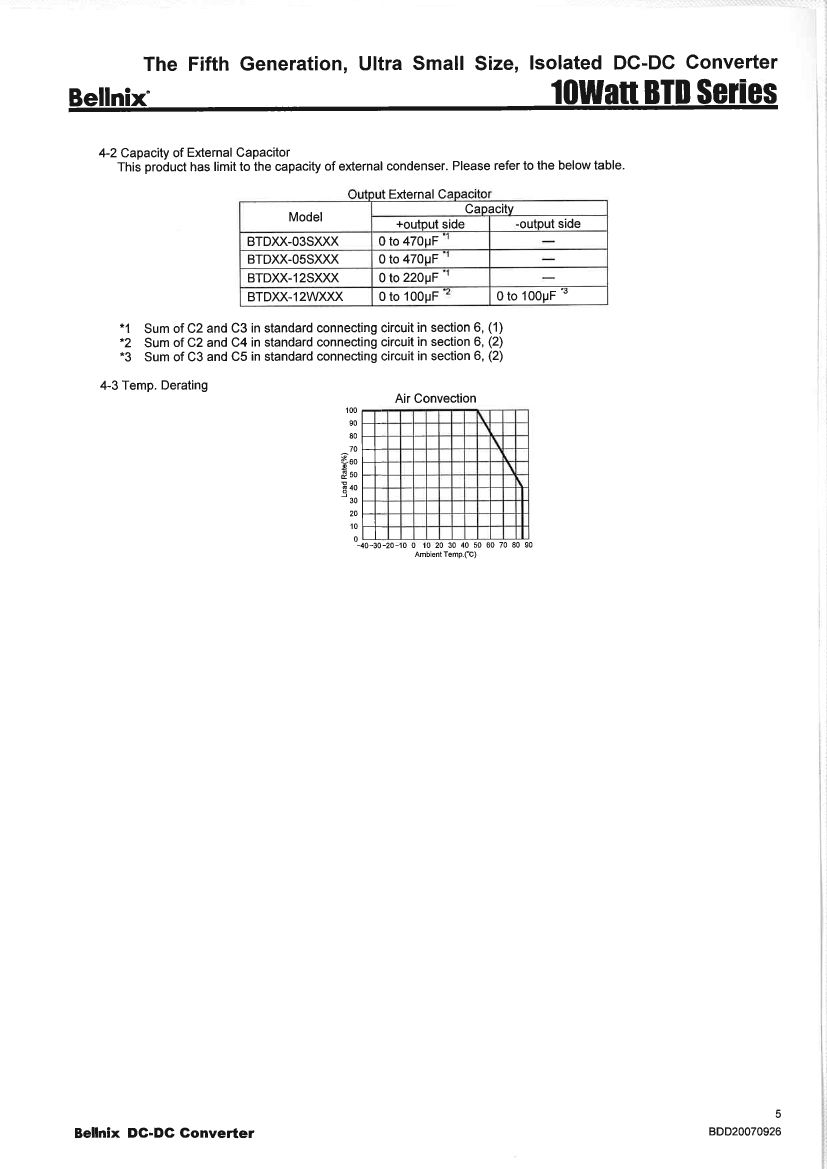

Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C

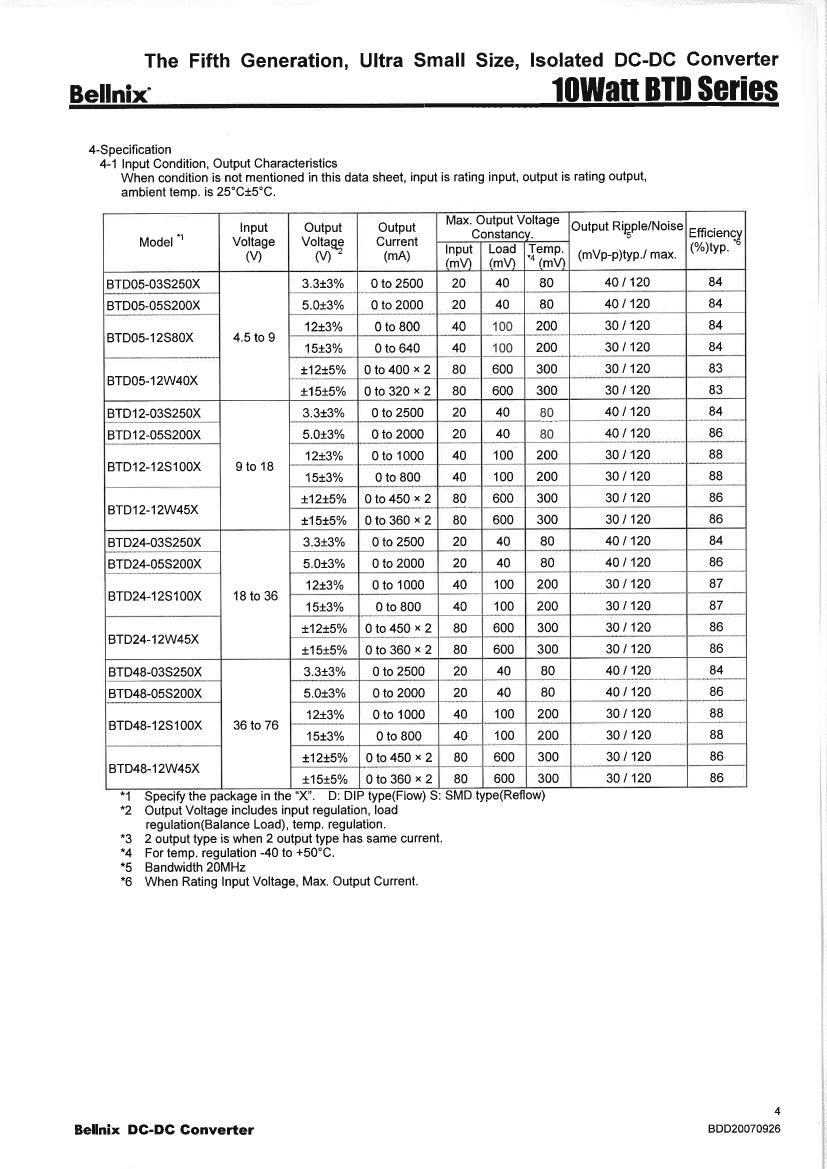

Maximum output voltage	12.36 V
Minimum output voltage	11.64 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	8.8 mm
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Maximum total power output	12 W
Fine-tuning/adjustable output	YES
width	22.6 mm
Base Number Matches	1
