30-9510-77 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 30-9510-77

30-9510-77: DescriptionCable Assembly, 9 Conductor(s), 28AWG, Communication Cable, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size85KB，1 Pages; ManufacturerVertiv; Environmental Compliance

Download Datasheet Parametric View All

30-9510-77 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30-9510-77	-	-	View	Buy Now

30-9510-77 Overview

Cable Assembly, 9 Conductor(s), 28AWG, Communication Cable, ROHS COMPLIANT

30-9510-77 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ConnectorSide1	DB9
ConnectorSide2	DB9
Connector bracket type	CABLE ASSEMBLY
length	3.048 mm
Number of conductors	9
shield	YES
Wire gauge	28 AWG
Wire and Cable Names	COMMUNICATION CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

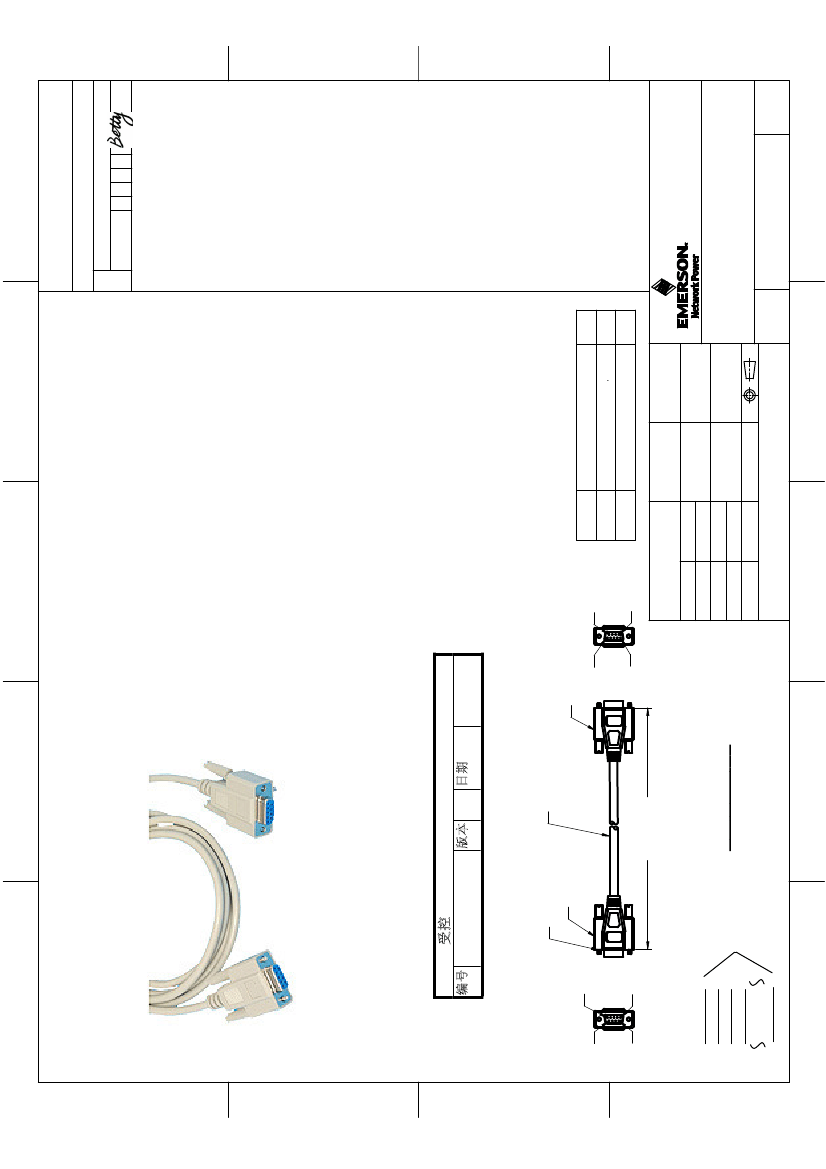

DRAWING NO.

30-9506-77CUST(SEE TABLE I)

REVISIONS

Description:

See Table I

OFFICIAL RELEASE

08-05-09

09:45:29

+08'00'

2009.09.

See Table I

DB9 Data Extension Cable

9 Conductor,28 AWG,Shielded

Crimp Tool:

N/A

Impedance:

Frequency Range: N/A

Material:

Cable

DB9

RoHS Compliance: Yes

Technical Detail:

N/A

Female

9 Conductor,28 AWG,Shielded

Application:

Part No:

CONTROLLED DOCUMENT

P/N

30-9506-77-CUST

Rev

Rel'd Date

SEP 14,09

CABLE 9 CONDUCTOR,28AWG,SHIELDED

DB9 FEMALE

PIN1

PIN5

PIN6

PIN9

TABLE I

P/N

Description

30-9506-77 DATA EXTN CABLE,DB9F-F 6FT

30-9510-77 DATA EXTN CABLE,DB9F-F 10FT

Length

6FT

10FT

4-40 SCREW

DB9 FEMALE

PIN1

PIN6

PIN9

PIN5

"LENGTH"

CUSTOMER COPY

DATE

08-05-09

DECIMALS

X.X

X.XX

ANGLES

CHECKED BY

DATE

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

BETTY.YU

PIN ASSIGNMENT

Connectivity

Solutions

BETTY.YU

THOMAS

U/M

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

08-05-09

APPROVED BY DATE

08-05-09

TITLE

1 TO 9

STRAIGHT

THROUGH

DIM OUTLINE

0.5

0.3

0.1

0.5

DATA EXTN CABLE,DB9F-F,XXFT

(SEE TABLE I)

SHEET

1 OF 1

DRAWING NO.

SIZE

30-9506-77-CUST

(SEE TABLE I)
