BZX84C2V4W - BZX84C39W
200mW SURFACE MOUNT ZENER DIODE
SPICE MODELS: BZX84C2V4W BZX84C2V7W BZX84C3V0W BZX84C3V3W BZX84C3V6W BZX84C3V9W BZX84C4V3W BZX84C4V7W BZX84C5V1W
BZX84C5V6W BZX84C6V2W BZX84C6V8W BZX84C7V5W BZX84C8V2W BZX84C9V1W BZX84C10W BZX84C11W BZX84C12W BZX84C13W BZX84C15W
BZX84C16W BZX84C18W BZX84C20W BZX84C22W BZX84C24W BZX84C27W BZX84C30W BZX84C33W BZX84C36W BZX84C39W
Features
·
·
·
·
·
Planar Die Construction
200mW Power Dissipation
Zener Voltages from 2.4V - 39V
Ultra-Small Surface Mount Package
Available in Lead Free/RoHS Compliant Version (Note 6)
B C
A
SOT-323
Dim
A
B
C
D
E
G
H
K
M
Min
0.25
1.15
2.00
0.30
1.20
1.80
0.0
0.90
0.25
0.10
0°
Max
0.40
1.35
2.20
0.40
1.40
2.20
0.10
1.00
0.40
0.18
8°
Mechanical Data
·
·
·
·
·
·
·
·
Case: SOT-323
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Also Available in Lead Free Plating (Matte Tin Finish
annealed over Alloy 42 leadframe). Please see Ordering
Information, Note 5, on Page 1
Polarity: See Diagram
Marking: Date Code and Type Code, See Page 2
Type Code: See Page 2
Weight: 0.006 grams (approximate)
0.65 Nominal
G
H
J
K
L
M
a
J
D
F
L
All Dimensions in mm
Maximum Ratings
Forward Voltage
Power Dissipation (Note 1)
@ T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
200
625
-65 to +150
Unit
V
mW
K/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Ordering Information
Device
(Note 4)
Packaging
SOT-323
Shipping
3000/Tape & Reel
(Type Number)-7*
* Add “-7” to the appropriate type number in Table 1 from Sheet 2 example: 6.2V Zener = BZX84C6V2W-7.
Notes:
1.
2.
3.
4.
5.
6.
Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration test pulse used to minimize self-heating effect.
f = 1KHz.
For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
For Lead Free/RoHS Compliant version part number, please add "-F" suffix to the part number above. Example: BZX84C6V2W-7-F.
No purposefully added lead.
DS30066 Rev. 9 - 2
1 of 3
www.diodes.com
BZX84C2V4W - BZX84C39W
ã
Diodes Incorporated
Electrical Characteristics
Type
Number
Marking
Code
Nom (V)
BZX84C2V4W
BZX84C2V7W
BZX84C3V0W
BZX84C3V3W
BZX84C3V6W
BZX84C3V9W
BZX84C4V3W
BZX84C4V7W
BZX84C5V1W
BZX84C5V6W
BZX84C6V2W
BZX84C6V8W
BZX84C7V5W
BZX84C8V2W
BZX84C9V1W
BZX84C10W
BZX84C11W
BZX84C12W
BZX84C13W
BZX84C15W
BZX84C16W
BZX84C18W
BZX84C20W
BZX84C22W
BZX84C24W
BZX84C27W
BZX84C30W
BZX84C33W
BZX84C36W
BZX84C39W
Notes:
@ T
A
= 25°C unless otherwise specified
Zener Voltage
Range (Note 7)
V
Z
@ I
ZT
Min (V)
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
Max (V)
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
I
ZT
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
2.0
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
Maximum Zener Impedance
(Note 8)
Z
ZT
@ I
ZT
Z
ZK
@ I
ZK
W
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
Maximum
Temperature
Reverse Current Coefficient of
(Note 7)
Zener Voltage
@ I
ZT
= 5mA
@V
R
I
R
(mV/°C)
uA
50
20
20
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
Max
0
0
0
0
0
0
0
0.2
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
KRB
KRC
KRD
KRE
KRF
KRG
KRH
KR1
KR2
KR3
KR4
KR5
KR6
KR7
KR8
KR9
KP1
KP2
KP3
KP4
KP5
KP6
KP7
KP8
KP9
KPA
KPB
KPC
KPD
KPE
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30.0
33.0
36.0
39.0
7. Short duration test pulse used to minimize self-heating effect.
8. f = 1KHz.
Marking Information
XXX = Product Type Marking Code, See Table Above
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
XXX
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
1999
K
Feb
2
2000
L
March
3
2001
M
Apr
4
2002
N
May
5
2003
P
Jun
6
2004
R
Jul
7
2005
S
Aug
8
2006
T
Sep
9
2007
U
Oct
O
2008
V
Nov
N
2009
W
Dec
D
DS30066 Rev. 9 - 2
YM
2 of 3
www.diodes.com
BZX84C2V4W - BZX84C39W
300
50
T
j
= 25°C
C2V7
C3V9
C5V6
C6V8
C3V3
C4V7
P
D
, POWER DISSIPATION (mW)
40
I
Z
, ZENER CURRENT (mA)
C8V2
200
30
20
100
10
Test Current I
Z
5.0mA
0
0
100
T
A
, AMBIENT TEMPERATURE, (°C)

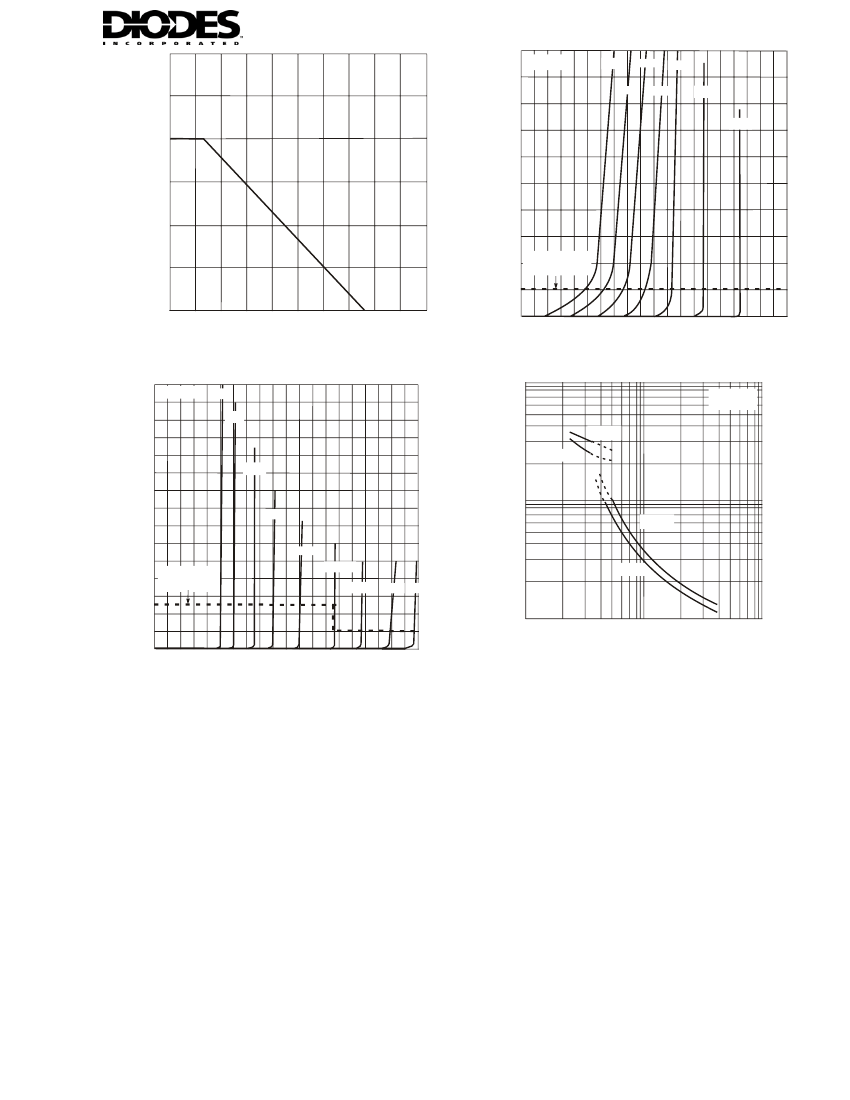

Fig. 1. Power Derating Curve
200
0
0
1
3
4
5
6
8
9
7
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Zener Breakdown Characteristics
T
j
= 25 °C
2
10
30
T
j
= 25°C
C10
C12
1000
I
Z
, ZENER CURRENT (mA)
C
T
, TOTAL CAPACITANCE (pF)
V
R
= 1V
V
R
= 2V
20
C15
100
V
R
= 1V
C18
10
Test current I
Z
5mA
C22
C27
C33
C36 C39
V
R
= 2V
10
1
10
100
0
0
10
20
30
V
Z
, ZENER VOLTAGE (V)
Fig. 3. Zener Breakdown Characteristics
40
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 4. Total Capacitance vs Nominal Zener Voltage
DS30066 Rev. 9 - 2
3 of 3
www.diodes.com
