BR2262S: DescriptionSingle Color LED, Red, Clear Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size256KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

BR2262S Overview

Single Color LED, Red, Clear Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

BR2262S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	CLEAR PALE RED
Nominal luminous intensity	20.0 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.3 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	1.65 mm
surface mount	NO
perspective	70 deg
Base Number Matches	1

Preview

Download Datasheet

View All

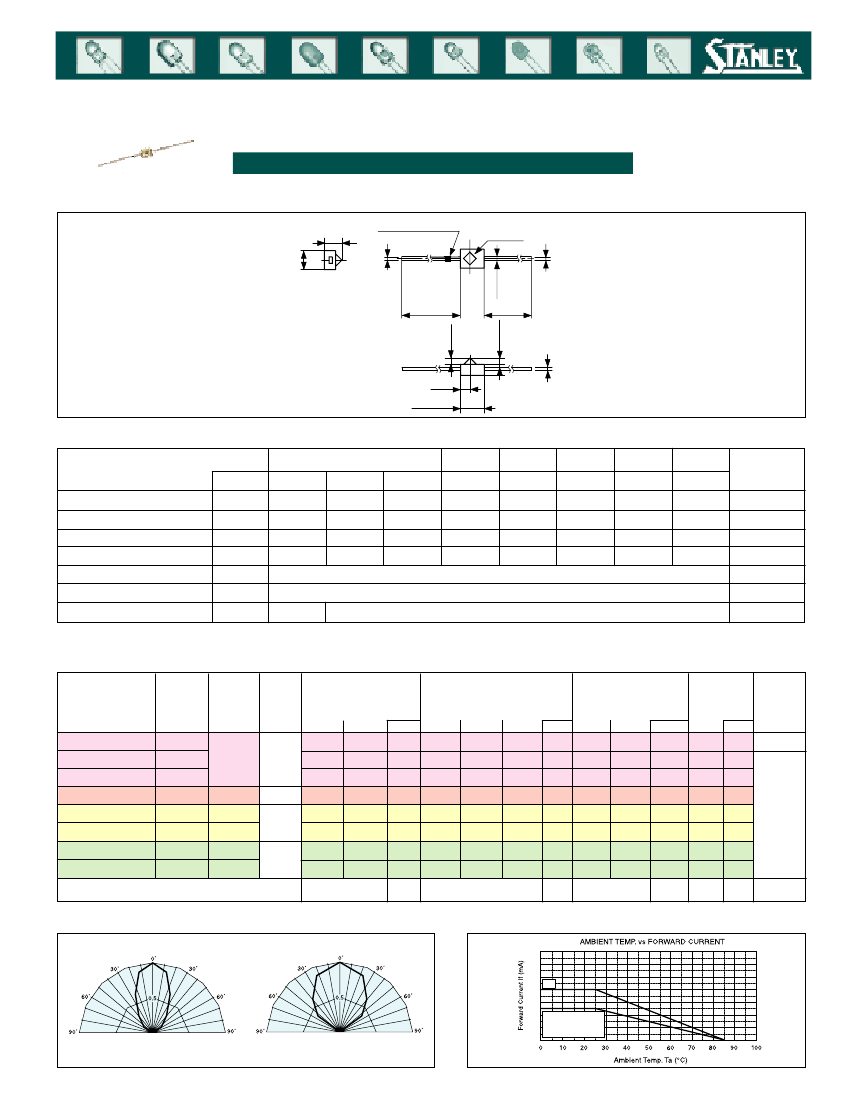

SINGLE COLOR LED

1.6mm Round Shape

2262S / 2272S Series

Outline Dimensions

2.3

+0.2

-0.1

2.0

0.2

Cathode mark

0.5

0.1

1.65

0.5

0.1

1.1

0.65MAX.

9MIN.

0.9

0.1

2.5

0.2

9MIN.

1.5

0.1

0.2

0.05

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Red

Orange

Yellow

Yellow Green

Green

Pure Green

(Ta=25°C)

300

MPR

MVR

MAA

MAY

MPY

MPG

MBG

Units

°C

mA/°C

(Ta=25°C)

Symbol

Topr

Tstg

-30 to +85

-30 to +100

0.42

0.67

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material Emitted Lens

Color Color*

GaAlAs

GaP

GaAsP

GaP

Units

Luminous

Intensity

MIN.

TYP

*2262S lens is clear and 2272S lens is diffused

**The viewing angle is an average and will vary by color

Peak

TYP

Spectral Line

Dominant Half Width

TYP

Wavelength

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle**

1/2

)

MAX.

100

µA

70/100˚

BR2262S/2272S

MPR2262S/2272S

MVR2262S/2272S

MAA2262S/2272S

MAY2262S/2272S

MPY2262S/2272S

MPG2262S/2272S

MBG2262S/2272S

Red

Pastel

Red

Pastel

Orange

Yellow

Yellow Green

Green

Pure Green

Pastel

Yellow

Pastel

Green

10/8

0.8/0.6

8/6

8/5

12/8

8/6

4/2

20/16

1.6/1.2

16/12

16/10

24/16

16/12

8/4

660

700

630

605

580

570

560

555

647

635

624

606

590

572

567

558

100

1.7

2.1

2.0

2.2

2.1

2.0

2.8

60/90˚

mcd

Deg.

Spatial Distribution (x)

Operation Current Derating Chart

2262S

2272S

*Spatial distribution is viewed as a typical illustration and will vary by color

MPR, MVR, MAA,

MAY, MPY, MPG,

MBG

BR2262S Related Products

	BR2262S	MAA2262S
Description	Single Color LED, Red, Clear Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, Clear Pale Orange, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown
color	RED	ORANGE
Configuration	SINGLE	SINGLE
Maximum forward current	0.04 A	0.025 A
Lens type	CLEAR PALE RED	CLEAR PALE ORANGE
Nominal luminous intensity	20.0 mcd	16.0 mcd
Installation features	AXIAL MOUNT	AXIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.3 mm	2.3 mm
method of packing	BULK	BULK
peak wavelength	660 nm	605 nm
shape	ROUND	ROUND
size	1.65 mm	1.65 mm
surface mount	NO	NO
perspective	70 deg	60 deg
Base Number Matches	1	1
