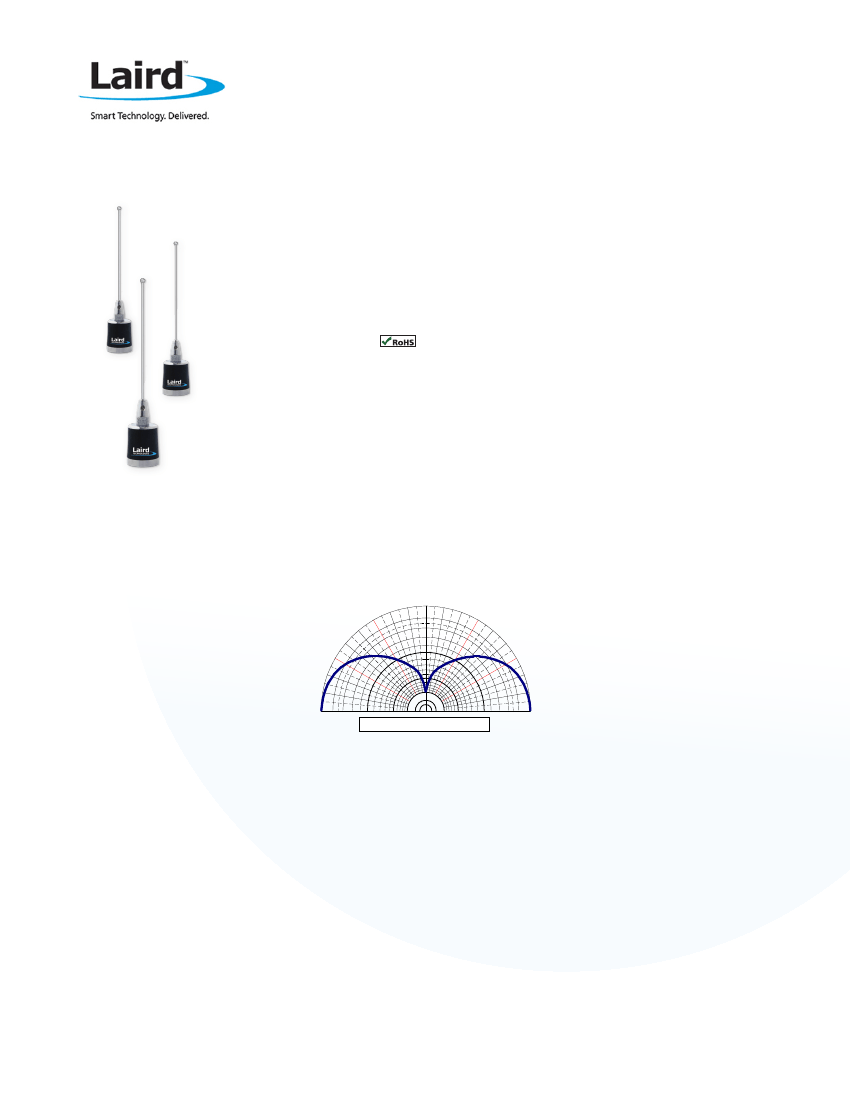

Mobile load Coil antenna
Standard B1443
PreMiuM Mobile load Coil antennas are industry standard
Laird Technologies’ ongoing commitment to refinement in mechanical and electrical
design has resulted in the most technically advanced mobile load coil antennas on the
market. Exclusive features such as stainless steel whips, housings constructed with ABS
material injection molded around a solid brass insert, and gold plated push pin contacts
make Laird Technologies the obvious choice for quality and long lasting value for
demanding mobile radio communications.
Features
• High performance mobile antenna
• Special UV treated radome,
resists sun damage
• Easy installation with optional
NMO Mounts
• 100% tested on a network analyzer
Markets
• Public safety
• Transportation
• Utility
• Military mobile
antenna Patterns
350°
°
340
10°
33
0°
20°
0
-2
-4
-6
-8
-10
32
0°
30
40
°
°
50
°
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
31
0°
30 0
290
°
°
280°
270°
60°
70°
-20
-30
-40
-50
80°
90°
Normalized to 3dBi
Elevation Pattern
Mobile load Coil antenna
Standard B1443
sPeCiFiCations
ELECTRICAL
Frequency range
VSWR
Nominal gain
Maxmium power
Nominal impedance
Polarization
Pattern
Half-power beamwidth
(Elevation° x Azimuth°)
Coaxial cable length & type
Terminations
Noise suppressor
144-174 MHz
< 2.0:1 Max
3 dBi
100 W
50
Ω
Vertical
Omnidirectional
70° x 360°
None
NMO
BlackHawk NS1535 1-35 VOLT, 15 amp
Noise suppressor (Sold Separately)
MECHANICAL
Color
Height
Diameter
Weight
Rated wind velocity
Rated wind velocity (with 0.5” radial ice)
Lateral thrust @ 125mph wind velocity
Wind resistance
Mounting information (sold separately)
B1443 - Black with chrome
BB1443 - Black
BW1443 - White
See chart
1.45”
< 0.5 lb
125mph (210kph)
85mph (137kph)
57lbs (26kg)
0.02 sq. ft.
NMO mountable
b1443 Cutting CHart
FREQUENCY
144 MHz
146 MHz
148 MHz
150 MHz
152 MHz
154 MHz
156 MHz
158 MHz
160 MHz
WHIP LENGTH
48-1/8”
47-1/4”
46-3/8”
45-1/2”
44-7/8”
43-3/4”
42-7/8”
42-1/8”
41-1/4”
FREQUENCY
162 MHz
144 MHz
146 MHz
156 MHz
158 MHz
160 MHz
162 MHz
164 MHz
WHIP LENGTH
40-1/2”
48-1/8”
47-1/4”
16”
15-5/8”
15-3/8”
15”
14-7/8”
ANT-DS-B1443 111114
Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and
application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or
suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any
kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2014
Laird Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trade marks or registered trade marks of Laird Inc. or an affiliate company thereof.
Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.
