Surge arrester
3-electrode arrester
B88069X9911B502
T33-A230X8F1
Features
Very small size
Fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Reliable failsafe device
RoHS-compatible
Electrical specifications
DC spark-over voltage
1) 2) 4)
Applications
Branch exchange (MDF)
Line protection
Station protection
230
±
20
< 600
< 500
< 700
< 600
10
30
10
10
> 10
< 1.5
< 0.2
~ 10
~1
~ 50
~ 1.4
-40 ... +90
40/ 90/ 21
230 YY O
230
YY
O
- Nominal voltage
- Year of production
- Non radioactive
V
%
V
V
V
V
A
A
kA
kA
GΩ
pF
µs
V
A
V
g
°C
Impulse spark-over voltage
4)
at 100 V/µs - for 99 % of measured values
- typical values of distribution
at 1 kV/µs
- for 99 % of measured values
- typical values of distribution
50 Hz; 1 s
5)
50 Hz; 0.18 s (9 cycles)
5)
8/20 µs
5)
8/20 µs
5)
Service life
10 operations
1 operation
10 operations
[5x (+) & 5x (-)]
1 operation
Insulation resistance at 100 V
DC 4)
Capacitance at 1 MHz
4)
Transverse delay time
3)
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through tip respectively ring electrode.
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845
The arrester failsafe mechanism contains an insulating foil with a melting temperature of 260 °C.
Arrester failsafe works at temperatures > 260 °C. The arrester has to be fixed mechanically, if the arrester is contacted by
soldering and if the solder temperature is less than 260 °C.
PPD AB PD / PPD AB PM
Issue 02 / 2011-03-15
2)
1)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Surge arrester
3-electrode arrester
B88069X9911B502
T33-A230X8F1

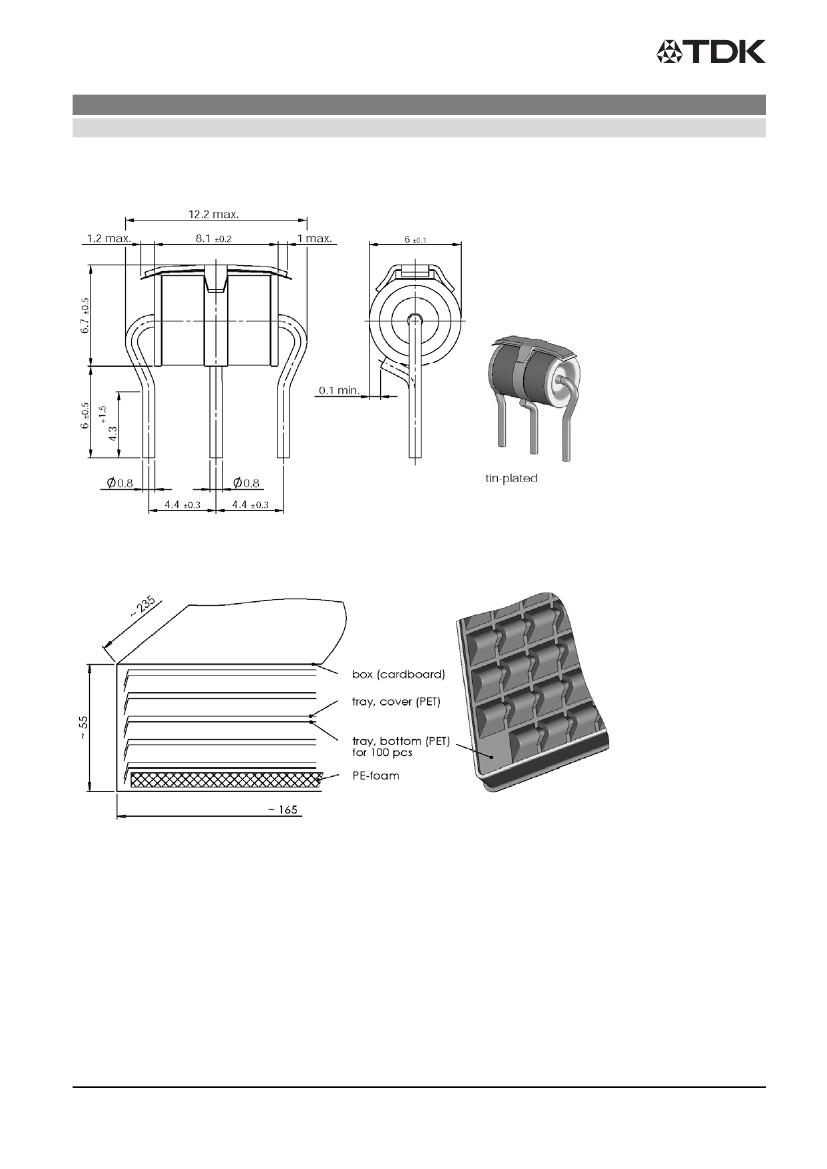

Dimensional drawing in mm
Ordering code and packing advice
B88069X9911B502 = 500 pcs on trays
Cautions and warnings
The short-circuit spring does not trigger until 260 °C is reached depending on the sensor material.
Care must be taken to limit the thermal radiation onto adjacent parts to safe values.
If the contacts of the surge arresters are defective, current stress can lead to the formation of
sparks and loud noises.
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
Issue 02 / 2011-03-15
