BOX9318: DescriptionVCO, 4000 MHz - 5000 MHz; CategoryPassive components oscillator; File Size117KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BOX9318 Overview

VCO, 4000 MHz - 5000 MHz

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum control voltage	20 V
Minimum control voltage
Modulation sensitivity	30 MHz/V
Maximum operating frequency	5000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	5 dBm
power change	2 dB
Maximum slew rate	30 mA
Nominal supply voltage	15 V
Base Number Matches	1

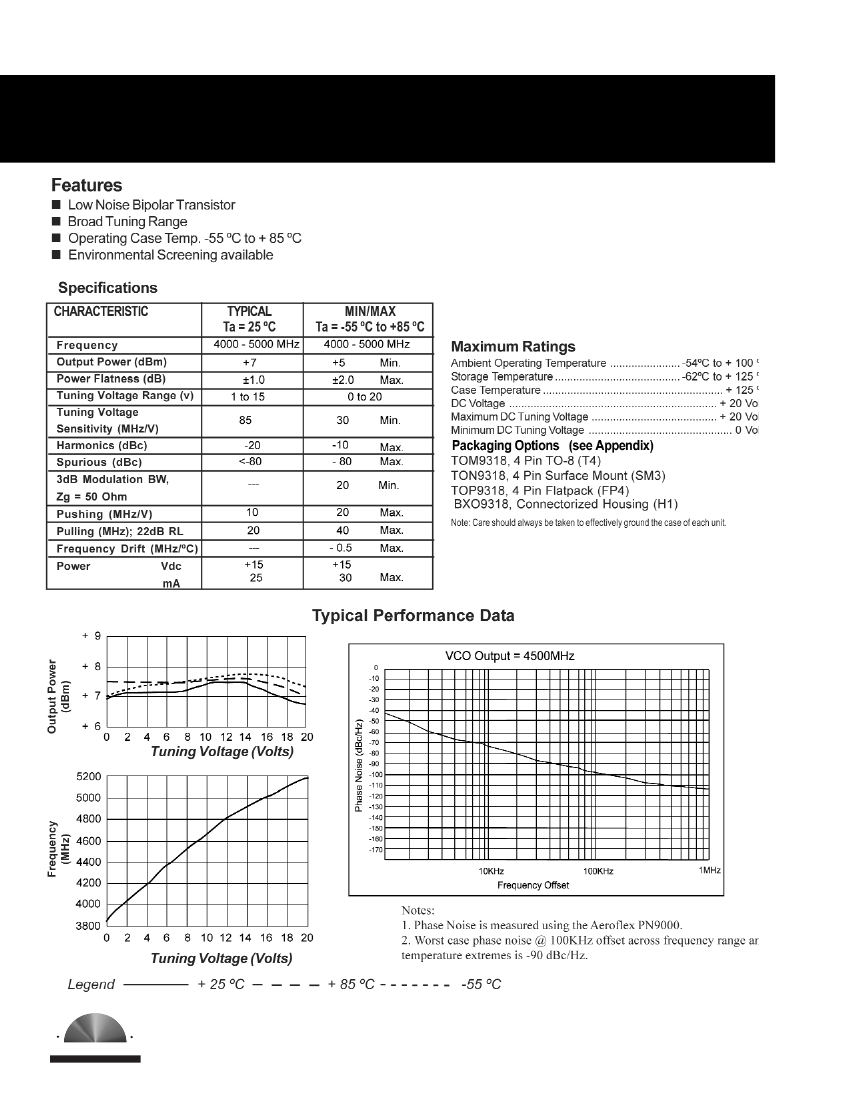

Voltage Controlled Oscillator

Low Noise Bipolar Transistor

Model TOM9318

4000 to 5000 MHz

SP

ECTRU

INC.

MICROWAVE

752

A Spectrum Control Business

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

M

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

	BOX9318	TOM9318	TON9318	TOP9318
Description	VCO, 4000 MHz - 5000 MHz	VCO, 4000 MHz - 5000 MHz	VCO, 4000 MHz - 5000 MHz	VCO, 4000 MHz - 5000 MHz
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum control voltage	20 V	20 V	20 V	20 V
Modulation sensitivity	30 MHz/V	30 MHz/V	30 MHz/V	30 MHz/V
Maximum operating frequency	5000 MHz	5000 MHz	5000 MHz	5000 MHz
Minimum operating frequency	4000 MHz	4000 MHz	4000 MHz	4000 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C	-54 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	5 dBm	5 dBm	5 dBm	5 dBm
power change	2 dB	2 dB	2 dB	2 dB
Maximum slew rate	30 mA	30 mA	30 mA	30 mA
Nominal supply voltage	15 V	15 V	15 V	15 V
Base Number Matches	1	1	1	-
