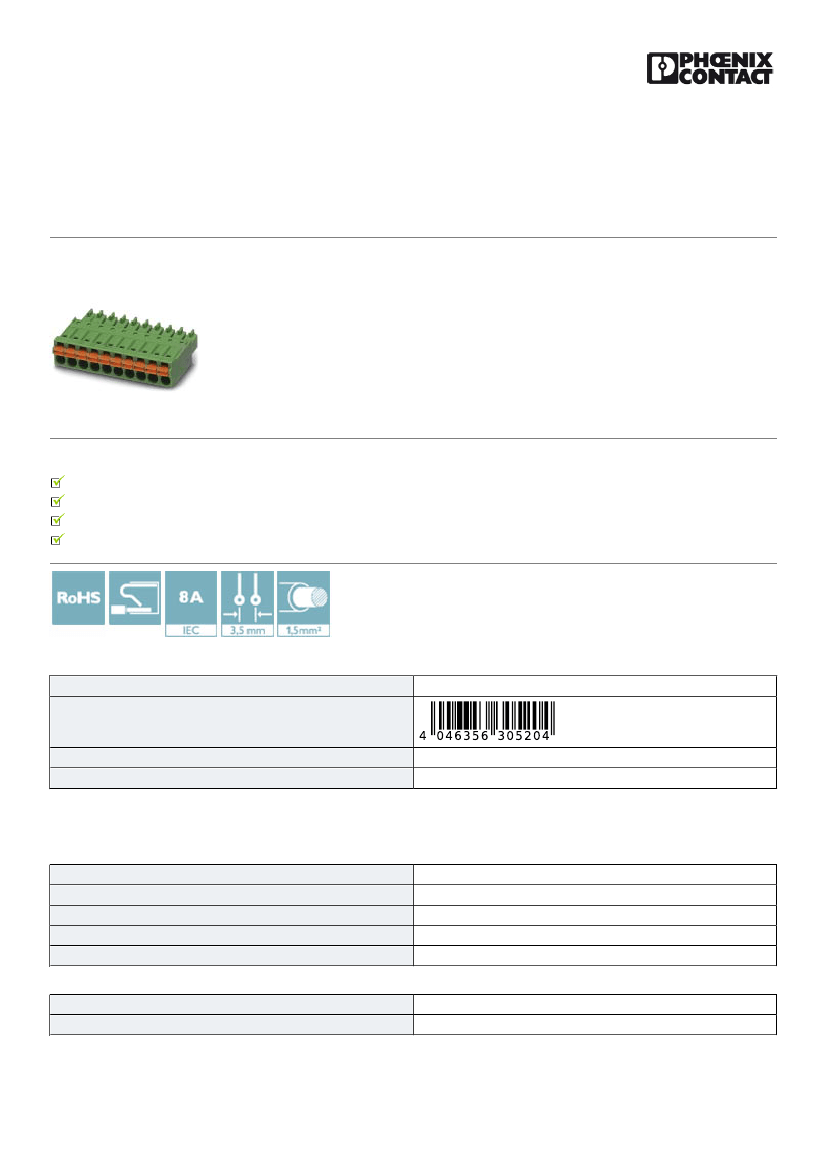

Printed-circuit board connector - FMC 1,5/ 8-
ST-3,5GY1CN3BD1-8NZ - 1743061
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, number of positions: 8, pitch: 3.5 mm, connection method: Push-in
spring connection, color: gray, contact surface: Tin
The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356305204
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
22.9 mm
28.75 mm
7.75 mm
3.5 mm
24.5 mm
General
Range of articles
Number of positions
FMC 1,5/..-ST
8
01/15/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1743061
Printed-circuit board connector - FMC 1,5/ 8-
ST-3,5GY1CN3BD1-8NZ - 1743061
Technical data
General
Connection method
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Push-in spring connection
160 V
EN-VDE
8A
1.5 mm²
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.25 mm²
0.75 mm²
24
16
24
16
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Specifications for ferrules
Recommended crimping pliers
Ferrules without insulating collar, according to DIN 46228‑1
1212034 CRIMPFOX 6
Cross section: 0.25 mm²; Length: 5 mm ... 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
272607xx
01/15/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1743061
Printed-circuit board connector - FMC 1,5/ 8-
ST-3,5GY1CN3BD1-8NZ - 1743061
Approvals
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40011723
EAC
B
150 V
8A
24-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
C
50 V
8A
24-16
Phoenix Contact 2019 © - all rights reserved
